Shirt & Garment Part Preparation

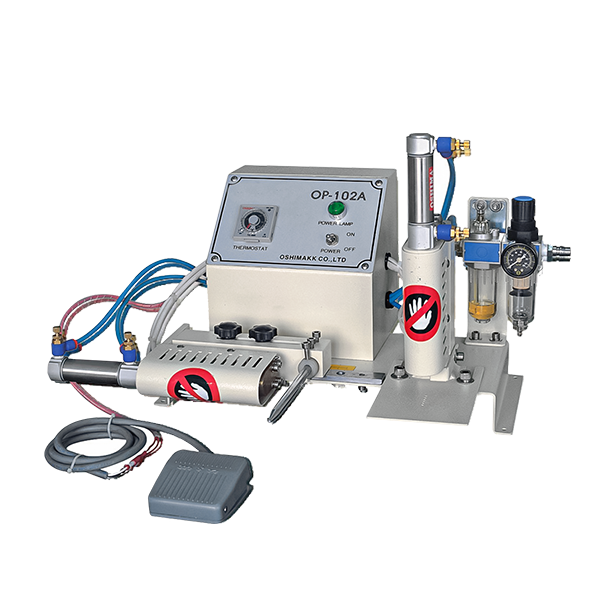

Electric Dot Pin Marker OP-102A
Permanent collar marks for shirt production.
- Features
- Electric pin marking machine for shirt collars
- Permanent and durable collar marking
- Fully adjustable marking distance
- Equipped with a PID temperature controller for stable marking temperature control
- Double-needle design for dual marking
- Average capacity of 350 pieces per hour
- Suitable for high-end shirt production
Description
OP-102A is designed for marking shirt collars during garment production. It creates permanent pin marks on the collar area for size identification and collar positioning. The marking distance can be adjusted based on production requirements. The PID temperature controller applies controlled heat during marking, while the double-needle structure creates two marks for easier recognition during the shirt manufacturing process.
Specifications
| Model | OP-102A |
|---|---|
| Model | OP-102A |
| Power supply | 1P / 220V |
| Motor (kW) | 0.2 |
| Air pressure (MPa) | 0.5 |
| Dimensions L × W × H (mm) | 420 × 350 × 260 |
| Packaging size L × W × H (mm) | 580 × 510 × 490 |
| N.W / G.W (kg) | 16 / 25 |
*Design and specifications subject to change without prior notice.
