Shirt & Garment Part Preparation

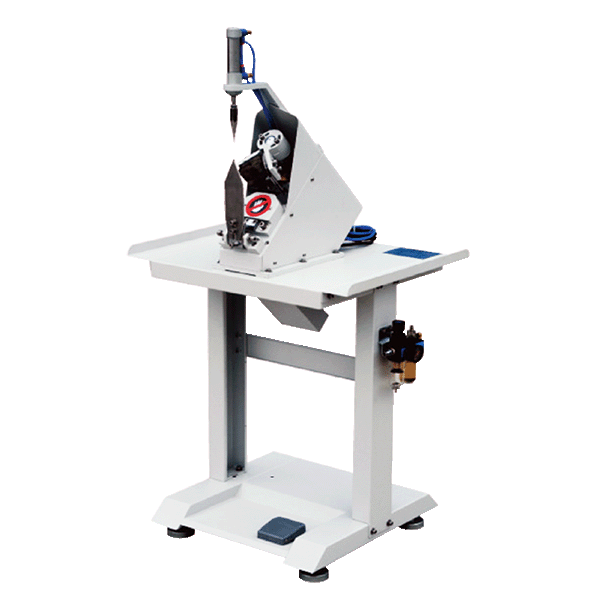

Collar Trimming and Turning OP-120T
Trim first, turn the collar cleanly.
- Features
- Manual shirt collar trimming and turning machine
- Trim-before-turn operation
- Adjustable blade angle for different collar shapes
- Production capacity of 350–400 pieces per hour
- Simple operation without highly skilled labor
- Requires OP-535 / OP-545 collar pressing machine for final collar shaping
- Optional 90° or 120° blade angle
Description
OP-120T is used for shirt collar edge trimming and turning before final collar shaping. The machine trims the collar first and then turns it, preparing the collar piece for the next pressing process.
The adjustable blade can be set according to different collar shapes and cutting angles. For complete pointed-collar forming, OP-120T should be used together with OP-535 / OP-545 collar pressing machine.
Specifications
| Model | OP-120T |
|---|---|
| Model | OP-120T |
| Power supply | 1P / 220V |
| Use air pressure (MPa) | 0.5 |
| Dimensions L × W × H (mm) | 585 × 455 × 1225 |
| Packing volume L × W × H (mm) | 730 × 630 × 880 |
| N.W / G.W (kg) | 35 / 55 |
*Design and specifications subject to change without prior notice.
