Shirt & Garment Part Preparation

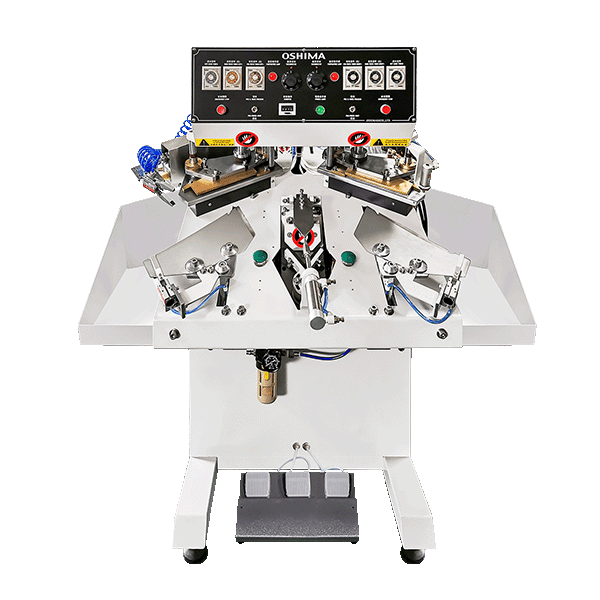

Collar Trim, Turn & Sharpen OP-565III
Trim, turn, and press collars in one machine.
- Features
- Fully automatic shirt collar trimming, turning, and pressing machine
- Combines OP-120T trimming / turning and OP-535 collar pressing functions
- Automatic feeding and collection system
- One-stage or two-stage pressing options
- Quick mold change design
- Cooling function to reduce overheating marks
- Production capacity of 180–200 pieces per hour
- Simple operation without highly skilled labor
Description
OP-565III is an integrated shirt collar processing machine that combines collar edge trimming, collar turning, and collar pressing in one system.
The machine is suitable for shirt collar production that requires a complete process after collar sewing. It supports automatic feeding and collection, and the pressing process can be adjusted to one-stage or two-stage pressing according to fabric type.
The mold can be changed quickly for different collar requirements. When the temperature becomes too high, the cooling function helps reduce the risk of heat marks on the collar piece.
Specifications
| Model | OP-565III |
|---|---|
| Model | OP-565III |
| Power supply | 1P / 220V |
| Heater (kW) | 1.6 |
| Use air pressure (MPa) | 0.5 |
| Temperature (°C) | Room temperature–180 |
| Dimensions L × W × H (mm) | 870 × 940 × 1200 |
| Packing volume L × W × H (mm) | 1030 × 900 × 1450 |
| N.W / G.W (kg) | 150 / 190 |
*Design and specifications subject to change without prior notice.
