Shirt & Garment Part Preparation

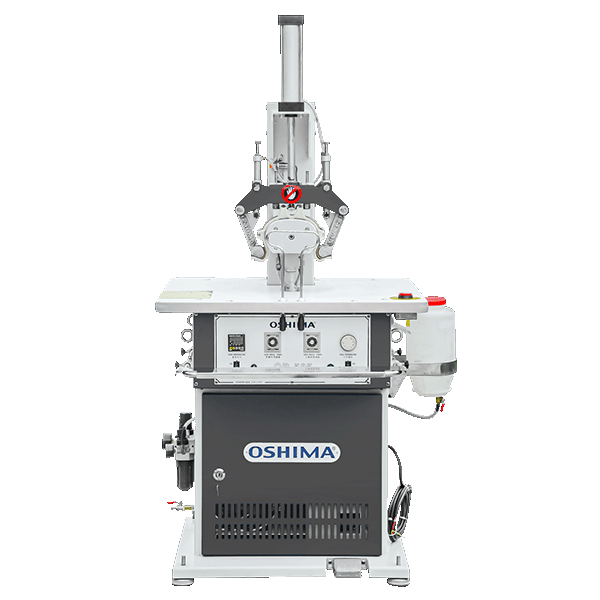

Collar Creaser OP-585AB
Hot-and-cold collar band forming.
- Features
- Upgraded shirt collar band forming machine
- Heat forming with forced cooling system
- Automatic temperature control
- Designed for collar band paper shaping before packing
- Suitable for different collar band styles
- Production capacity of 200–300 pieces per hour
- Used for finished shirt packaging preparation
Description
OP-585AB is the upgraded version of the shirt collar band forming machine for finished-shirt packaging. It is used to shape collar band paper into a curved form before packing. Compared with the standard heat-forming model, OP-585AB adds a forced cooling system after heating. The machine can be applied to different collar band styles and garment packaging requirements.
Specifications
| Model | OP-585AB |
|---|---|
| Model | OP-585AB |
| Power supply | 1P / 220V |
| Heater (kW) | 0.6 |
| Use air pressure (MPa) | 0.5 |
| Temperature (°C) | Room temperature–180 |
| Dimensions L × W × H (mm) | 950 × 750 × 1670 |
| Packing volume L × W × H (mm) | 1030 × 830 × 1820 |
| N.W / G.W (kg) | 170 / 220 |
*Design and specifications subject to change without prior notice.
