Shirt & Garment Part Preparation
Point Collar Shaping OP-535/545
Sharp collar points, semi-auto or auto.
- Features
- Designed for shirt collar point pressing
- Production capacity of 220–250 pieces per hour
- One-stage or two-stage pressing options
- Automatic temperature and timer control
- Standard mold included; custom mold available by required size
- Designed to work with OP-120T collar trimming and turning machine
Description
OP-535 and OP-545 are used for pointed shirt collar pressing after collar trimming and turning. The machines help shape the collar point and prepare the collar for formal shirt production.

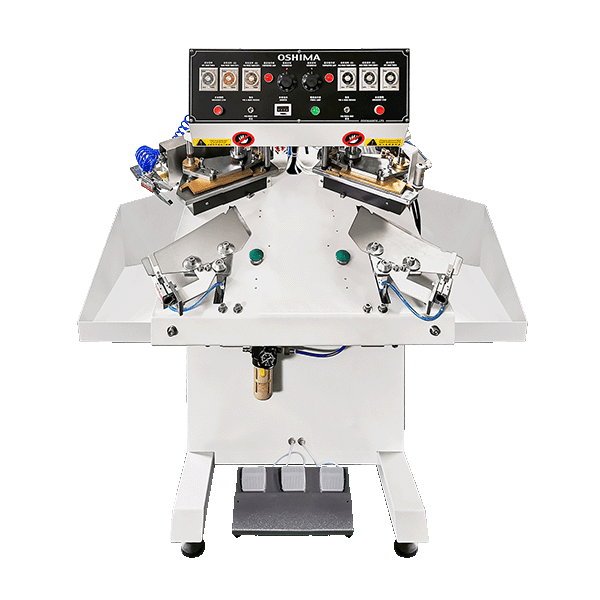

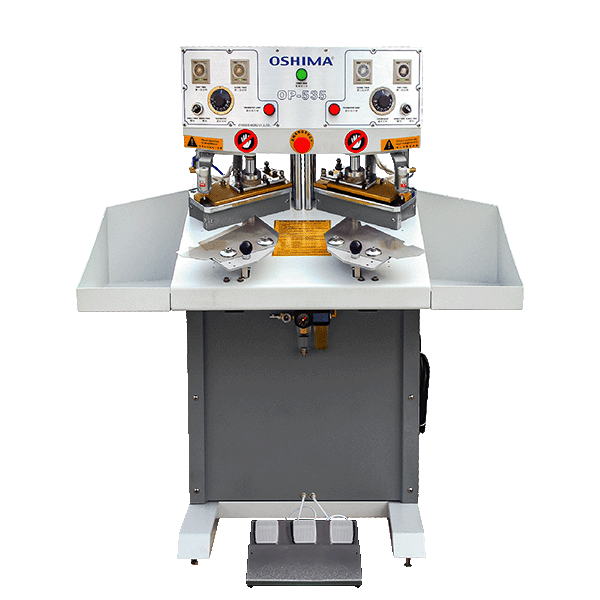

OP-535 is the semi-automatic model. The operator places the collar piece onto the mold, adjusts the piece manually, and controls the pressing process. OP-545 is the automatic model. After the operator places the collar piece onto the mold, the clamp holds the piece and completes the pressing process automatically.
Both models support one-stage or two-stage pressing depending on fabric type. A standard mold is included with the machine. If a specific collar size is required, the standard mold can be replaced with a custom mold based on the customer’s size.
Specifications
| Model | OP-535 | OP-545 |
|---|---|---|
| Model | OP-535 | OP-545 |
| Power supply | 1P / 220V | 1P / 220V |
| Heater (kW) | 1.3 | 1.6 |
| Use air pressure (MPa) | 0.5 | 0.5 |
| Temperature (°C) | Room temperature–180 | Room temperature–180 |
| Dimensions L × W × H (mm) | 1045 × 580 × 1225 | 870 × 940 × 1200 |
| Packing volume L × W × H (mm) | 740 × 740 × 1410 | 1030 × 900 × 1450 |
| N.W / G.W (kg) | 115 / 150 | 150 / 190 |
*Design and specifications subject to change without prior notice.
