Shirt & Garment Part Preparation

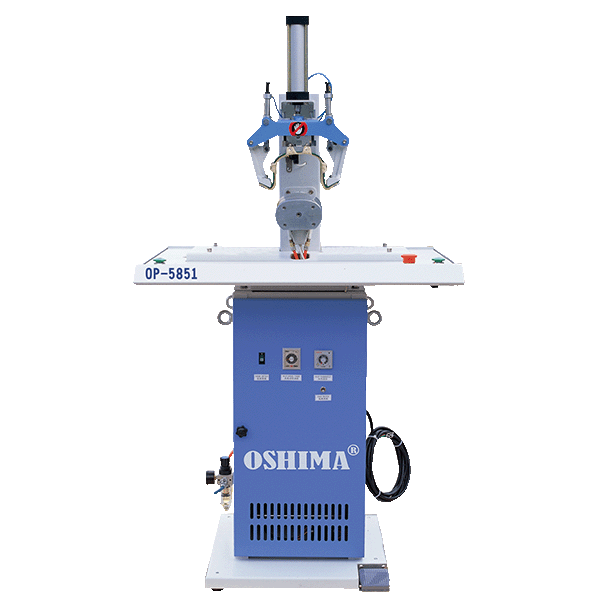

Collar Creaser OP-5851
Heat-formed collar band shape.
- Features
- Shirt collar band forming machine for packing preparation
- Standard version with heat forming
- Adjustable forming time
- Automatic temperature control
- Two-hand safety operation
- Production capacity of 200–300 pieces per hour
- Designed for collar band paper shaping
Description
OP-5851 is used for forming shirt collar band paper before garment packing. It shapes the collar band into a curved form for finished-shirt packaging.
The machine uses heat forming and allows the operator to adjust forming time based on the collar band paper and packaging requirement. The two-hand operation design is used during pressing for operator safety.
Specifications
| Model | OP-5851 |
|---|---|
| Model | OP-5851 |
| Power supply | 1P / 220V |
| Heater (kW) | 0.6 |
| Use air pressure (MPa) | 0.5 |
| Temperature (°C) | Room temperature–180 |
| Dimensions L × W × H (mm) | 950 × 750 × 1670 |
| Packing volume L × W × H (mm) | 930 × 730 × 1800 |
| N.W / G.W (kg) | 130 / 200 |
*Design and specifications subject to change without prior notice.
