Digital Conveyor Needle Detector ON-688CD6S/688CDD6S
Needle detection with data and printing.
- Features
- Metal detection for garments and textiles
- 10-point sensor probe system
- Three sensitivity modes: ΦFe 0.8 / 1.0 / 1.2 mm
- Alarm and conveyor reverse after detection
- Built-in pass, reject, and total counting
- ON-688CD6S single-probe model with printer; ON-688CDD6S dual-probe model with printer
Description
ON-688CD6S / ON-688CDD6S is suitable for pre-shipment needle detection in garment and textile products. It is used to check whether products contain broken needles or ferrous metal contaminants, especially in export inspection, brand quality control, and high-volume garment inspection environments. Compared with handheld inspection tools, a continuous needle detector is more suitable for conveyor-based mass inspection. The touchscreen interface and multilingual display support different operators on site, while automatic calibration every two hours is useful for long-running inspection processes.
Specifications
| Model | ON-688CD6S | ON-688CDD6S |
|---|---|---|
| Detecting Tower | Single tower | Double tower |
| Power Supply | 1P AC220V 50/60Hz | 1P AC220V 50/60Hz |
| Rated Power (kW) | 0.2 | 0.3 |
| Detection Channel Height (mm) | 100 | 100 |
| Detection Channel Width (mm) | 600 | 600 |
| Effective Detection Height (mm) | 90 | 90 |
| Standard Test Block / Iron Ball | ΦFe 0.8 / 1.0 / 1.2 | ΦFe 0.8 / 1.0 / 1.2 |
| Sensitivity Adjustment | 12-level continuous adjustment | 12-level continuous adjustment |
| Conveyor Speed (m/min) | 32 | 32 |
| Detection Method | Magnetic induction | Magnetic induction |
| Alarm Method | Electronic buzzer, conveyor stop or reverse, indicator light | Electronic buzzer, conveyor stop or reverse, indicator light |
| Machine Dimensions L × W × H (mm) |
1720 × 1130 × 960 | 2200 × 1130 × 960 |
| Packing Dimensions L × W × H (mm) |
1780 × 1200 × 1100 | 2280 × 1200 × 1100 |
| N.W. / G.W. (kg) | 280 / 350 | 420 / 510 |

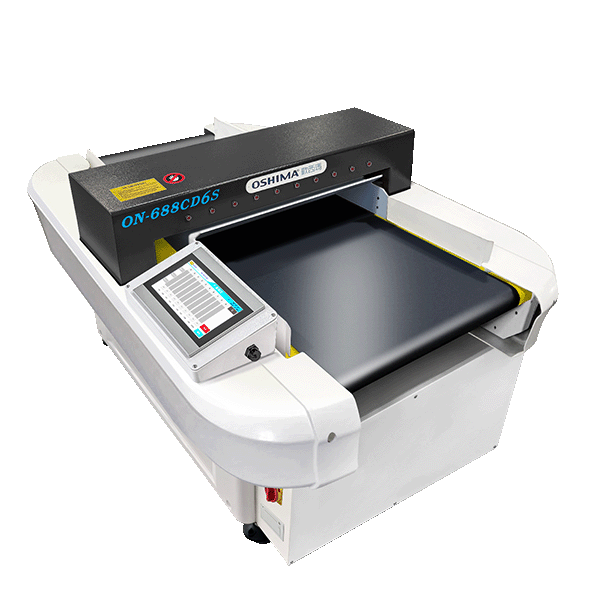

Model: ON-688CD6S
| Detecting Tower | Single tower |
|---|---|
| Power Supply | 1P AC220V 50/60Hz |
| Rated Power (kW) | 0.2 |
| Detection Channel Height | 100 mm |
| Detection Channel Width | 600 mm |
| Effective Detection Height | 90 mm |
| Standard Test Block / Iron Ball | ΦFe 0.8 / 1.0 / 1.2 |
| Sensitivity Adjustment | 12-level continuous adjustment |
| Conveyor Speed | 32 m/min |
| Detection Method | Magnetic induction |
| Alarm Method | Electronic buzzer, conveyor stop or reverse, indicator light |
| Machine Dimensions | 1720 × 1130 × 960 mm |
| Packing Dimensions | 1780 × 1200 × 1100 mm |
| N.W. / G.W. | 280 / 350 kg |

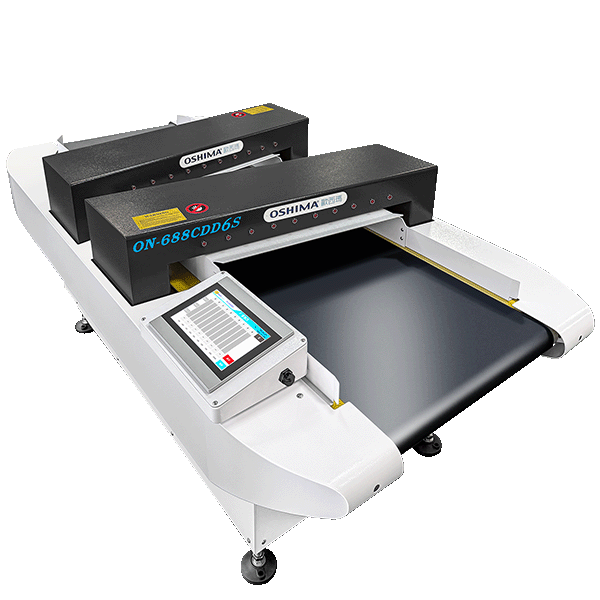

Model: ON-688CDD6S
| Detecting Tower | Double tower |
|---|---|
| Power Supply | 1P AC220V 50/60Hz |
| Rated Power (kW) | 0.3 |
| Detection Channel Height | 100 mm |
| Detection Channel Width | 600 mm |
| Effective Detection Height | 90 mm |
| Standard Test Block / Iron Ball | ΦFe 0.8 / 1.0 / 1.2 |
| Sensitivity Adjustment | 12-level continuous adjustment |
| Conveyor Speed | 32 m/min |
| Detection Method | Magnetic induction |
| Alarm Method | Electronic buzzer, conveyor stop or reverse, indicator light |
| Machine Dimensions | 2200 × 1130 × 960 mm |
| Packing Dimensions | 2280 × 1200 × 1100 mm |
| N.W. / G.W. | 420 / 510 kg |
*Design and specifications subject to change without prior notice.
