Garment & Textile Quality Inspection

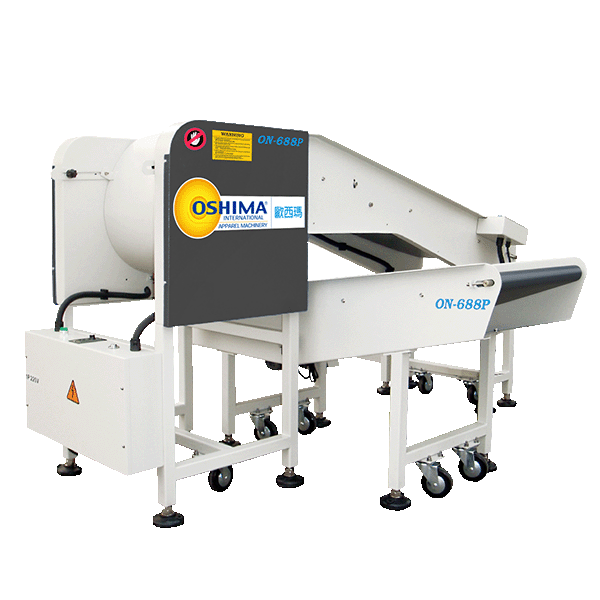

Needle Detector Flipping Device ON-688P
180° turning for double-side inspection.
- Features
- Turning device for needle detector lines
- Turns products 180 degrees
- Supports front and reverse-side inspection
- Commonly used with ON-688CD6S / ON-688CDD6S
- Suitable for continuous needle inspection lines
- Can be connected into automated conveyor workflows
Description
ON-688P is an auxiliary device for needle detection lines, suitable for garment or textile inspection workflows that require front and reverse-side checking. It is usually used together with a continuous needle detector rather than as a standalone machine. In practical use, products can be inspected once, turned 180 degrees by ON-688P, and then moved to the next inspection or conveyor stage. This configuration is suitable for production lines with stricter brand requirements for inspection completeness. ON-688P can be connected with ON-688CD6S / ON-688CDD6S and further integrated with ON-CM barcode reader, ON-RFID reader, or ON-5 sorting system to build an automated inspection and shipment workflow.
Specifications
| Model | ON-688P |
|---|---|
| Power Supply | 1P / 220V |
| Motor (kW) | 0.4 |
| Belt Speed (m/min) | 32 |
| Machine Dimensions L × W × H (mm) |
Machine Unit 1: 2140 × 720 × 1140 Machine Unit 2: 1380 × 640 × 760 |
| Packing Dimensions L × W × H (mm) |
Machine Unit 1: 2240 × 820 × 1320 Machine Unit 2: 1480 × 740 × 940 |
| N.W. / G.W. (kg) | Machine Unit 1: 140 / 210 Machine Unit 2: 80 / 110 |
Model: ON-688P
| Power Supply | 1P / 220V |
|---|---|
| Motor | 0.4 kW |
| Belt Speed | 32 m/min |
| Machine Dimensions | Machine Unit 1: 2140 × 720 × 1140 mm Machine Unit 2: 1380 × 640 × 760 mm |
| Packing Dimensions | Machine Unit 1: 2240 × 820 × 1320 mm Machine Unit 2: 1480 × 740 × 940 mm |
| N.W. / G.W. | Machine Unit 1: 140 / 210 kg Machine Unit 2: 80 / 110 kg |
*Design and specifications subject to change without prior notice.
