Garment & Textile Quality Inspection

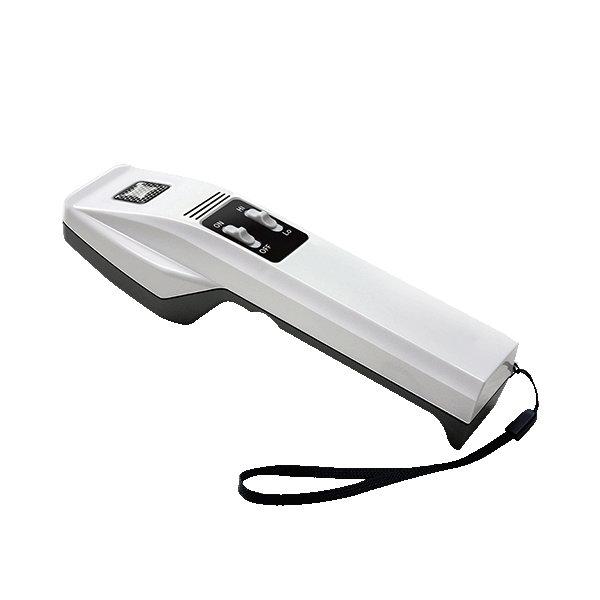

Handheld Needle Detector ON-30
Handheld needle detection for small areas.
- Features
- Handheld needle detector
- Suitable for small pieces, thin items, and spot checks
- Magnetic induction for ferromagnetic metal detection
- One-button high / low sensitivity adjustment
- Light, sound, and vibration alarms
- AA battery-powered for portable use
Description
ON-30 is suitable for small-area inspection, metal positioning, and spot checking after conveyor needle detection. For thin items, small pieces, garment accessories, or products that cannot easily return to a conveyor line, a handheld detector can serve as a supplemental inspection tool. In garment factories, ON-30 is usually used to support continuous needle detection rather than replace it. When a conveyor needle detector finds a metal object, ON-30 can help locate the metal position for further checking. The alarm mode can be selected according to the inspection environment. Vibration can be used in noisier areas, while sound or light alerts can be used in quieter environments.
Specifications
| Model | ON-30 |
|---|---|
| Power Supply | 6F22-9V battery. LED quiescent current < 5mA. Sound and light alarm. Dynamic current < 30mA. Vibration alarm dynamic current < 60mA. Power-saving design. |
| Sensitivity | Close inspection can detect a 0.5 mm iron ball. A 1.2 mm iron ball can be detected up to 10 mm height. Maximum sensitivity can detect a 0.8 mm iron ball. A 0.7 × 20 mm broken needle can be detected up to 50 mm height. |
| Detection Method | Magnetic induction |
| Detection Area (mm) | 70 × 55 |
| Alarm Method | Buzzer, indicator light and vibration alarm |
| Machine Dimensions L × W × H (mm) |
195 × 58 × 50 |
| Packing Dimensions L × W × H (mm) |
250 × 100 × 55 |
| N.W. / G.W. (kg) | 0.212 / 0.35 |
Model: ON-30
| Power Supply | 6F22-9V battery. LED quiescent current < 5mA. Sound and light alarm. Dynamic current < 30mA. Vibration alarm dynamic current < 60mA. Power-saving design. |
|---|---|
| Sensitivity | Close inspection can detect a 0.5 mm iron ball. A 1.2 mm iron ball can be detected up to 10 mm height. Maximum sensitivity can detect a 0.8 mm iron ball. A 0.7 × 20 mm broken needle can be detected up to 50 mm height. |
| Detection Method | Magnetic induction |
| Detection Area | 70 × 55 mm |
| Alarm Method | Buzzer and indicator light |
| Machine Dimensions | 195 × 58 × 50 mm |
| Packing Dimensions | 250 × 100 × 55 mm |
| N.W. / G.W. | 0.212 / 0.35 kg |
*Design and specifications subject to change without prior notice.
