Fabric Spreading Machine

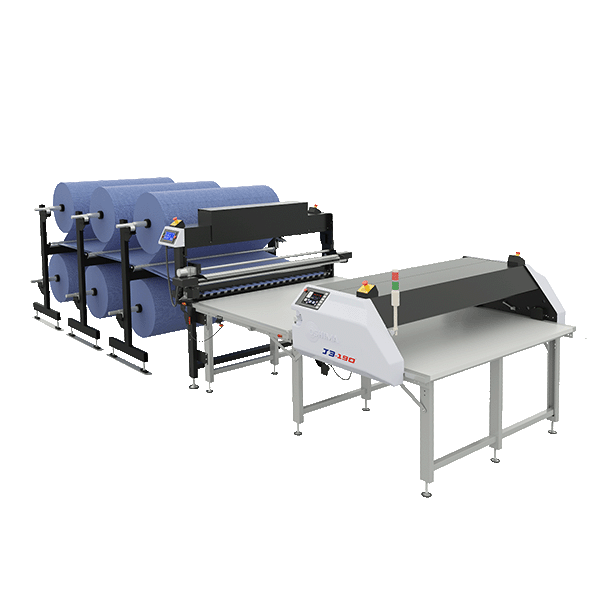

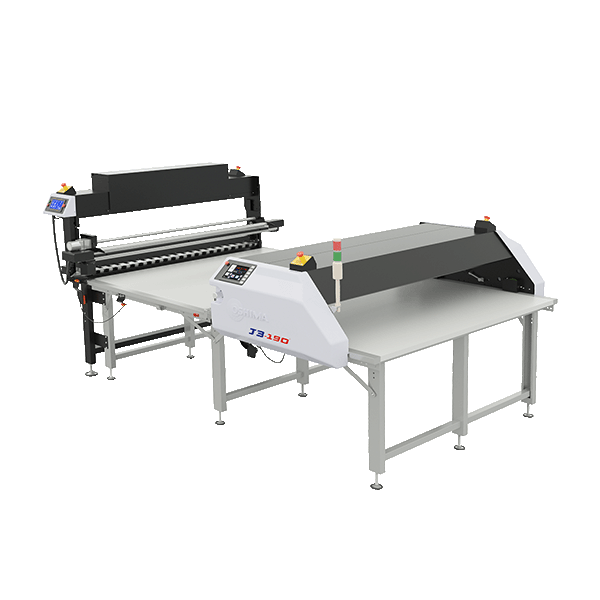

Multi-roll Woven Fabric Spreading J3
Medical and sticky-fabric expert!
- Features
- Supports up to 6 fabric rolls at the same time
- Single-roll loading capacity up to 300 kg
- Adjustable tension control
- Automatic edge alignment
- Touchscreen operation with multilingual display
- Ground-level fabric loading design
- Low maintenance and low consumable replacement cost
Description
J3 is a multi-roll spreading machine designed for high-volume woven fabric applications. It is suitable for production environments handling medical masks, isolation gowns, protective textiles, and other woven fabric products. The machine uses mechanical clamps and powered feeding arms to control multiple fabric rolls during continuous spreading. Its ground-level loading design is suitable for heavier fabric rolls and reduces the need to lift rolls into a high loading position.
Specifications
| Model | J3-160 | J3-190 | |
|---|---|---|---|
| Power Supply | V | 220 | 220 |
| Motor | kW | 1 | 1 |
| Maximum cloth width | mm | 1600 mm / 63" | 1900 mm / 75" |
| Table width | mm | 1830 mm / 72" | 2130 mm / 84" |
| Lay height | mm | 160 | 160 |
| Travel speed | m/min | 95 | 95 |
| Standard | 1. Cutting device 2. Heavy-duty clamp device |
||
| Pulling machine | L×W×H (mm) |
2200 × 1150 × 520 | 2500 × 1150 × 520 |
| Cutting machine | L×W×H (mm) |
2150 × 540 × 1570 | 2450 × 540 × 1570 |
| Packing volume (Pulling + Cutting) |
L×W×H (mm) |
2350 × 2060 × 1895 | 2850 × 2150 × 1900 |
| N.W / G.W | kg | 310 / 510 kg | 340 / 560 kg |
| Spreading method | One-way spreading (face-up) | ||

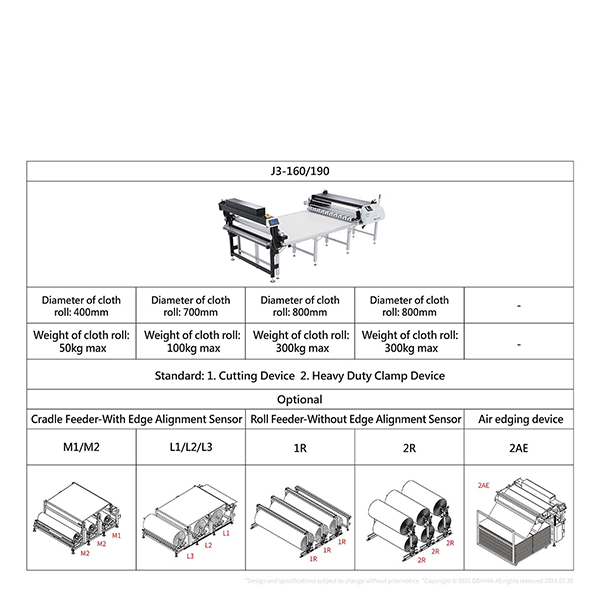

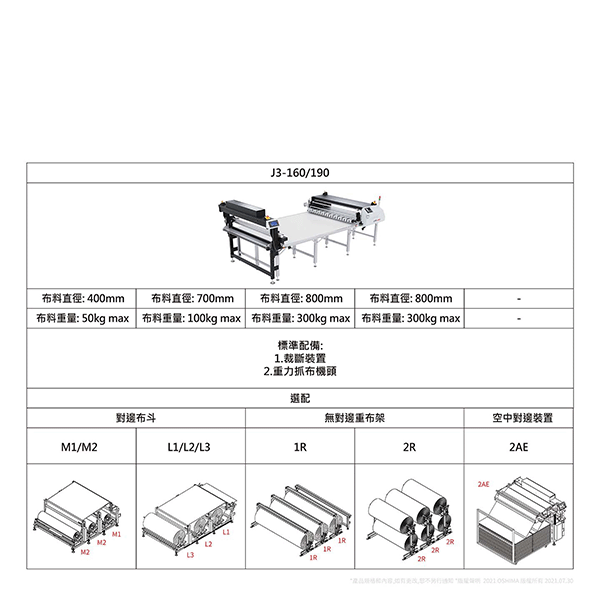

Optional Feeder Specifications
| Optional Type | M1 / M2 | L1 / L2 / L3 | 1R | 2R | 2AE |
|---|---|---|---|---|---|
| Optional device | Cradle feeder with edge alignment sensor | Cradle feeder with edge alignment sensor | Roll feeder without edge alignment sensor | Roll feeder without edge alignment sensor | Air edging device |
| Model | M1-160 / 190 M2-160 / 190 |
L1-160 / 190 L2-160 / 190 L3-160 / 190 |
1R-160 / 190 | 2R-160 / 190 | 2AE-160 / 190 |
| Diameter of cloth roll | 400 mm max | 700 mm max | 800 mm max | 800 mm max | - |
| Weight of cloth roll | 50 kg max | 100 kg max | 300 kg max | 300 kg max | - |
J3-160 Specifications
Power Supply220 V
Motor1 kW
Maximum cloth width1600 mm / 63"
Table width1830 mm / 72"
Lay height160 mm
Travel speed95 m/min
Standard1. Cutting device
2. Heavy-duty clamp device
2. Heavy-duty clamp device
Pulling machine2200 × 1150 × 520 mm
Cutting machine2150 × 540 × 1570 mm
Packing volume2350 × 2060 × 1895 mm
N.W / G.W310 / 510 kg
Spreading methodOne-way spreading (face-up)
J3-190 Specifications
Power Supply220 V
Motor1 kW
Maximum cloth width1900 mm / 75"
Table width2130 mm / 84"
Lay height160 mm
Travel speed95 m/min
Standard1. Cutting device
2. Heavy-duty clamp device
2. Heavy-duty clamp device
Pulling machine2500 × 1150 × 520 mm
Cutting machine2450 × 540 × 1570 mm
Packing volume2850 × 2150 × 1900 mm
N.W / G.W340 / 560 kg
Spreading methodOne-way spreading (face-up)
Optional Feeder Specifications
M1 / M2
Optional deviceCradle feeder with edge alignment sensor
ModelM1-160 / 190
M2-160 / 190
M2-160 / 190
Diameter of cloth roll400 mm max
Weight of cloth roll50 kg max
L1 / L2 / L3
Optional deviceCradle feeder with edge alignment sensor
ModelL1-160 / 190
L2-160 / 190
L3-160 / 190
L2-160 / 190
L3-160 / 190
Diameter of cloth roll700 mm max
Weight of cloth roll100 kg max
1R
Optional deviceRoll feeder without edge alignment sensor
Model1R-160 / 190
Diameter of cloth roll800 mm max
Weight of cloth roll300 kg max
2R
Optional deviceRoll feeder without edge alignment sensor
Model2R-160 / 190
Diameter of cloth roll800 mm max
Weight of cloth roll300 kg max
2AE
Optional deviceAir edging device
Model2AE-160 / 190
Diameter of cloth roll-
Weight of cloth roll-
*Design and specifications subject to change without prior notice.
*Note: The loading weight and diameter of fabric rolls may vary depending on the type of fabric.
*Note: The loading weight and diameter of fabric rolls may vary depending on the type of fabric.
