Fabric Spreading Machine

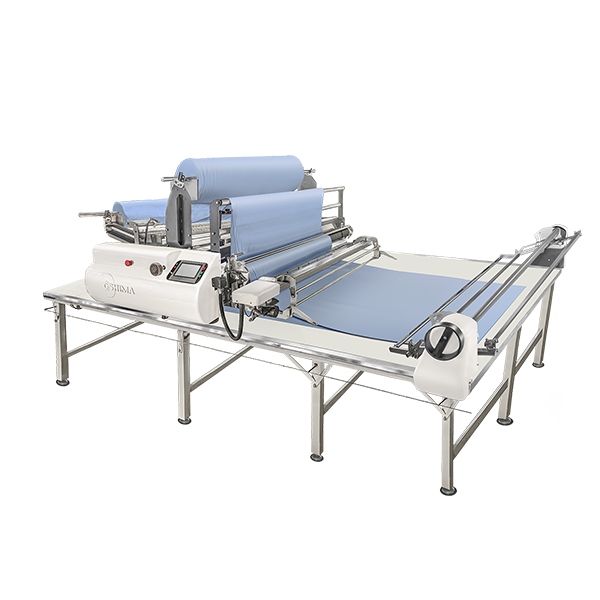

Dual-flow Woven Fabric Spreading F2
Made for car interiors.
- Features
- Feed-down spreading design to reduce material tension and deformation
- Dual-roller feeding system for controlled material handling
- Automatic edge alignment
- Suitable for roll-fed woven, nonwoven, foam, and multilayer materials
- Touchscreen interface with multilingual support
- Durable structure for continuous operation
- Low consumable use and low maintenance requirements
Description
F2 Dual-Flow is designed for automotive interior material spreading, including headliners, interior liners, and technical composite material applications. The machine handles roll-fed woven fabric, nonwoven material, foam, and multilayer structures before cutting or forming. Its feed-down structure and dual-roller feeding system are suitable for materials that require lower tension during spreading.
Specifications
| Model | F2 Dual-Flow-190R2 | F2 Dual-Flow-210R2 |
|---|---|---|
| Model | F2 Dual-Flow-190R2 | F2 Dual-Flow-210R2 |
| Power supply | 1P / 220V | 1P / 220V |
| Motor (kW) | 1.5 | 1.5 |
| Maximum cloth width (mm/inch) | 1900 mm / 75" | 2100 mm / 83" |
| Table width (mm/inch) | 2130 mm / 84" | 2330 mm / 92" |
| Weight of cloth roll (kg) | 60 Two rolls of fabric, each weighing 30 kg. |
60 Two rolls of fabric, each weighing 30 kg. |
| Diameter of cloth roll (mm) | 450 | 450 |
| Travel speed (m/min) | 93 | 93 |
| Lay height (mm) | One way: 220 Face to Face: 150 |
One way: 220 Face to Face: 150 |
| Spreading methods | One-way spreading (face-up) | One-way spreading (face-up) |
| Dimensions L × W × H (mm) | 2600 × 1800 × 1200 | 2800 × 1800 × 1200 |
| Packing Volume L × W × H (mm) | 2800 × 2000 × 1500 | 3000 × 2000 × 1500 |
| N.W / G.W (kg) | 570 / 860 | 610 / 970 |
*Design and specifications subject to change without prior notice.
*Note: The loading weight and diameter of fabric rolls may vary depending on the type of fabric.
*Note: The loading weight and diameter of fabric rolls may vary depending on the type of fabric.
