Fabric Cutting Machine
Low-Ply Automatic Cutting OneCut
- Features
- Low-ply / single-ply automatic cutting system
- Designed for sampling and small-batch production
- Suitable for fabric, leather, technical textiles and composite materials
- Applicable to automotive interiors, upholstered furniture and garment development
- Automatic nesting, cutting and calibration
- Cutting depth adjustable from 0.1–0.5 mm
- Maximum cutting thickness up to 30 mm after compression
- Cutting speed up to 1300 mm/s
- Cutting accuracy ±0.2 mm
- Available with 1600 mm or 1900 mm cutting width
- Fixed-table or conveyor-table configurations
- Supports data input, output, storage and custom forms
- Connectable with MES and ERP systems
- Optional conveyor worktable, projector and projector stand
Description

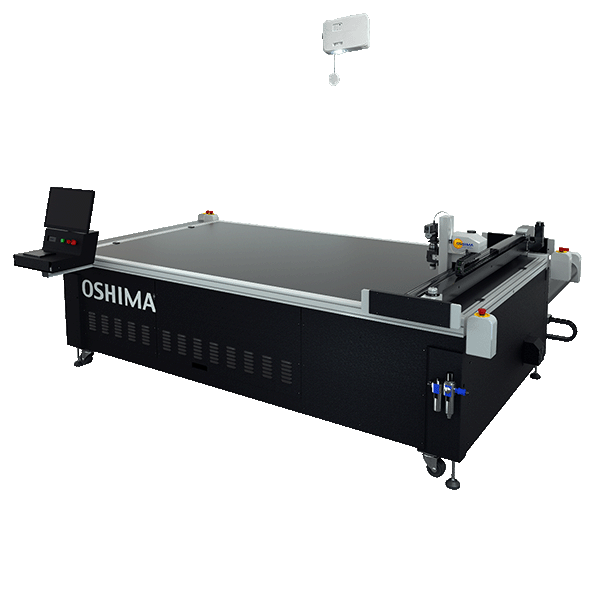

OneCut is a low-ply automatic cutting machine designed for product development, sampling and small-batch production. It is suitable for fabric, leather, technical textiles and composite materials, with applications ranging from automotive interiors and upholstered furniture to garment development and other technical-material cutting.
The modular cutting system allows tools to be changed according to the material and application. Automatic nesting, cutting and calibration support a more integrated digital cutting workflow, while fixed-table and conveyor-table configurations are available for different production setups.
OneCut is available with cutting areas of 1600 × 2500 mm or 1900 × 2500 mm, with a maximum compressed cutting thickness of 30 mm, cutting speeds up to 1300 mm/s, and cutting accuracy of 0.2 mm.
The system also supports data input, output, storage and custom forms, and can connect with MES and ERP systems. A conveyor worktable, projector and projector stand are available as optional configurations for different cutting and material-handling requirements.
Specifications
| Model | OneCut-160S | OneCut-160M | OneCut-190S | OneCut-190M |
|---|---|---|---|---|
| Model | OneCut-160S | OneCut-160M | OneCut-190S | OneCut-190M |
| Module | Fixed table | Conveyor table | Fixed table | Conveyor table |
| Cutting area (mm) | 1600 × 2500 | 1600 × 2500 | 1900 × 2500 | 1900 × 2500 |
| Maximum cutting thickness (mm) | Max. 30 After compressed | Max. 30 After compressed | Max. 30 After compressed | Max. 30 After compressed |
| Cutting speed (mm/s) | 0–1300 | 0–1300 | 0–1300 | 0–1300 |
| Input power (V) | 220V ± 7–10% / 50–60Hz | 220V ± 7–10% / 50–60Hz | 220V ± 7–10% / 50–60Hz | 220V ± 7–10% / 50–60Hz |
| Vacuum | 9kW 3P / 220V 50–60Hz | 9kW 3P / 220V 50–60Hz | 9kW 3P / 220V 50–60Hz | 9kW 3P / 220V 50–60Hz |
| Energy-saving configuration | Sub-zone vacuum suction control | Sub-zone vacuum suction control | Sub-zone vacuum suction control | Sub-zone vacuum suction control |
| Acceleration (m/s²) | 8 | 8 | 8 | 8 |
| Cutting accuracy (mm) | 0.2 | 0.2 | 0.2 | 0.2 |
| Transmission interface | Internet cable | Internet cable | Internet cable | Internet cable |
| Original point accuracy (mm) | 0.02 | 0.02 | 0.02 | 0.02 |
| HMI interface | Touch screen display | Touch screen display | Touch screen display | Touch screen display |
| Dimensions L × W × H (mm) | 3540 × 2595 × 1482 | 3732 × 2886 × 1482 | 3450 × 2886 × 1482 | 3732 × 2886 × 1482 |
