Fabric Cutting Machine

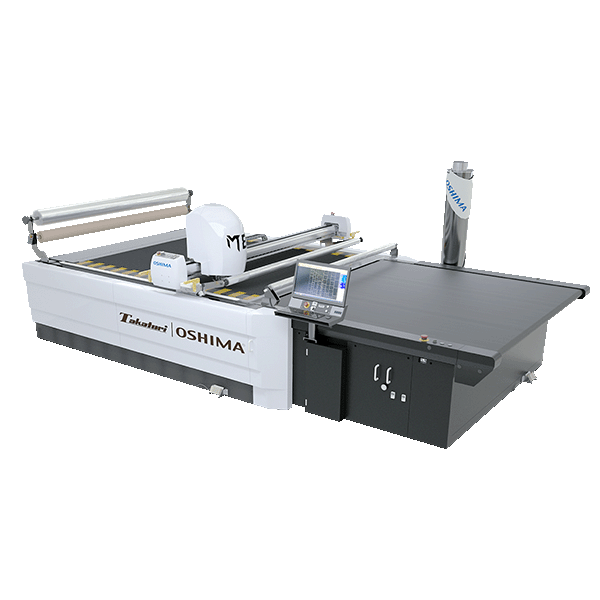

High-Ply Automatic Fabric Cutting M8S
Built for heavy-duty cutting.
- Features
- Designed for thick fabrics, multilayer materials, and dense textiles
- Cutting height up to 8 cm after compression
- Blade speed up to 6,000 RPM
- Cutting accuracy up to 99%
- Upgraded blade cooling system
- Cut-while-moving operation
- PDF data export, data storage, and report generation
- Upgradeable for data integration
Description
M8S is designed for high-load cutting applications, including denim, heavy woven fabrics, composite materials, and multilayer fabric stacks. The machine uses a reinforced mechanical structure for long-hour cutting work. Its blade cooling system supports cutting under heavy-duty conditions, while the cut-while-moving function is used for continuous cutting operations. The system supports PDF data export, data storage, report generation, and optional data integration upgrade.
Specifications
| Model | M6S | M8S |
|---|---|---|
| Model | M6S | M8S |
| Actual cutting area W × L (mm) | 1900 × 1900 | 1900 × 1900 |
| Maximum cutting height (mm) | Max. 60 after compression Depends on cutting material | Max. 80 after compression Depends on cutting material |
| Maximum cutting speed (m/min) | 60 Idle running | 60 Idle running |
| Cutting method | Up-and-down blade cutting system | Up-and-down blade cutting system |
| Machine voltage | 3P / 380V 50Hz / 60Hz | 3P / 380V 50Hz / 60Hz |
| Power consumption (kW) | 38kVA (25kW) | 38kVA (25kW) |
| Air pressure (MPa) | ≥ 0.6 | ≥ 0.6 |
| Dimensions L × W × H (mm) | 5100 × 2900 × 1900 Including exhaust pipe height: 2500–2800 | 5100 × 2900 × 1900 Including exhaust pipe height: 2500–2800 |
*Design and specifications subject to change without prior notice.
