Fabric Spreading Machine

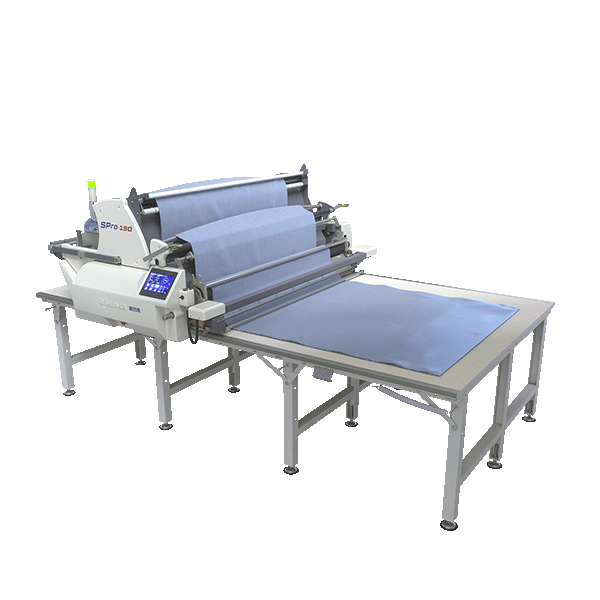

Smart Knit/Woven Fabric Spreading SPro
Real-time fabric control.
- Features
- Built-in IoT system for real-time production monitoring
- Digital dashboard for machine status and fabric usage data
- Automatic edge alignment
- Adjustable tension for knit and woven fabrics
- Touchscreen interface with multilingual support
- Cloud data synchronization and automatic backup
- Fast installation and simple maintenance
Description
SPro is designed for fabric spreading in modern cutting rooms. It is suitable for both knit and woven fabrics and supports connected production management through its built-in IoT system. The dashboard displays machine status, production records, fabric usage, and selected time-range data. Operators and managers can review spreading information through the connected system without relying only on manual records. The machine includes touchscreen operation, multilingual settings, cloud synchronization, and automatic data backup for factories that want to connect spreading work with digital production management.
Specifications
| Model | SPro-190 | SPro-210 |
|---|---|---|
| Model | SPro-190 | SPro-210 |
| Power supply | 1P / 220V | 1P / 220V |
| Motor power (kW) | 1.5 | 1.5 |
| Spreading width (mm/inch) | 1900 mm / 75" | 2100 mm / 83" |
| Table width (mm/inch) | 2130 mm / 84" | 2330 mm / 92" |
| Fabric weight (kg) | 60 | 60 |
| Fabric diameter (mm) | 450 Note: Fabric weight and fabric diameter may vary depending on fabric type. | 450 Note: Fabric weight and fabric diameter may vary depending on fabric type. |
| Travel speed (m/min) | 93 | 93 |
| Lay height (mm) | Standard one-way: 220 Raised one-way: 300 Standard face-to-face: 150 Raised face-to-face: 230 |
Standard one-way: 220 Raised one-way: 300 Standard face-to-face: 150 Raised face-to-face: 230 |
| Spreading method | One-way spreading Face-to-face spreading |
One-way spreading Face-to-face spreading |
| Dimensions L × W × H (mm) | 2600 × 1800 × 950 | 2800 × 1800 × 950 |
| Packing volume L × W × H (mm) | 2800 × 2000 × 1250 | 3000 × 2000 × 1250 |
| N.W / G.W (kg) | 570 / 860 | 610 / 970 |
*Design and specifications subject to change without prior notice.
*Note: Fabric weight and fabric diameter may vary depending on fabric type.
*Note: Fabric weight and fabric diameter may vary depending on fabric type.
