Fabric Spreading Machines

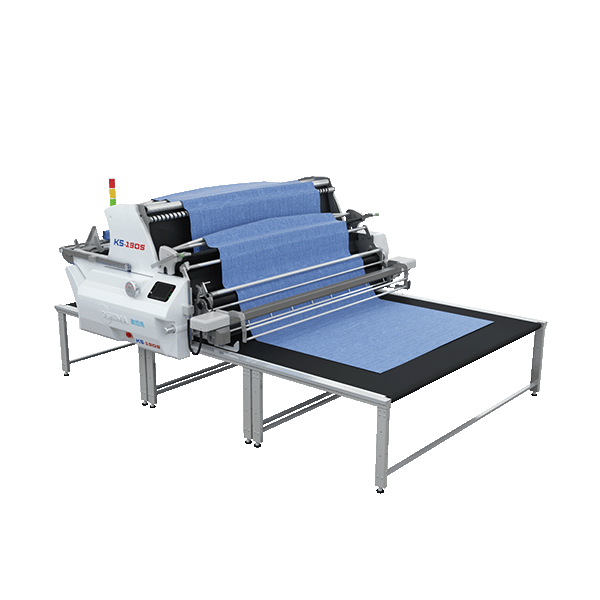

Fabric Spreading Machine for Knit & Woven Fabrics K5
- Features
- For knit and woven fabrics
- Supports open-width and roll-fed fabric
- Automatic edge alignment
- Adjustable fabric tension control
- One-way, face-to-face and multiple-length spreading
- Up to 93 m/min travel speed
- Handles fabric rolls up to 60 kg
- Available for 1900 mm or 2100 mm fabric width
- Upgradeable to SPro IoT integration
Description
K5 is a fabric spreading machine for knit and woven fabrics, designed for regular cutting-room production where stable feeding, accurate edge alignment and consistent fabric tension are required. It supports open-width and roll-fed fabric and can perform one-way, face-to-face and multiple-length spreading.
The machine handles fabric rolls up to 60 kg and is available for maximum fabric widths of 1900 mm or 2100 mm. Automatic edge alignment and adjustable tension control help maintain consistent spreading across different fabric types while reducing manual adjustment during production.
For factories planning to introduce production monitoring later, K5 can be upgraded to the SPro system with limited modification, adding IoT connectivity and real-time production data without replacing the complete spreading machine.
Specifications
| Model | K5-190 | K5-210 |
|---|---|---|
| Model | K5-190 | K5-210 |
| Power supply | 1P / 220V | 1P / 220V |
| Motor (kW) | 1 | 1 |
| Maximum cloth width (mm/inch) | 1900 mm / 75" | 2100 mm / 83" |
| Table width (mm/inch) | 2130 mm / 84" | 2330 mm / 92" |
| Weight of cloth roll (kg) | 60 | 60 |
| Diameter of cloth roll (mm) | 450 Note: The loading weight and diameter of fabric rolls may vary depending on the type of fabric. | 450 Note: The loading weight and diameter of fabric rolls may vary depending on the type of fabric. |
| Travel speed (m/min) | 93 | 93 |
| Lay height (mm) | One way: 220, 300 Face to Face: 150, 230 |
One way: 220, 300 Face to Face: 150, 230 |
| Spreading methods | One-way spreading (face-up) Zigzag spreading (face-to-face) Multiple-length spreading (face-up) |
One-way spreading (face-up) Zigzag spreading (face-to-face) Multiple-length spreading (face-up) |
| Dimensions L × W × H (mm) | 2600 × 1800 × 950 | 2800 × 1800 × 950 |
| Packing Volume L × W × H (mm) | 2800 × 2000 × 1250 | 3000 × 2000 × 1250 |
| N.W / G.W (kg) | 570 / 860 | 610 / 970 |
*Note: The loading weight and diameter of fabric rolls may vary depending on the type of fabric.
