Fabric Shrinking & Forming Machine

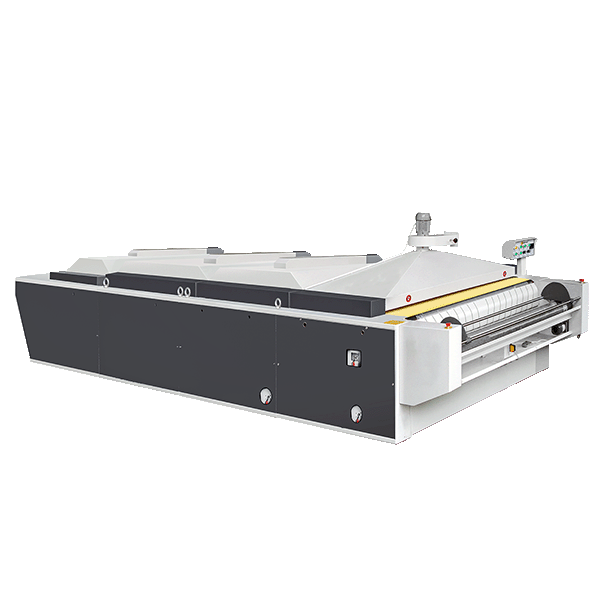

Fabric Steam Shrinking OSP-2500/W/2008/L/W/WL
Stable shrinking, better cutting.
- Features
- One-stop conveyor belt feeding system
- Special fabric swinging device for tension-free handling
- Fully sealed steam chamber saves over 30% steam consumption
- Adjustable steam volume, temperature, and pre-shrinking effect
- Strong suction cooling for fast fabric stabilization
- Mechanical meter counter for length measurement after setting
- Optional electric auxiliary heating
- Available in standard, extended, wider, and extended-wide models
Description
This multifunctional fabric shrinking machine is suitable for a wide range of regular fabrics, especially cotton, silk, wool, linen, synthetic fibers, and blended fabrics. It is designed for fabric pre-shrinking and dimensional stabilization before cutting or further processing, helping factories improve fabric consistency before production.
Through steam treatment, drying, and cooling, the fabric can be properly prepared before entering the next production stage. This helps reduce the risk of unstable shrinkage affecting cutting, sewing, or forming quality. The machine is suitable for garment factories and textile processing facilities that need to improve fabric shrinking capacity, material stability, and production control.
Available Models
- OSP-2500
- OSP-2500W
- OSP-2008
- OSP-2008L: Extended version
- OSP-2008W: Wider version
- OSP-2008WL: Extended and wider version
Specifications
| Model | OSP-2500 | OSP-2500W | OSP-2008 | OSP-2008L | OSP-2008W | OSP-2008WL |
|---|---|---|---|---|---|---|
| Power supply | 3P 380V / 220V | 3P 380V / 220V | 3P 380V / 220V | 3P 380V / 220V | 3P 380V / 220V | 3P 380V / 220V |
| Fabric width (mm/inch) | 1829 / 72" | 2108 / 83" | 1829 / 72" | 1829 / 72" | 2108 / 83" | 2108 / 83" |
| Main motor power (kW) | 3.78 | 3.78 | 4.53 | 5.18 | 4.53 | 5.18 |
| Preshrinking speed (mm/min) | 0–10000 | 0–10000 | 0–10000 | 0–10000 | 0–10000 | 0–10000 |
| Steam consumption (kg/h) | 150–200 | 150–200 | 200–250 | 250–300 | 200–250 | 250–300 |
| Dimensions L × W × H (mm) | 5300 × 2515 × 1775 | 5300 × 2815 × 1775 | 6650 × 2515 × 1775 | 8000 × 2515 × 1775 | 6650 × 2815 × 1775 | 8000 × 2815 × 1775 |
| Packing Volume L × W × H (mm) | 2580 × 2080 × 1580 2580 × 1540 × 1670 2580 × 1930 × 1670 |
2580 × 2380 × 1580 2580 × 1840 × 1670 2580 × 2230 × 1670 |
2580 × 2080 × 1580 2580 × 1540 × 1670 2580 × 1540 × 1670 2580 × 1930 × 1670 |
2580 × 2080 × 1580 2580 × 1540 × 1670 2580 × 1540 × 1670 2580 × 1540 × 1670 2580 × 1930 × 1670 |
2880 × 2080 × 1580 2880 × 1540 × 1670 2880 × 1540 × 1670 2880 × 1930 × 1670 |
2880 × 2080 × 1580 2880 × 1540 × 1670 2880 × 1540 × 1670 2880 × 1540 × 1670 2880 × 1930 × 1670 |
| N.W / G.W (kg) | 1700 / 2000 | 1700 / 2000 | 2200 / 2500 | 3200 / 3600 | 2500 / 2900 | 3900 / 4500 |
Design and specifications subject to change without prior notice.
