Fabric Relaxing Machine

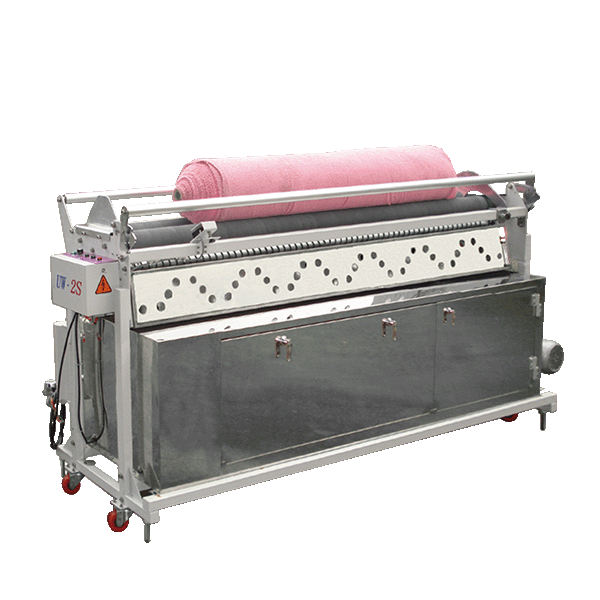

Fabric Steam Relaxing UW-2S/2LS/2MS
Accelerated by steam.
- Features
- Steam treatment with approximately 6–8 hours of fabric relaxation
- Supports fabric width up to 82 inches
- Auto-stop sensor, rewinding, and fabric return function
- Castor-mounted design for flexible cutting room placement
Description
This steam fabric relaxing machine is used before cutting for fabric tension release and pre-shrinking treatment. With steam-assisted processing, it helps knit and woven fabrics stabilize before entering the spreading and cutting process, reducing issues caused by unreleased fabric tension.
This series offers different model options based on fabric type and production needs. UW-2LS is the wide-width version, suitable for wider fabrics. UW-2MS is the heavy-duty version, suitable for heavier materials such as denim and indigo-dyed fabrics. All models can be equipped with an optional yard / meter counter for fabric length measurement and production management.
Specifications
| Model | UW-2 | UW-5 | UW-2L | UW-2M |
|---|---|---|---|---|
| Power supply | 1P/220V | 1P/220V | 1P/220V | 1P/220V |
| Fabric diameter (mm) | 500 | 500 | 500 | 600 |
| Fabric weight (kg) | 80 | 150 | 80 | 150 |
| Width of roller (mm/inch) | 2032 / 80" | 2032 / 80" | 2235 / 88" | 2032 / 80" |
| Inspecting speed (yard/min) | 0–80 | 0–80 | 0–80 | 0–80 |
| Wagging width (mm) | 400 | 400 | 400 | 930 |
| Packaging volume L × W × H (mm) | 2450 × 800 × 1200 | 2580 × 1200 × 1330 | 2650 × 800 × 1200 | 2450 × 1000 × 1340 |
| Dimensions L × W × H (mm) | 2580 × 800 × 1320 | 2700 × 1300 × 1450 | 2780 × 800 × 1320 | 2880 × 960 × 1450 |
| N.W / G.W (kg) | 170 / 200 | 250 / 280 | 150 / 230 | 230 / 260 |
Design and specifications subject to change without prior notice.
