Fabric Shrinking & Forming Machine

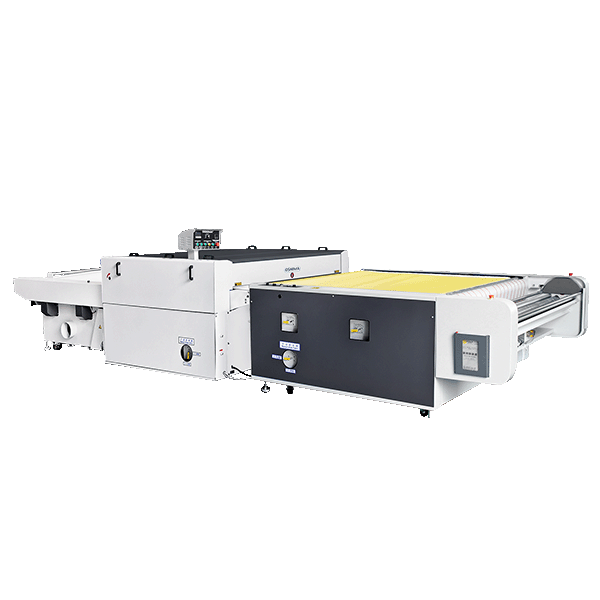

Fabric Steam Shrinking OSP-2000II/2000III
High temps, quick cooling.
- Features
- Sealed steam chamber saves over 30% energy
- Three-stage process: heating, steam, and vacuum cooling
- Adjustable steam volume, temperature, vacuum cooling, and speed
- Built-in measuring wheel for fabric length control
- Available in one-section and two-section configurations
- Optional steam cover available
Description
This machine is designed for advanced textile processing, helping materials stabilize before cutting, forming, or further production. It is suitable for both general fabrics and high-performance technical textiles.
In addition to common fabrics such as cotton, silk, wool, and linen, it can also be used for coated fabrics, laminated fabrics, and composite material layers. It is suitable for industries that require stable material handling, including apparel, automotive, medical, and aerospace applications.
This machine is especially suitable for high-value materials where process stability, repeatability, and production control are important.
Specifications
| Model | OSP-2000II | OSP-2000III |
|---|---|---|
| Power supply | 3P 220V / 380V | 3P 220V / 380V |
| Width (mm/inch) | 1830 mm / 72" | 1830 mm / 72" |
| Processing speed (mm/min) | 4000–8000 | 4000–8000 |
| Main motor power (kW) | 0.76 | 0.76 |
| Heater power (kW) | 20.4 | 20.4 |
| Cooling motor power (kW) | 3.2 | 3.2 |
| Air pressure (MPa) | 0.3–0.7 | 0.3–0.7 |
| Steam consumption (kg/h) | 200 | 300 |
| Belt speed (mm/min) | 0–8000 | 0–8000 |
| Dimensions L × W × H (mm) | 6000 × 2450 × 1510 | 6800 × 2450 × 1510 |
| Packing Volume L × W × H (mm) | 2470 × 1780 × 1240 + 2580 × 2230 × 1730 + 2470 × 2080 × 1240 |
2470 × 1980 × 1240 + 2580 × 2230 × 1730 + 2470 × 2130 × 1280 + 2470 × 750 × 860 |
| N.W / G.W (kg) | 2900 / 3100 | 3000 / 3300 |
Design and specifications subject to change without prior notice.
