Fabric Shrinking & Forming Machine

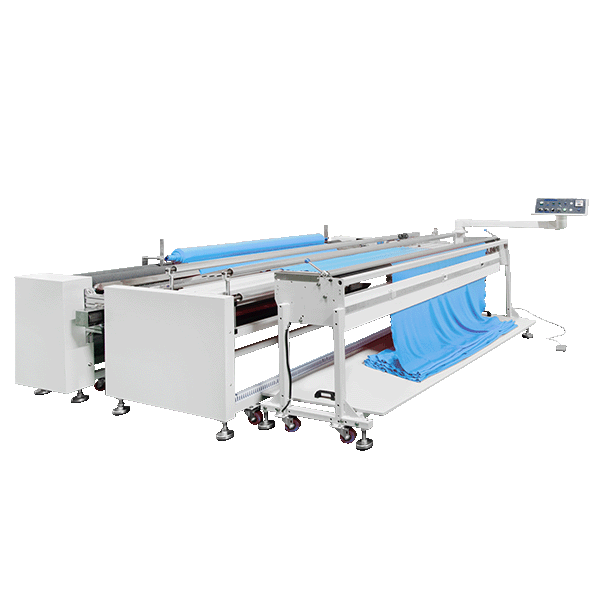

Fabric Steam Shrinking OC-100/100L
Compact fabric control.
- Features
- Designed for small-scale production needs
- Suitable for common fabric types
- Special fabric swinging device for tension-free handling
- Open steam treatment with natural air drying
- Mechanical meter counter for fabric length measurement
Description
This machine is designed for small factories that need a simple and practical solution for fabric preparation before cutting. It supports regular fabric processing in a compact production setting, helping operators handle fabric more consistently before the next workflow.
The system uses open steam treatment and room-temperature natural air drying to support fabric stabilization. With its mechanical meter counter, operators can measure the fabric length after processing, making it suitable for production lines that require basic fabric control without a complex setup.
The system uses open steam treatment and room-temperature natural air drying to support fabric stabilization. With its mechanical meter counter, operators can measure the fabric length after processing, making it suitable for production lines that require basic fabric control without a complex setup.
Specifications
| Model | OC-100 | OC-100L |
|---|---|---|
| Power supply | 3P/380V | 3P/380V |
| Width (mm/inch) | 2100 / 83" | 2540 / 100" |
| Processing speed (mm/min) | 1000–3000 | 1000–3000 |
| Main motor power (kW) | 0.9 | 0.9 |
| Boiler heater power (kW) | 9 | 9 |
| Boiler size (mm) | 520 × 700 × 850 | 520 × 700 × 850 |
| Dimensions L × W × H (mm) | 2660 × 2500 × 1500 | 3100 × 2500 × 1500 |
| N.W / G.W (kg) | 750 | 800 |
Design and specifications subject to change without prior notice.
