Shirt & Garment Part Preparation

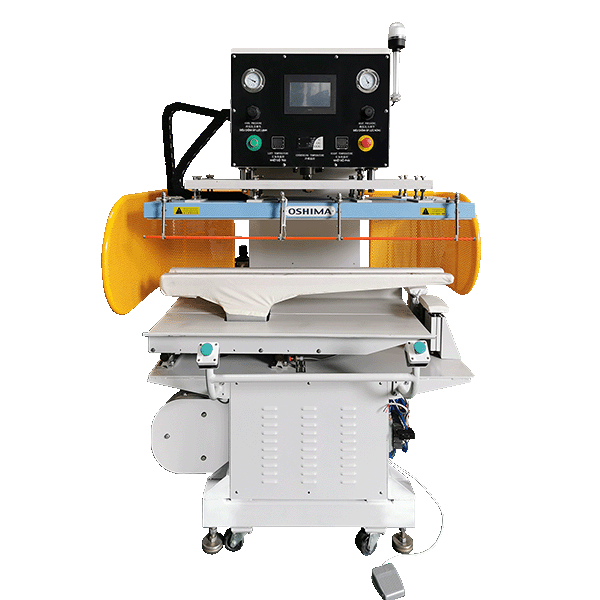

Shirt Waist & Sleeve Seam Press OP-1235
One machine for shirt seam pressing.
- Features
- Designed for shirt side seam and sleeve seam pressing
- Supports dual pressing modes
- Adjustable pressure and temperature settings
- Suitable for shoulder, side seam, sleeve seam, cuff, and shirt seam areas
- Lower mold with vacuum fan
- Two-hand safety operation
- Production capacity of 180–230 pieces per hour
Description
OP-1235 is used for pressing multiple seam areas in shirt production, including side seams, sleeve seams, cuffs, shoulder areas, and general shirt seam sections. The machine supports two pressing modes and allows operators to adjust pressure and temperature based on the garment part. The lower mold includes a vacuum fan to hold the fabric during pressing. Operation requires both hands to activate the machine for safety.
Specifications
| Model | OP-1235 |
|---|---|
| Model | OP-1235 |
| Power supply | 1P / 220V |
| Heater (kW) | 4.65 |
| Max pressure (MPa) | 0.5 |
| Temperature (°C) | Room temperature–180 |
| Air consumption (L/min) | 20 |
| Dimensions L × W × H (mm) | 1500 × 1150 × 1950 |
| Packing volume L × W × H (mm) | 1680 × 1280 × 2120 |
| N.W / G.W (kg) | 380 / 480 |
*Design and specifications subject to change without prior notice.
