Shirt & Garment Part Preparation

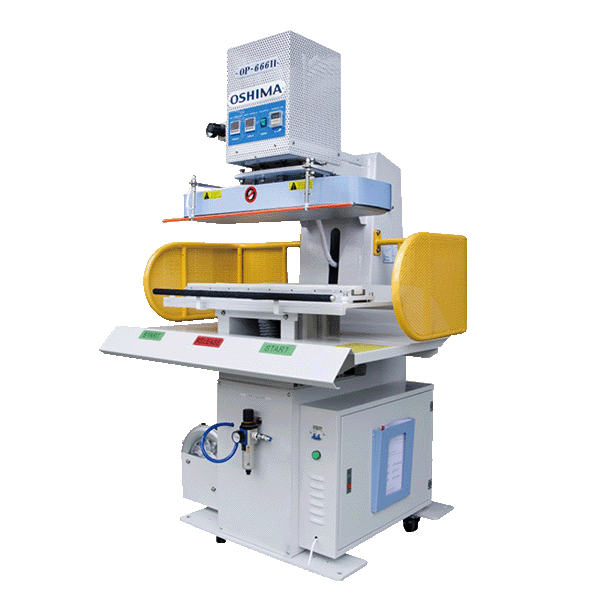

Shirt Back Yoke Press OP-666/666II
Press shoulder yoke seams with control.
- Features
- Designed for shirt shoulder yoke seam pressing
- Adjustable pressing temperature and time
- Vacuum fan for stable fabric holding during pressing
- Safety device for operator protection
- Production capacity of 180–230 pieces per hour
Description
OP-666 / OP-666II is used for pressing the shoulder yoke seams of shirts. It is suitable for the yoke area between the shoulder and upper back, where the seam needs to be pressed after sewing. OP-666 is the standard model. OP-666II features a three-section lower mold, allowing different sections to be adjusted by temperature and spacing according to the shirt construction and pressing requirement.
Specifications
| Model | OP-666 | OP-666II |
|---|---|---|
| Model | OP-666 | OP-666II |
| Power supply | 1P / 220V | 1P / 220V |
| Heater (kW) | 3.85 | 3.85 |
| Use air pressure (MPa) | 0.5 | 0.5 |
| Temperature (°C) | Room temperature–180 | Room temperature–180 |
| Dimensions L × W × H (mm) | 1330 × 1100 × 1960 | 1330 × 1100 × 1960 |
| Packing volume L × W × H (mm) | 1480 × 1250 × 2100 | 1480 × 1250 × 2100 |
| N.W / G.W (kg) | 340 / 440 | 340 / 440 |
*Design and specifications subject to change without prior notice.
