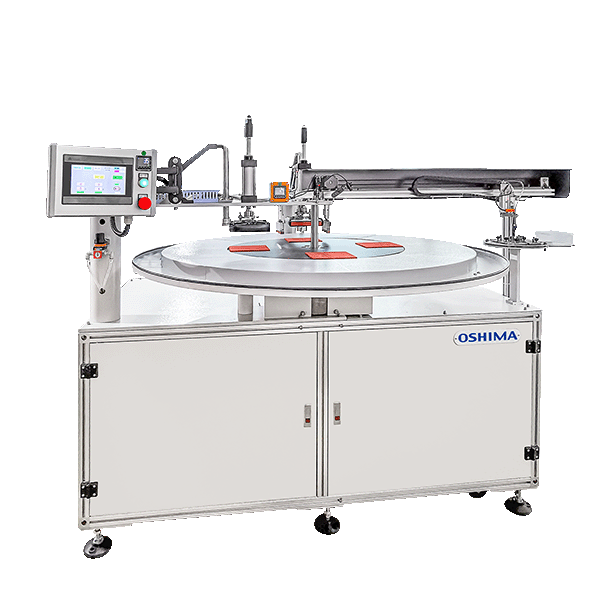

Rotate Hot and Cold Heat Press OP-15A4N
Small label transfer machine with hot pressing and cold setting.
- Features
- Suitable for small heat labels and graphic transfers
- Supports hot pressing followed by cold setting
- Equipped with water chiller
- Automatic rotating arm
- Adjustable pressure, time, and temperature
- Pneumatic pressing structure
- Production capacity of approximately 250–300 pieces per hour
- Optional far-infrared positioning
Description
OP-15A4N is suitable for small label transfer applications that require hot and cold processing. Compared with OP-15A / OP-15AII, it adds cold setting after heat pressing, making it suitable for applications that require stronger transfer bonding, better color performance, or more stable setting.
Specification
| Model: OP-15A4N | |
|---|---|
| Power Supply | 1P / 220V |
| Heater（kW） | 0.5 |
| Air Pressure（MPa） | 0.3–0.5 |
| Motor（kW） | 0.2 |
| Hot Temperature Setting（℃） | Room Temperature–180 |
| Cooling Temperature Setting（℃） | 10–40 |
| Fusing Width（mm） | 150 × 150 |
| Machine Dimensions L × W × H（mm） |
2000 × 1600 × 1600 |
| Packaging Dimensions L × W × H（mm） |
2100 × 1700 × 1700 |
| N.W. / G.W.（kg） | 376 / 475 |
*Design and specifications are subject to change without prior notice.
