Heat Press & Decoration Machines
Heat Press OP-380A/380AII/380AIIT/550A
Open-table heat transfer machine for large-area transfer.
- Features
- Suitable for large-area heat transfer
- Can be used for garment panel pressing, heat labels, and graphic transfers
- Open worktable design

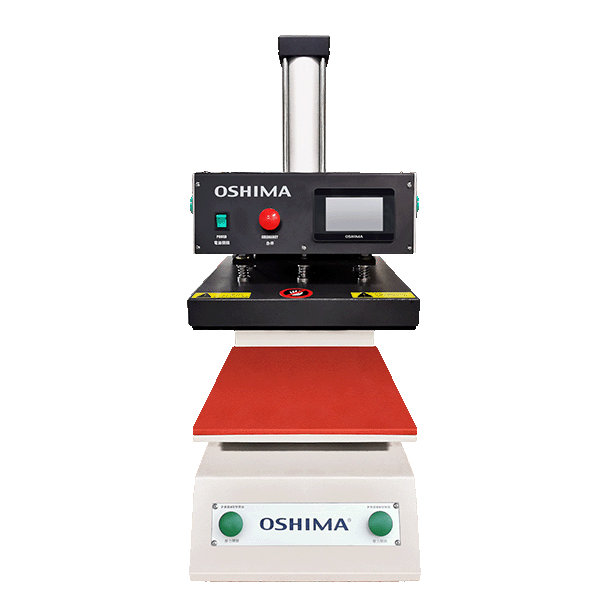

- OP-380A is the single-station model

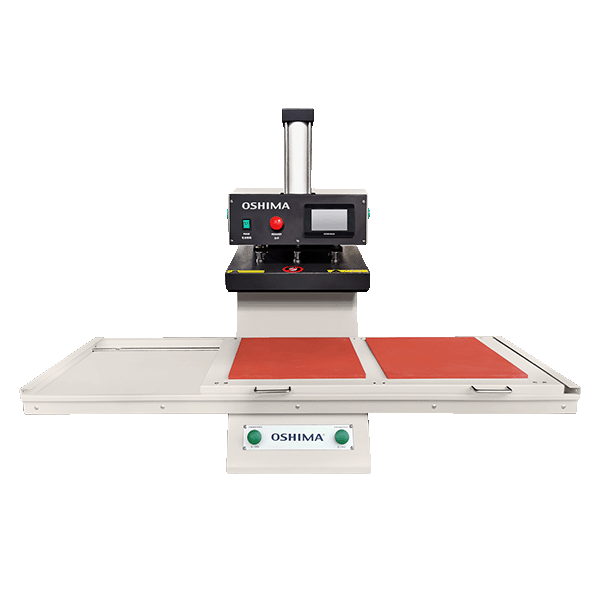

- OP-380AII is the dual-station model

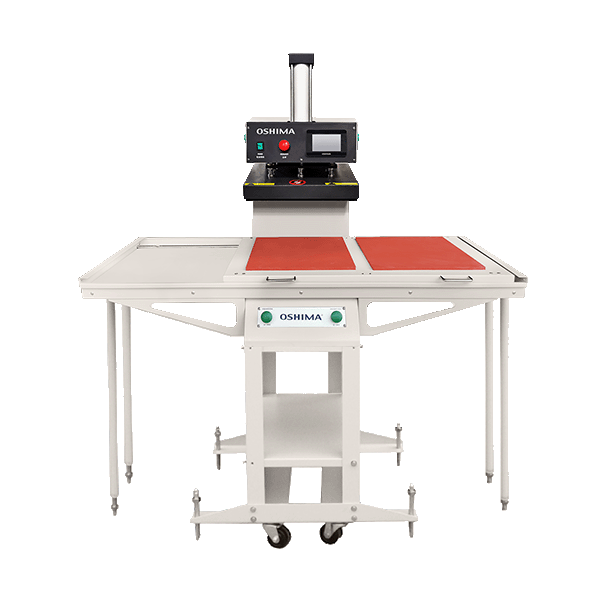

- OP-380AIIT is the dual-station model with stand and wheels
- Production capacity of approximately 200–250 pieces per hour
- Optional infrared positioning or movable worktable
Description
The OP-380A series is suitable for heat transfer and pressing work that requires a larger operating area. The open worktable allows operators to place larger garment panels, making it suitable for large-area heat transfers, graphic transfers, and garment panel pressing.
Specifications
| Model | OP-380A | OP-380AII | OP-550A |
|---|---|---|---|
| Power supply | 1P / 220V | ||
| Heater (kW) | 2.1 | 2.1 | 3.6 |
| Air Pressure (MPa) | 0.3 ~ 0.5 | ||
| Working Area (mm) | 380 × 380 × 1 | 380 × 380 × 2 | 500 × 500 × 1 |
| Temperature (℃) | Room temperature ~ 180 | ||
| Dimensions L × W × H (mm) |
770 × 480 × 870 | 770 × 1400 × 870 | 940 × 650 × 870 |
| Packaging Volume L × W × H (mm) |
950 × 660 × 1120 | 1480 × 950 × 1070 | 1590 × 940 × 1080 |
| N.W / G.W (kg) | 93 / 120 | 120 / 160 | 105 / 136 |
OP-380A
| Power supply | 1P / 220V |
|---|---|
| Heater (kW) | 2.1 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Working Area (mm) | 380 × 380 × 1 |
| Temperature (℃) | Room temperature ~ 180 |
| Dimensions L × W × H (mm) |
770 × 480 × 870 |
| Packaging Volume L × W × H (mm) |
950 × 660 × 1120 |
| N.W / G.W (kg) | 93 / 120 |
OP-380AII
| Power supply | 1P / 220V |
|---|---|
| Heater (kW) | 2.1 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Working Area (mm) | 380 × 380 × 2 |
| Temperature (℃) | Room temperature ~ 180 |
| Dimensions L × W × H (mm) |
770 × 1400 × 870 |
| Packaging Volume L × W × H (mm) |
1480 × 950 × 1070 |
| N.W / G.W (kg) | 120 / 160 |
OP-550A
| Power supply | 1P / 220V |
|---|---|
| Heater (kW) | 3.6 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Working Area (mm) | 500 × 500 × 1 |
| Temperature (℃) | Room temperature ~ 180 |
| Dimensions L × W × H (mm) |
940 × 650 × 870 |
| Packaging Volume L × W × H (mm) |
1590 × 940 × 1080 |
| N.W / G.W (kg) | 105 / 136 |
*Design and specifications subject to change without prior notice.
