Heat Press & Decoration Machines
Logo Heat Press OP-15A/15AII
Small-area heat label transfer machine.
- Features
- Suitable for small heat labels and graphic transfers
- Standard platen size: 150 × 150 mm

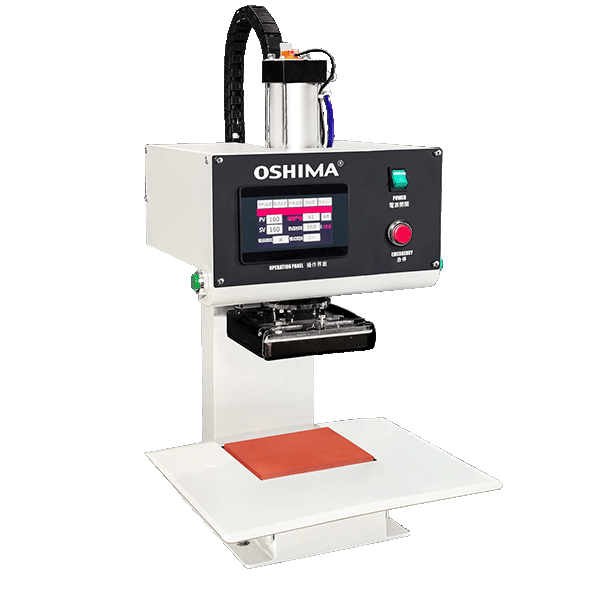

- OP-15A is the single-station model

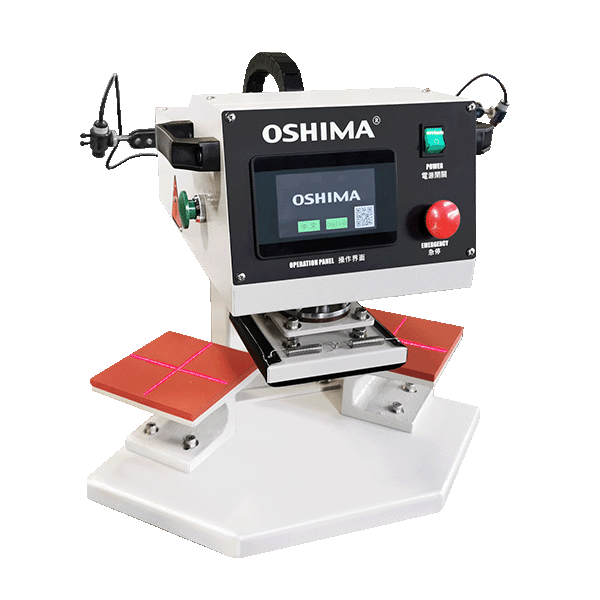

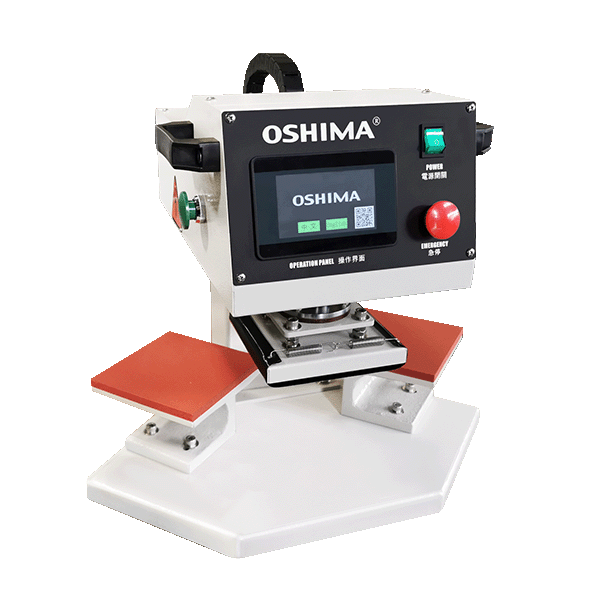

- OP-15AII is the dual-station model
- Pneumatic pressing structure
- Automatic temperature control
- Optional lower mold sizes

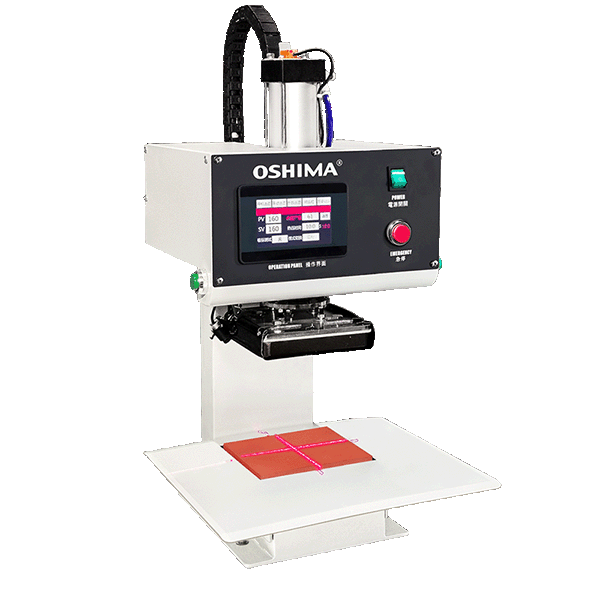

- Optional far-infrared positioning
Description
OP-15A / OP-15AII is designed for small garment labels, brand labels, and small graphic transfer applications. The standard 150 × 150 mm platen makes it suitable for stable small-area heat transfer work in garment production.
Specifications
| Model | OP-15A | OP-15AII |
|---|---|---|
| Power supply | 1P / 220V | |
| Heater (kW) | 0.5 | |
| Air Pressure (MPa) | 0.3 ~ 0.5 | |
| Temperature (℃) | Room temperature ~ 180 | |
| Fusing Time (s) | 30 | |
| Fusing Width | Mould 150 × 150 Standard |
Dual Workstation 150 × 150 |
| Dimensions L × W × H (mm) |
400 × 460 × 650 | 550 × 550 × 500 |
| Packaging Volume L × W × H (mm) |
500 × 640 × 840 | 610 × 600 × 650 |
| N.W / G.W (kg) | 36 / 47 | 45 / 54 |
OP-15A
| Power supply | 1P / 220V |
|---|---|
| Heater (kW) | 0.5 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Temperature (℃) | Room temperature ~ 180 |
| Fusing Time (s) | 30 |
| Fusing Width | Mould 150 × 150 Standard |
| Dimensions L × W × H (mm) |
400 × 460 × 650 |
| Packaging Volume L × W × H (mm) |
500 × 640 × 840 |
| N.W / G.W (kg) | 36 / 47 |
OP-15AII
| Power supply | 1P / 220V |
|---|---|
| Heater (kW) | 0.5 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Temperature (℃) | Room temperature ~ 180 |
| Fusing Time (s) | 30 |
| Fusing Width | Dual Workstation 150 × 150 |
| Dimensions L × W × H (mm) |
550 × 550 × 500 |
| Packaging Volume L × W × H (mm) |
610 × 600 × 650 |
| N.W / G.W (kg) | 45 / 54 |
*Design and specifications subject to change without prior notice.
