Heat Press & Decoration Machines
Heat Press OP-54A/84A/124A
One machine for fusing and heat transfer.
- Features
- Open worktable design for flexible pressing work
- Suitable for fabric piece fusing and flattening
- Can be used for heat labels and graphic transfers
- Automatic temperature control to reduce temperature variation
- Pressure and temperature adjustable from the control panel
- Teflon-covered platen with anti-static and high-temperature resistance
- Emergency stop button and two-hand start operation
- OP-54AII uses lower heating structure
- Optional far-infrared positioning
Description
OP-54A / OP-84A / OP-124A is designed for fabric piece fusing, flattening, heat label transfer, and graphic transfer applications. The open worktable allows operators to handle different garment parts according to production needs. Pressure and temperature can be adjusted from the control panel, while the Teflon-covered platen supports repeated pressing work. OP-54A is suitable for general fabric pieces, OP-84A is suitable for upper-body garment parts, and OP-124A is suitable for trousers. Standard models do not include positioning. Far-infrared positioning is available as an option.
Specifications
| Model | OP-54A | OP-84A | OP-124A |
|---|---|---|---|
| Power Supply | 1P / 220V | ||
| Heater (kW) | 2.85 | 4.2 | 4.2 |
| Working Size (mm) | 500 × 400 | 800 × 400 | 1200 × 400 |
| Motor (kW) | 0.25 | ||
| Temperature (℃) | Room Temperature ~ 200 | ||
| Fusing Time (s) | 0 ~ 30 | ||
| Dimensions L × W × H (mm) |
1000 × 660 × 500 | 1000 × 800 × 500 | 1200 × 1000 × 500 |
| Packaging Volume L × W × H (mm) |
1100 × 760 × 600 | 1100 × 900 × 600 | 1360 × 1120 × 680 |
| N.W. / G.W. (kg) | 190 / 225 | 205 / 240 | 235 / 280 |

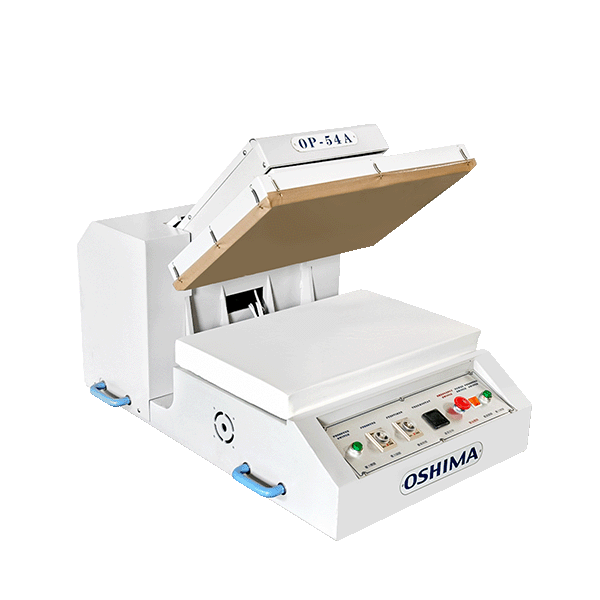

OP-54A
| Power Supply | 1P / 220V |
|---|---|
| Heater (kW) | 2.85 |
| Working Size (mm) | 500 × 400 |
| Motor (kW) | 0.25 |
| Temperature (℃) | Room Temperature ~ 200 |
| Fusing Time (s) | 0 ~ 30 |
| Dimensions L × W × H (mm) |
1000 × 660 × 500 |
| Packaging Volume L × W × H (mm) |
1100 × 760 × 600 |
| N.W. / G.W. (kg) | 190 / 225 |

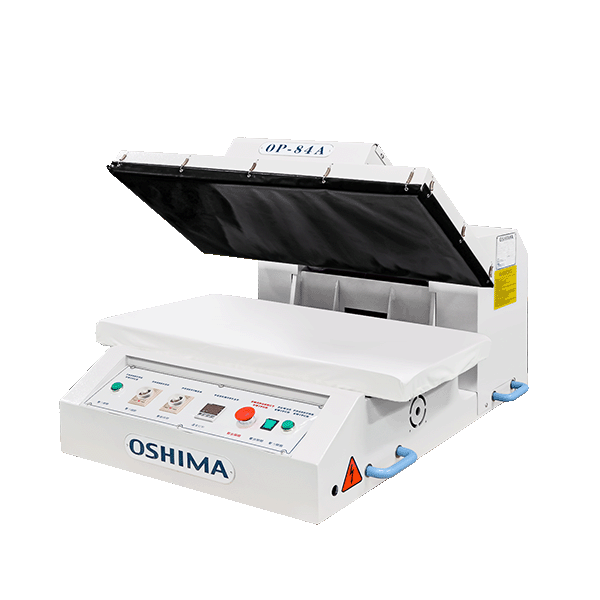

OP-84A
| Power Supply | 1P / 220V |
|---|---|
| Heater (kW) | 4.2 |
| Working Size (mm) | 800 × 400 |
| Motor (kW) | 0.25 |
| Temperature (℃) | Room Temperature ~ 200 |
| Fusing Time (s) | 0 ~ 30 |
| Dimensions L × W × H (mm) |
1000 × 800 × 500 |
| Packaging Volume L × W × H (mm) |
1100 × 900 × 600 |
| N.W. / G.W. (kg) | 205 / 240 |

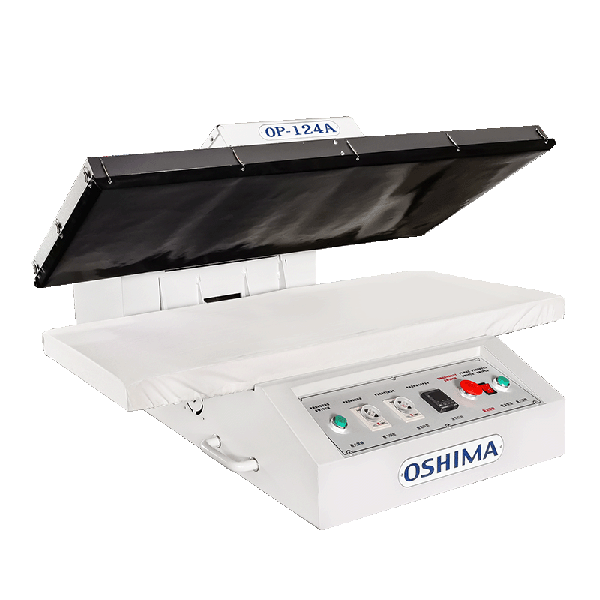

OP-124A
| Power Supply | 1P / 220V |
|---|---|
| Heater (kW) | 4.2 |
| Working Size (mm) | 1200 × 400 |
| Motor (kW) | 0.25 |
| Temperature (℃) | Room Temperature ~ 200 |
| Fusing Time (s) | 0 ~ 30 |
| Dimensions L × W × H (mm) |
1200 × 1000 × 500 |
| Packaging Volume L × W × H (mm) |
1360 × 1120 × 680 |
| N.W. / G.W. (kg) | 235 / 280 |
*Design and specifications subject to change without prior notice.
