Seamless & Ultrasonic Machines

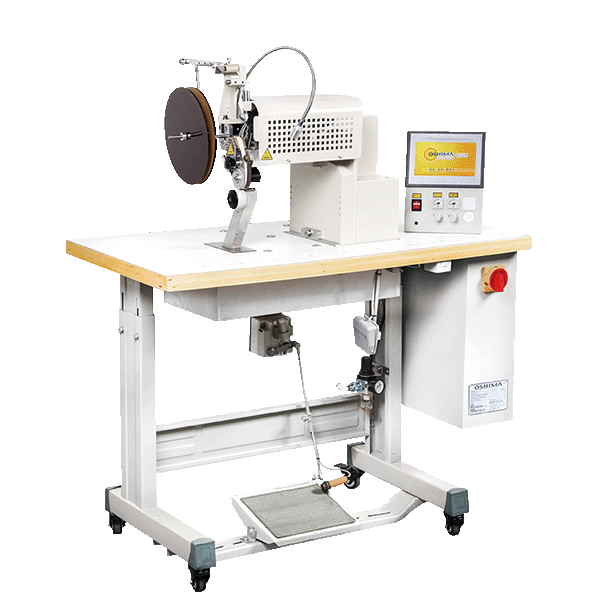

Seamless Hem/Seam Fusing Machine OP-114S

Curved hemming for underwear center-front parts.
Features
Designed for curved hemming, sealing, and binding applications
Suitable for women’s underwear, functional apparel, bodysuits, and fashion garments
Especially suitable for underwear center-front processing
Equipped with 4 heating systems
Independently adjustable upper and lower blowing functions
Adjustable belt speed and pressure
Digital display for parameter monitoring
Stores up to 10 sets of operation parameters
5.7-inch touchscreen control interface

Description

OP-114S is designed for curved garment parts and detailed seamless finishing applications, especially for hemming, sealing, and binding work that requires more controlled handling. The machine is suitable for women’s underwear, functional apparel, bodysuits, and fashion garments. It is especially useful for underwear center-front processing, where accurate curved-area handling is required. The machine is equipped with 4 heating systems to support controlled heat application during bonding. Upper and lower blowing, belt speed, and pressure can be adjusted according to fabric type, adhesive tape material, and processing requirements. The digital display and 5.7-inch touchscreen interface make parameter setting and monitoring easier, while 10 operation settings can be stored for repeated production.

Added to Inquiry list.

Specifications

Model OP-114S
Voltage (V) 220
Heater Power (kW) 1.2
Motor Power (kW) 0.13 kW 24V
Speed (Hz) 0 ~ 9999
Pressure (MPa) 0.5
Hot Air Temperature (℃) 0 ~ 360
Belt Temperature (℃) 0 ~ 260
Dimensions
L × W × H (mm)
1100 × 700 × 1200
Packaging Volume
L × W × H (mm)
1200 × 800 × 1300
N.W. (kg) 78
OP-114S
Voltage (V) 220
Heater Power (kW) 1.2
Motor Power (kW) 0.13 kW 24V
Speed (Hz) 0 ~ 9999
Pressure (MPa) 0.5
Hot Air Temperature (℃) 0 ~ 360
Belt Temperature (℃) 0 ~ 260
Dimensions
L × W × H (mm)
1100 × 700 × 1200
Packaging Volume
L × W × H (mm)
1200 × 800 × 1300
N.W. (kg) 78
*Design and specifications subject to change without prior notice.
