Seamless & Ultrasonic Machines

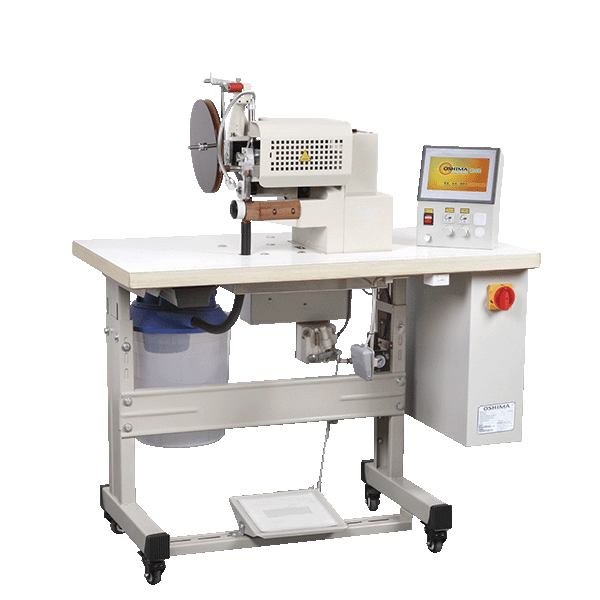

Seamless Clothing Adhesive Machine OP-115
- Features
- Designed for large-radius curved taping applications
- Suitable for seamless underwear, bras, and no-show socks
- Built-in cutter for trimming excess threads and edges
- Four independently adjustable heating systems
- Four independently adjustable blowing systems
- Adjustable upper and lower roller pressure
- Adjustable upper and lower roller speed
- Digital display for parameter monitoring
- Stores up to 10 sets of operation parameters
- Touchscreen control interface
- Optional attachments available for different production needs
Description
OP-115 is designed for curved garment parts and large-radius taping applications. The machine is suitable for seamless underwear, bras, no-show socks, and other garment parts that require curved tape bonding. Its built-in cutter helps trim excess threads and edges during operation, making it suitable for seamless products that require a clean finished appearance. The machine is equipped with four independently adjustable heating systems and four independently adjustable blowing systems. Upper and lower roller pressure and speed can be adjusted according to fabric type, tape material, and processing conditions. The touchscreen interface and digital display allow operators to set and monitor parameters, with 10 operation settings available for repeated production.
Specifications
| Model | OP-115 |
|---|---|
| Voltage (V) | 220 |
| Heater Power (kW) | 1.05 |
| Motor Power (kW) | 0.23 |
| Speed (Hz) | 0 ~ 9999 |
| Pressure (MPa) | 0.5 |
| Hot Air Temperature (℃) | 0 ~ 360 |
| Dimensions L × W × H (mm) |
1100 × 600 × 1200 |
| Packaging Volume L × W × H (mm) |
1200 × 700 × 1300 |
| N.W. / G.W. (kg) | 75 / 85 |
| Voltage (V) | 220 |
|---|---|
| Heater Power (kW) | 1.05 |
| Motor Power (kW) | 0.23 |
| Speed (Hz) | 0 ~ 9999 |
| Pressure (MPa) | 0.5 |
| Hot Air Temperature (℃) | 0 ~ 360 |
| Dimensions L × W × H (mm) |
1100 × 600 × 1200 |
| Packaging Volume L × W × H (mm) |
1200 × 700 × 1300 |
| N.W. / G.W. (kg) | 75 / 85 |
