Seamless & Ultrasonic Machines

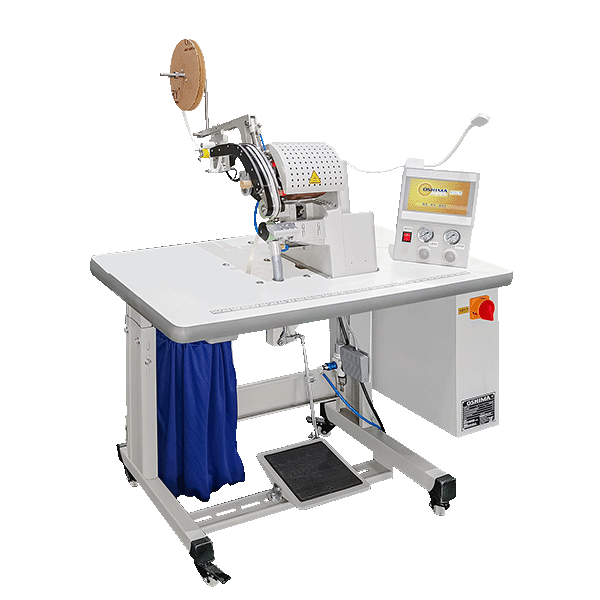

Seamless Clothing Adhesive/Tape Machine OP-115S
Hot air bonding for straight, flat, and curved seams.
- Features
- Suitable for straight, flat, and curved bonding applications
- Applicable to sportswear, activewear, seamless underwear, swimwear, cycling wear, and outdoor jackets
- Wide worktable for easier garment handling
- Equipped with cutter and preheating function
- Adjustable airflow, temperature, and pressure
- Supports continuous taping and bonding operations
- Stores up to 10 sets of operation parameters
- Suitable for seam taping, fabric bonding, and garment reinforcement
Description
OP-115S is designed for straight, flat, and curved taping applications in garment production. The machine can be used for sportswear, activewear, seamless underwear, swimwear, cycling wear, outdoor jackets, and other functional garments. Its wide worktable provides more space for handling garment pieces, while the cutter and preheating function help simplify preparation before taping. The hot air bonding system allows airflow, temperature, and pressure to be adjusted independently according to fabric type, tape material, and bonding requirements. Up to 10 operation parameters can be stored for repeated or multi-style production.
Specifications
| Model | OP-115S |
|---|---|
| Voltage (V) | 220 |
| Heater Power (kW) | 2.6 |
| Motor Power (kW) | 0.2 |
| Speed (Hz) | 0 ~ 9999 |
| Pressure (MPa) | 0.5 |
| Hot Air Temperature (℃) | 0 ~ 360 |
| Dimensions L × W × H (mm) |
1080 × 550 × 1200 |
| Packaging Volume L × W × H (mm) |
1210 × 680 × 1380 |
| N.W. / G.W. (kg) | 60 / 75 |
OP-115S
| Voltage (V) | 220 |
|---|---|
| Heater Power (kW) | 2.6 |
| Motor Power (kW) | 0.2 |
| Speed (Hz) | 0 ~ 9999 |
| Pressure (MPa) | 0.5 |
| Hot Air Temperature (℃) | 0 ~ 360 |
| Dimensions L × W × H (mm) |
1080 × 550 × 1200 |
| Packaging Volume L × W × H (mm) |
1210 × 680 × 1380 |
| N.W. / G.W. (kg) | 60 / 75 |
*Design and specifications subject to change without prior notice.
