Seamless & Ultrasonic Machines

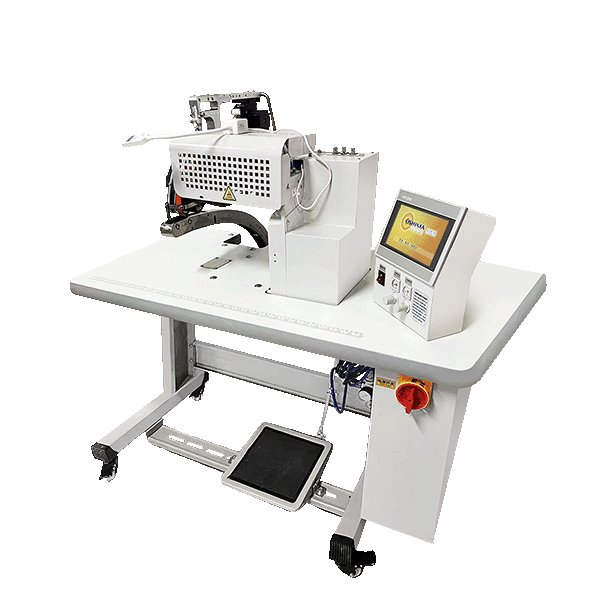

Seamless Clothing Adhesive/Tape Machine OP-115ST
Side taping for pants and tubular garments.
- Features
- Designed for trouser side tape bonding
- Suitable for tubular garment parts and curved seam applications
- Applicable to yoga pants, leggings, and stretch pants
- Wide worktable for easier pants handling
- Adjustable airflow for hot air bonding
- Supports continuous tape bonding operation
- Stores up to 10 sets of operation parameters
- Suitable for side strip bonding and seam reinforcement
Description
OP-115ST is designed for trouser side tape bonding, tubular garment parts, and curved seam applications. The machine is suitable for yoga pants, leggings, stretch pants, and similar garment styles that require side strip bonding or seam reinforcement. Its wide worktable provides more handling space for tubular or curved pants structures. The hot air system allows airflow adjustment according to tape material, fabric type, and bonding requirements. Up to 10 operation parameters can be stored, making repeated production settings easier to manage.
Specifications
| Model | OP-115ST |
|---|---|
| Voltage (V) | 220 |
| Heater Power (kW) | 2.6 |
| Motor Power (kW) | 0.2 |
| Speed (Hz) | 0 ~ 9999 |
| Pressure (MPa) | 0.5 |
| Hot Air Temperature (℃) | 0 ~ 360 |
| Belt Temperature (℃) | 0 ~ 260 |
| Dimensions L × W × H (mm) |
1100 × 600 × 1250 |
| Packaging Volume L × W × H (mm) |
1200 × 650 × 1300 |
| N.W. / G.W. (kg) | 75 / 90 |
OP-115ST
| Voltage (V) | 220 |
|---|---|
| Heater Power (kW) | 2.6 |
| Motor Power (kW) | 0.2 |
| Speed (Hz) | 0 ~ 9999 |
| Pressure (MPa) | 0.5 |
| Hot Air Temperature (℃) | 0 ~ 360 |
| Belt Temperature (℃) | 0 ~ 260 |
| Dimensions L × W × H (mm) |
1100 × 600 × 1250 |
| Packaging Volume L × W × H (mm) |
1200 × 650 × 1300 |
| N.W. / G.W. (kg) | 75 / 90 |
*Design and specifications subject to change without prior notice.
