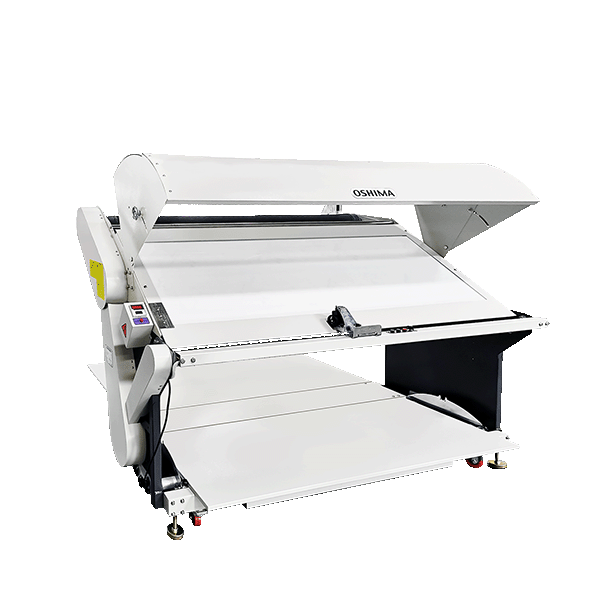

Fabric Inspection Machine
No Edge Alignment Fabric Inspection OC-1
Essential.
- Features
- Designed for knit fabric inspection
- No edge alignment required
- Suitable for elastic or unstable fabric edges
- Digital length measurement accuracy up to 0.1 yard
- Supports roll-to-flat, flat-to-roll, flat-to-flat, and roll-to-roll configurations
Description
This machine is designed for stable inspection of knit fabrics, especially materials with high elasticity or fabric edges that are difficult to control during conventional inspection. It helps garment and textile factories inspect fabric before cutting while maintaining reliable length management.
With flexible configuration options, the machine can be adapted to different production workflows, including roll-based and piece-based fabric handling. It is suitable for manufacturers that need a practical inspection solution for knit materials before spreading, cutting, or further processing.
Specifications
| Model | OC-1 |
| Power supply | 1P / 220V |
| Fabric diameter (mm) | 500 |
| Fabric weight (kg) | 80 |
| Width of roller (mm/inch) | 2100 / 82" |
| Inspection speed (yard/min) | 10–80 |
| Dimensions L × W × H (mm) | 2450 × 1460 × 1720 |
| Packaging volume L × W × H (mm) | 2600 × 1580 × 1920 |
| N.W / G.W (kg) | 350 / 500 |
Design and specifications subject to change without prior notice.
