Shirt & Garment Part Preparation

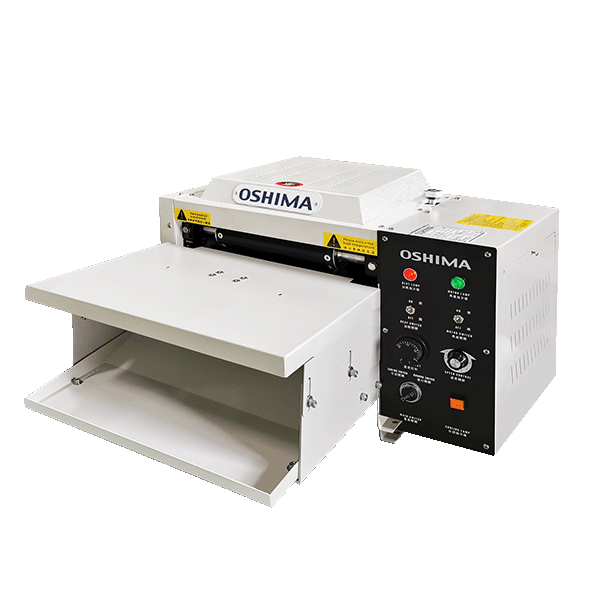

Pocket Creaser OP-301
Pocket creasing at 400–500 pieces per hour.
- Features
- Conveyor-type continuous pressing machine
- Mold change within approximately 3 minutes
- Thermostat temperature control
- Automatic cooling system
- Production capacity of 400–500 pieces per hour
- Suitable for pocket edges, sleeves, flaps, and light fabric parts
- Optional pocket mold based on customer size
Description
OP-301 is designed for continuous pocket creasing and pressing in garment production. It can be used for pocket edge pressing, sleeve parts, flaps, and thin fabric components that require shaped creasing before sewing.
The machine is also suitable for five-sided and six-sided thin fabric pieces. For custom pocket applications, the pocket mold can be made according to the size provided by the customer.
Specifications
| Model | OP-301 |
|---|---|
| Model | OP-301 |
| Power supply | 1P / 220V |
| Use pressure (MPa) | 0.1–0.3 |
| Motor (kW) | 0.025 |
| Heater (kW) | 2 |
| Temperature (°C) | Room temperature–180 |
| Dimensions L × W × H (mm) | 900 × 690 × 440 |
| Packing volume L × W × H (mm) | 100 × 860 × 650 |
| N.W / G.W (kg) | 90 / 110 |
*Design and specifications subject to change without prior notice.
