Shirt & Garment Part Preparation
Pocket Creaser OP-302/303
Pocket creasing with ±3°C temperature control.
- Features
- Stationary pocket creasing and pressing machine
- Mold change within approximately 3 minutes
- Electronic thermostat with ±3°C temperature control
Description
OP-302 and OP-303 are designed for pocket creasing and pressing in garment production. The machine is suitable for pocket parts that require shaped pressing before sewing.

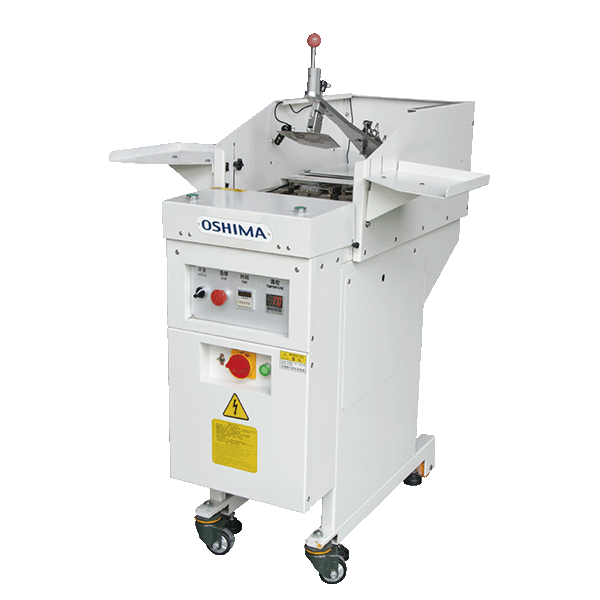

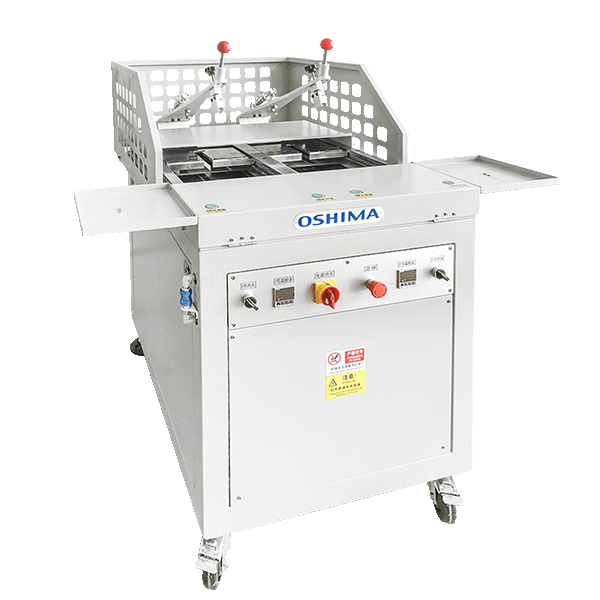

OP-302 is the single-station model with capacity of 100-200 pieces per hour for smaller production needs. OP-303 is the double-station model with capacity of 300-450 pieces per hour for higher output requirements. Pocket molds can be made within 120–195 mm based on the size provided by the customer. Other mold sizes are available upon request and should be specified when ordering.
Specifications
| Model | OP-302 | OP-303 |
|---|---|---|
| Model | OP-302 | OP-303 |
| Power supply | 1P 220V - 50 / 60Hz | 1P 220V - 50 / 60Hz |
| Heater (kW) | 2 | 3 |
| Mold quantity (pcs) | 1 | 2 |
| Replacing time of mold (min) | 3 | 3 |
| Pressing width (mm) | 68–168 | 68–205 |
| Pressing length (mm) | 80–150 | 80–260 |
| Dimensions L × W × H (mm) | 1025 × 435 × 1185 | 1025 × 735 × 1270 |
| Packing volume L × W × H (mm) | 1100 × 540 × 1400 | 1100 × 840 × 1500 |
| N.W / G.W (kg) | 150 / 210 | 244 / 304 |
*Design and specifications subject to change without prior notice.
