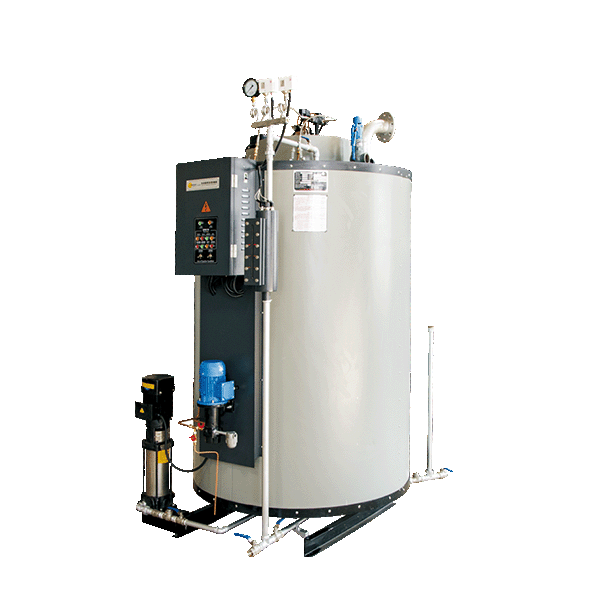

Internal-Combustion-Oil-Fired-Boiler-LSS-0.2-0.5T-600x600

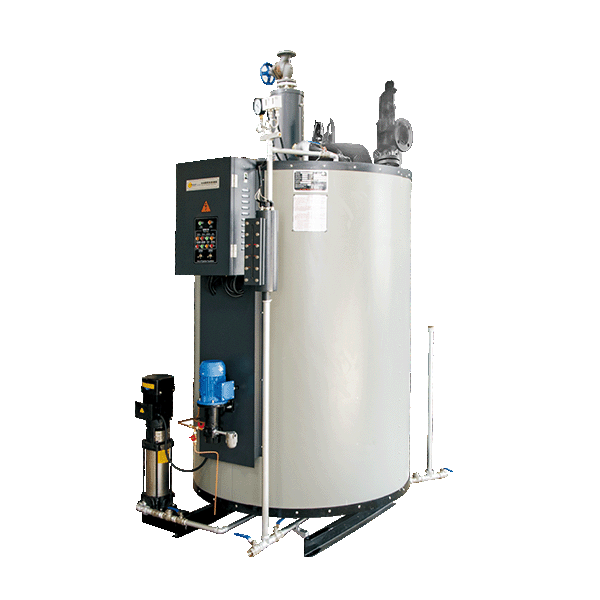

Internal-Combustion-Oil-Fired-Boiler-LSS-0.5-2.0T-600x600

Industrial Oil-Fired Steam Boilers

Vertical Oil-Fired Steam Boiler | LSS Series

Compact oil steam with fast start-up.

Features: Steam capacity from 200 to 2,000 kg/h; Rated steam pressure from 0.7 to 1.0 MPa; Design thermal efficiency of ≥92%; Compact vertical internal-combustion structure; Rapid cold start and pressure recovery; Automatic pressure, temperature and water-level control; Light oil and heavy oil options according to model; Pre-assembled boiler body for easier on-site installation

Description

The OSHIMA LSS Series is a vertical oil-fired steam boiler designed for factories that require a compact steam supply system. The series covers steam capacities from 200 to 2,000 kg/h and rated steam pressures from 0.7 to 1.0 MPa.

Its vertical internal-combustion structure uses vertically arranged water tubes to transfer heat and generate steam while keeping the installation footprint relatively compact. The boiler is designed for rapid cold start and fast temperature and pressure recovery when steam demand resumes or changes during production.

Automatic pressure, temperature and water-level control support daily operation, while the boiler body is pre-assembled before delivery to reduce on-site installation work. Depending on the selected model and configuration, the LSS Series can operate with light oil or heavy oil.

Add Inquiry (0)

Specifications

Category	Item	Unit	LSS-0.2-0.7-Y, Q	LSS-0.3-0.7-Y, Q	LSS-0.5-0.7-Y, Q	LSS-0.75-0.7-Y, Q	LSS-1-1.0-Y, Q	LSS-1.5-1.0-Y, Q	LSS-2.0-1.0-Y, Q
Specification	Rated Evaporation	kg/h	200	300	500	750	1000	1500	2000
	Rated Steam Pressure	MPa	0.7				1
	Rated Steam Temperature	℃	170				184
	Boiler Full Water Volume	L	130	150	250	290	380	530	890
	Design Thermal Efficiency	%	≥92
Heated Surface	Ontology	m²	6.2	7.53	8.93	10.66	12.86	24.5	39.4
Heated Surface	Economizer (Atmospheric)	m²	2.51		—
Fuel Consumption	Light Oil	kg/h	13.42	20.12	33.36	50.03	67.88	99.2	135.6
Fuel Consumption	Heavy Oil	kg/h	—			55.5	74	109.2	148
Pipe	Main Steam Valve Diameter	DN	40			50		65	80
	Water Inlet Diameter	DN	G3/4"			G1"			G1-1/4"
	Safety Valve Diameter	DN	G1 1/2" (DN40)			40		50	65
	Blowoff Valve Diameter	DN	40
	Chimney	Φmm	250		300			350
Overall Size	Weight	kg	959	1022	1500	1900	2300	2900	3700
	Length	mm	1350		1840	1890	2000	2340	2650
	Width	mm	1200		1690	1750	1850	2250	2350
	Height	mm	2257	2407	2552	2708	2790	3100	3650

*Design and specifications subject to change without prior notice.
