Garment & Textile Quality Inspection

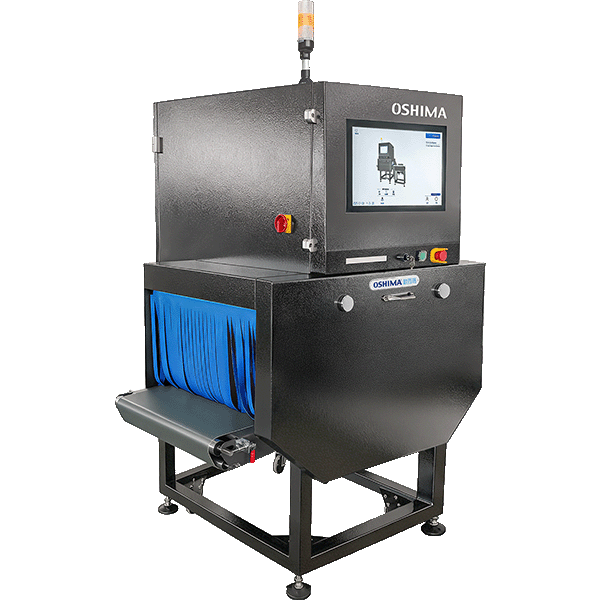

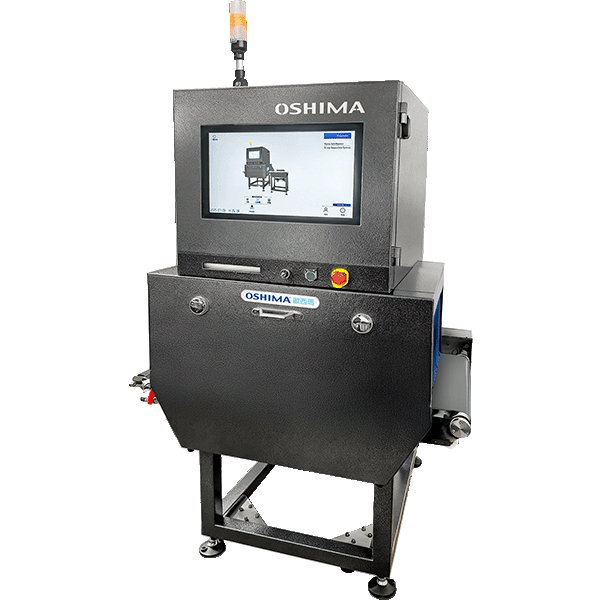

Textile AI X-ray Inspection System OX-400/600
- Features
- X-ray inspection machine for textile and toy manufacturing
- Designed for foreign object detection and quality control
- Detects metal, glass, stone, high-density rubber, and selected plastics
- Suitable for garments, textile products, accessories, and toys
- AI-assisted image processing for clearer inspection results
- 21.5-inch touchscreen operation interface
- Stores over 1,000 product settings
- Supports multiple rejection methods for defective products
- Modular design for easier cleaning and maintenance
- Supports remote monitoring and diagnosis via 4G or Wi-Fi
Description
OX-400 / OX-600 is designed for textile, toy, accessory, and non-food production lines that require internal foreign object inspection. It uses X-ray imaging to detect hidden contaminants such as metal, glass, stone, high-density rubber, and selected plastics inside products. The system combines AI-assisted image processing with a 21.5-inch touchscreen interface and stores over 1,000 product settings for different inspection requirements. For production lines handling multiple product types, operators can switch between saved inspection parameters without rebuilding settings from the beginning. The machine supports multiple rejection methods for removing defective products from the line. Its modular structure supports cleaning and maintenance access, while 4G and Wi-Fi remote connection allow equipment monitoring and diagnostic support when needed.
Specifications
| Model | OX-400 | OX-600 |
|---|---|---|
| Power Supply | 1P AC220V 50/60Hz | 1P AC220V 50/60Hz |
| Rated Power (W) | 1500 | 1500 |
| Detection Channel Height (mm) | 150 | 300 |
| Detection Channel Width (mm) | 400 | 600 |
| Maximum Detection Accuracy | Fe: Φ ≥ 0.6 mm Stainless steel ball: Φ ≥ 0.6 mm Ceramic ball: Φ ≥ 0.8 mm Glass ball: Φ ≥ 1.2 mm Metal wire: Φ ≥ 0.5 mm |
Fe: Φ ≥ 0.6 mm Stainless steel ball: Φ ≥ 0.6 mm Ceramic ball: Φ ≥ 0.8 mm Glass ball: Φ ≥ 1.2 mm Metal wire: Φ ≥ 0.5 mm |
| Conveyor Speed (m/min) | 10–60 | 10–60 |
| Alarm Method | Alarm and machine stop | Alarm and machine stop |
| X-ray Output Power | 210W–350W optional | 210W–350W optional |
| X-ray Voltage | 80–120KV optional | 80–120KV optional |
| X-ray Current | Adjustable | Adjustable |
| X-ray Emission Dose | < 1 μSv/h, including conveyor inlet and outlet | < 1 μSv/h, including conveyor inlet and outlet |
| Network Connection | 4G / Wi-Fi, supports remote operation | 4G / Wi-Fi, supports remote operation |
| Reject Methods | Alarm stop / flipper / push rod / swing arm optional | Alarm stop / push rod |
| Machine Dimensions L × W × H (mm) | 1200 × 1009 × 1887 | 1512 × 1285 × 2285 |
| Packing Dimensions L × W × H (mm) | 1300 × 1200 × 1950 | 1610 × 1360 × 2190 |
| N.W. / G.W. (kg) | 250 / 300 | 420 / 520 |
