Seamless & Ultrasonic Machines

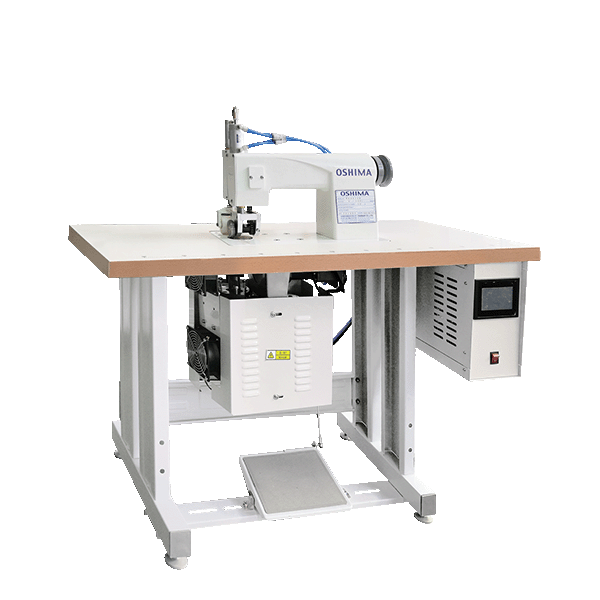

Ultrasonic Sewing Machine MB9018B
Ultrasonic edge sealing and embossing machine.
- Features
- Suitable for ultrasonic edge sealing, sewing, cutting, bonding, and embossing
- Applicable to home textiles, decorative materials, leather embossing, masks, and surgical gowns
- Helps reduce fraying and shrinkage issues from traditional sewing
- Plug-and-play operation without preheating
- Equipped with 7 interchangeable roller molds
- Different patterns and edge effects can be created by changing molds
- Suitable for high-volume continuous production
Description
MB9018B is designed for ultrasonic edge sealing, sewing, cutting, bonding, and embossing applications. The machine can be used for home textile products, decorative materials, leather embossing, masks, surgical gowns, and other medical textile products. Ultrasonic processing helps seal fabric edges while reducing fraying issues commonly found in traditional sewing. MB9018B is plug-and-play and does not require preheating. It comes with 7 interchangeable roller molds, allowing users to create different patterns, edge finishes, and processing effects according to production needs.
Specifications
| Model | MB9018B |
|---|---|
| Output Voltage | 0-2000V AC |
| Output Rate (W) | 0-2000 (Adjustable) |
| Adjustable (kHz) | 20 |
| Air Pressure (MPa) | 0.3 |
| Accuracy (Hz) | ±0.5 |
| Wheel Rotation Speed (m/min) | 0-16 |
| Standard Wheel Size | Wheel width is 1cm, triple dashed tooth width is 6mm, spacing is 1mm, and tooth depth is 0.8mm. |
| Customize Wheel Pattern | Customization is possible. 1.0-1.2mm, 0.8-1.0mm solid line width, and a flat wheel no broader than 5mm. |
| Working Environment Temperature (℃) | +5 ~ +50 |
| Dimensions L × W × H (mm) |
1200 × 500 × 1150 |
| Packaging Volume L × W × H (mm) |
1280 × 620 × 1320 |
| N.W. / G.W. (kg) | 90 / 137 |
MB9018B
| Output Voltage | 0-2000V AC |
|---|---|
| Output Rate (W) | 0-2000 (Adjustable) |
| Adjustable (kHz) | 20 |
| Air Pressure (MPa) | 0.3 |
| Accuracy (Hz) | ±0.5 |
| Wheel Rotation Speed (m/min) | 0-16 |
| Standard Wheel Size | Wheel width is 1cm, triple dashed tooth width is 6mm, spacing is 1mm, and tooth depth is 0.8mm. |
| Customize Wheel Pattern | Customization is possible. 1.0-1.2mm, 0.8-1.0mm solid line width, and a flat wheel no broader than 5mm. |
| Working Environment Temperature (℃) | +5 ~ +50 |
| Dimensions L × W × H (mm) |
1200 × 500 × 1150 |
| Packaging Volume L × W × H (mm) |
1280 × 620 × 1320 |
| N.W. / G.W. (kg) | 90 / 137 |
*Design and specifications subject to change without prior notice.
