Pressing & Ironing Equipment

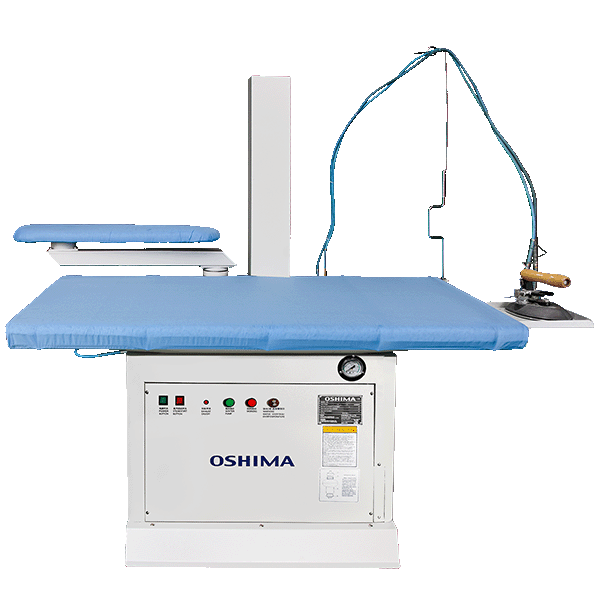

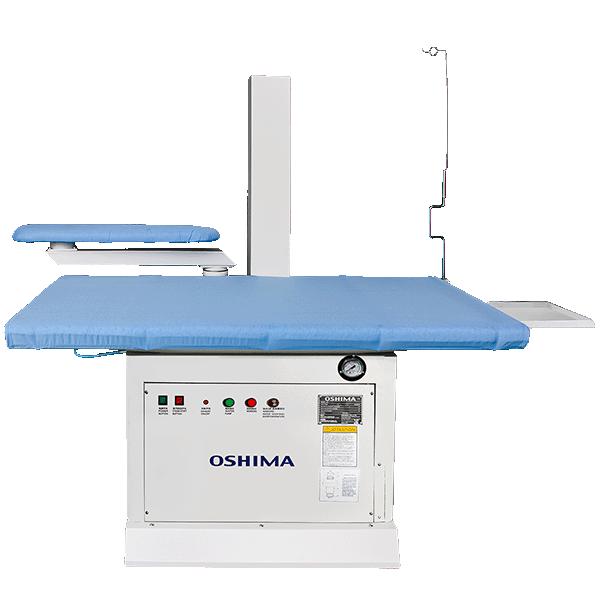

Vacuum Ironing Table with Built-in Electric Boiler OPB-128SI / 159SI
Steam, vacuum, and boiler in one table.
- Features
- Vacuum ironing table with built-in electric boiler
- Suitable for factories without a central steam system
- Integrated steam generation, heating, and vacuum suction
- Upper exhaust with single buck as standard
- Automatic return-water circulation structure
- Worktable size can be customized
- Equipped with brake castors for easier movement
- Optional iron and hose, flat or slanted table surface, with or without buck
Description
OPB-128SI / OPB-159SI is designed for ironing areas that need steam supply without installing a central boiler system.
The machine integrates the ironing table, electric boiler, steam supply, and vacuum suction in one unit. The return-water structure connects the iron return line to the boiler water tank, forming an automatic circulation system.

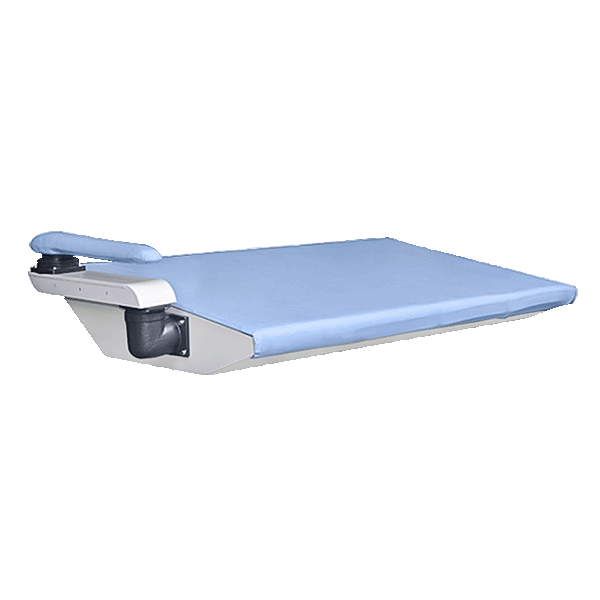

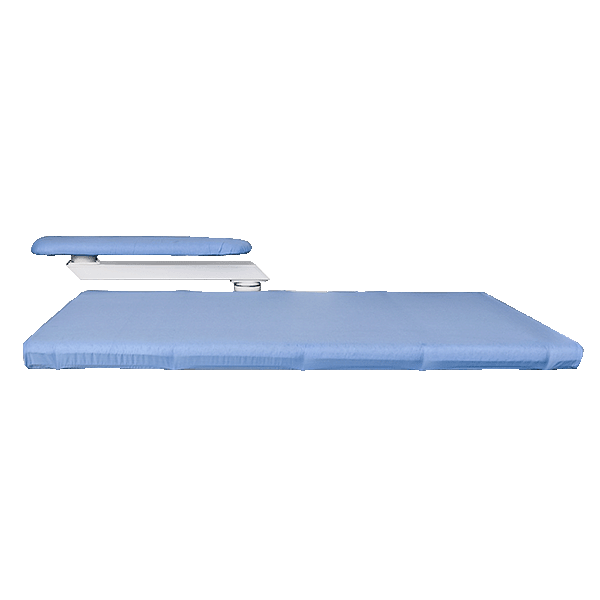

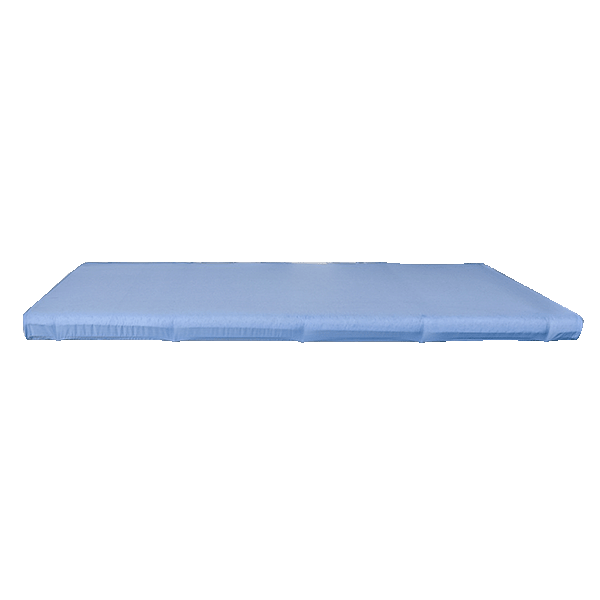

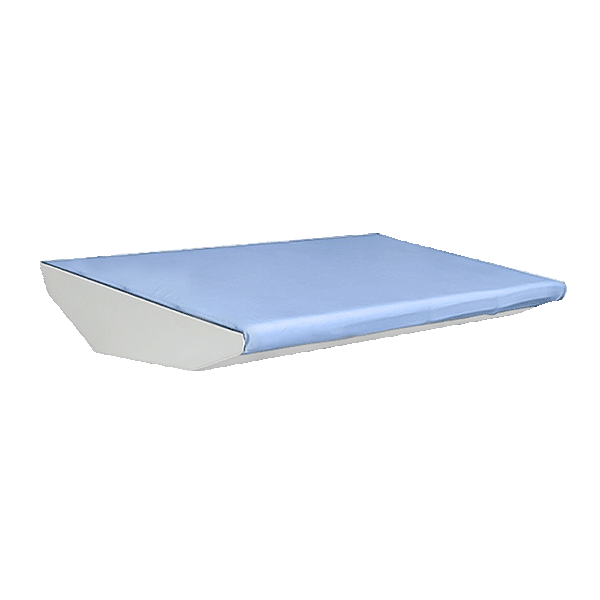

The standard model includes a single buck, upper exhaust, and built-in steam. Optional configurations include hose with iron, flat table with buck, flat table without buck, slanted table with buck, and slanted table without buck.
Specifications
| Model | OPB-128SIB | OPB-159SIB |
|---|---|---|
| Power supply | 1P / 220V 3P / 380V |
1P / 220V 3P / 380V |
| Motor (kW) | 0.37 + 0.75 | 0.37 + 0.75 |
| Heater (kW) | 6 or 9 | 6 or 9 |
| Table size (mm) | 1200 × 800 | 1500 × 900 |
| Dimensions L × W × H (mm) |
1600 × 1200 × 1750 | 1900 × 1200 × 1750 |
| Packing volume L × W × H (mm) |
Base: 1020 × 1180 × 870 / crate Arm: 940 × 280 × 180 / carton box Table: 1300 × 870 × 180 / carton box |
Base: 1020 × 1180 × 870 / crate Arm: 940 × 280 × 180 / carton box Table: 1540 × 1080 × 180 / carton box |
| N.W / G.W (kg) | 230 / 255 | 230 / 255 |
OPB-128SIB
| Power supply | 1P / 220V 3P / 380V |
|---|---|
| Motor (kW) | 0.37 + 0.75 |
| Heater (kW) | 6 or 9 |
| Table size (mm) | 1200 × 800 |
| Dimensions L × W × H (mm) |
1600 × 1200 × 1750 |
| Packing volume L × W × H (mm) |
Base: 1020 × 1180 × 870 / crate Arm: 940 × 280 × 180 / carton box Table: 1300 × 870 × 180 / carton box |
| N.W / G.W (kg) | 230 / 255 |
OPB-159SIB
| Power supply | 1P / 220V 3P / 380V |
|---|---|
| Motor (kW) | 0.37 + 0.75 |
| Heater (kW) | 6 or 9 |
| Table size (mm) | 1500 × 900 |
| Dimensions L × W × H (mm) |
1900 × 1200 × 1750 |
| Packing volume L × W × H (mm) |
Base: 1020 × 1180 × 870 / crate Arm: 940 × 280 × 180 / carton box Table: 1540 × 1080 × 180 / carton box |
| N.W / G.W (kg) | 230 / 255 |
*Design and specifications subject to change without prior notice.
