Garment Pressing & Ironing Equipment
Vacuum & Blowing Ironing Table OP-939/949/959
- Features
- Multi-function vacuum and blowing ironing table
- Integrated compact table and machine body
- Adjustable table height
- Vacuum function for holding fabric flat
- Reverse motor blowing function for cooling after ironing
- Heat-resistant ironing cloth and moisture-resistant sponge
- Optional single buck, heated table surface, or heated table with buck
Description
OP-939 / OP-949 / OP-959 are vacuum and blowing ironing tables for garment finishing, designed for garment areas and materials that are difficult to handle on a conventional flat ironing table.
During pressing, the vacuum function helps hold the garment or fabric in position and keeps the working surface flat. After steam ironing, the motor can be reversed to provide blowing air for cooling and setting. The table height can be adjusted, and optional configurations include a single buck, a heated table surface, or heating for both the table and buck.

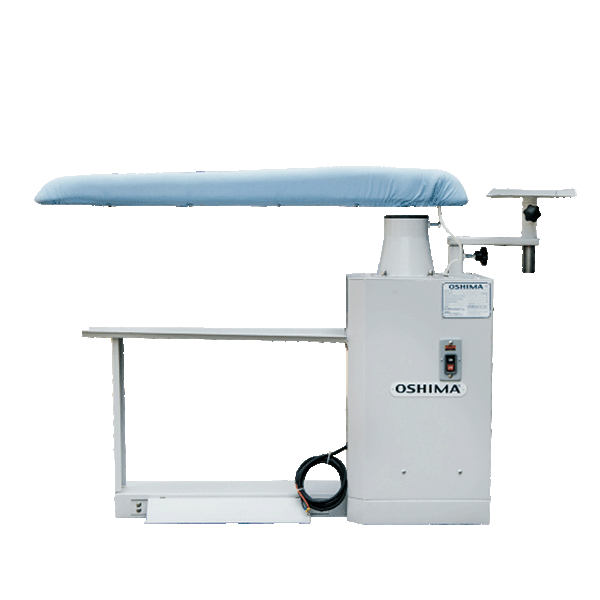

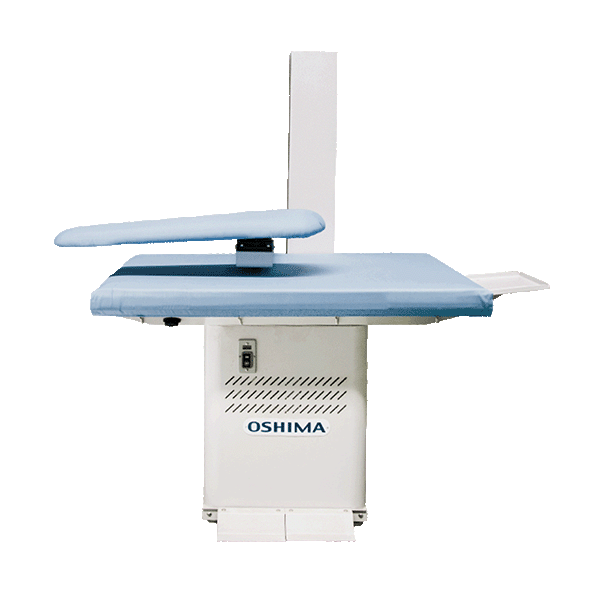

The three models are intended for different ironing applications. OP-939 has a narrow 1152 × 114 mm worktable for shirt sleeves, trouser seams and other narrow areas. OP-949 provides a 1200 × 800 mm table for shirt shoulders, backs and general garment pressing. OP-959, also with a 1200 × 800 mm table, is configured for softer materials.
The appropriate model can be selected according to the garments being produced, the areas that require pressing and whether a heated table or additional buck is needed.
Specifications
| Model | OP-939 | OP-949 | OP-959 |
|---|---|---|---|
| Model | OP-939 | OP-949 | OP-959 |
| Power supply | 1P / 220V, 3P / 380V | 1P / 220V, 3P / 380V | 1P / 220V, 3P / 380V |
| Motor power (kW) | 0.75 | 0.75 | 0.75 |
| Heater (kW) | 1.2 | - | 1.4 |
| Table size (mm) | 1152 × 114 | 1200 × 800 | 1200 × 800 |
| Dimensions L × W × H (mm) | 1300 × 500 × 1000 | 1520 × 830 × 1700 | 1450 × 960 × 1100 |
| Packing volume L × W × H (mm) | 1420 × 640 × 1150 | 1530 × 960 × 1800 | 1580 × 1000 × 1200 |
| N.W / G.W (kg) | 68 / 88 | 68 / 88 | 80 / 105 |
