Pressing & Ironing Equipment

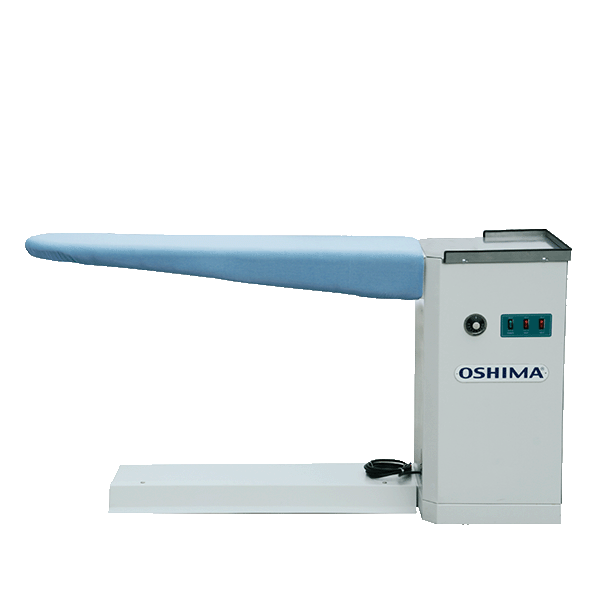

Vacuum Ironing Table OPB-780
Pointed ironing table for detailed garment pressing.
- Features
- Multi-function pointed ironing table
- Compact integrated table and machine body
- Vacuum function for keeping fabric flat
- Heat-resistant ironing cloth
- Moisture-resistant sponge

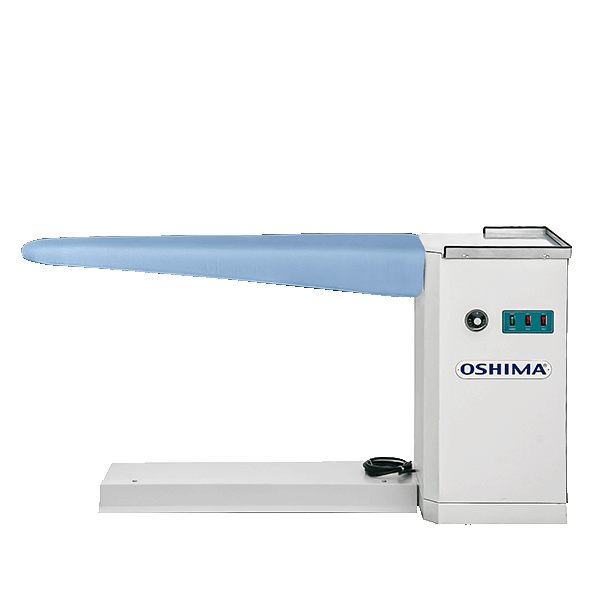

- Standard model without buck

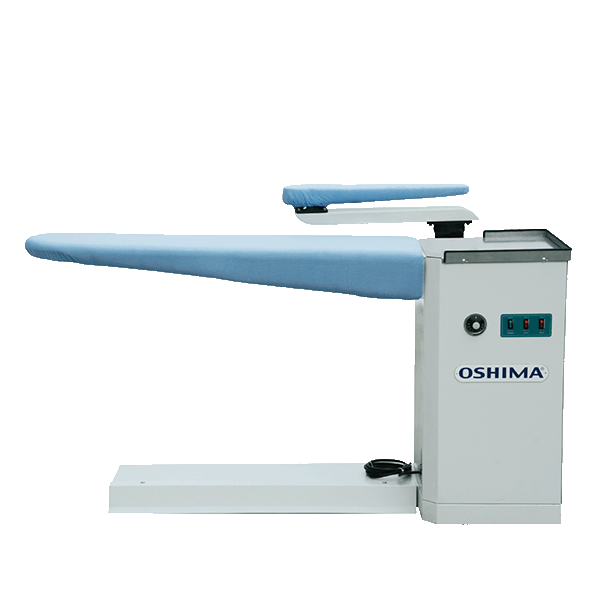

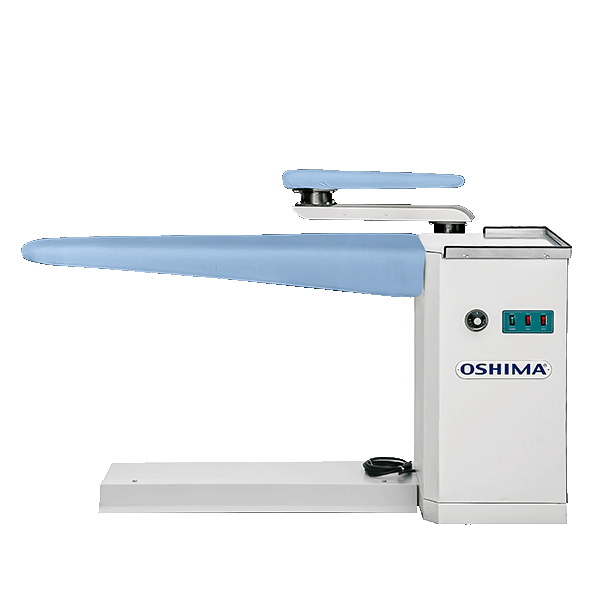

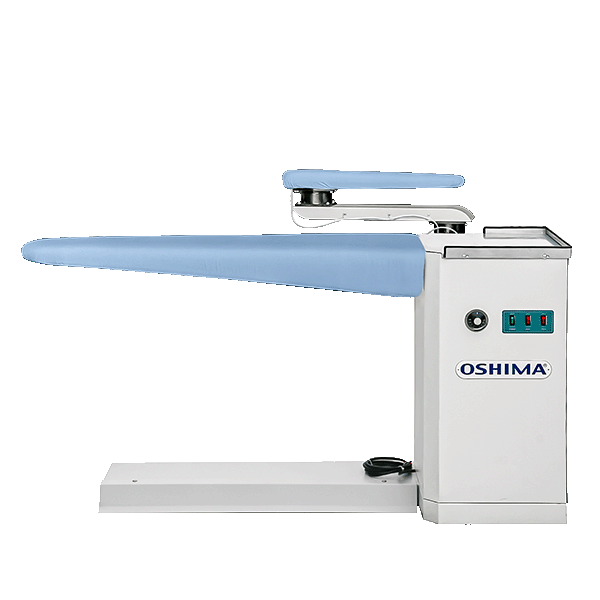

- Optional single buck by required size
- Optional heated table surface or heated table with buck
Description

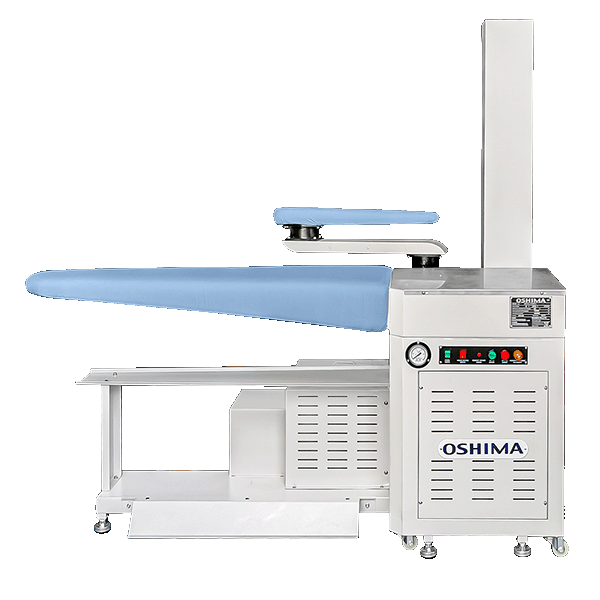

OPB-780 is designed for detailed garment pressing on shirts, trousers, coats, suits, dresses, skirts, and formalwear. The pointed table shape is suitable for garment areas that are difficult to press on a regular flat table. Optional configurations include I – Single buck, IA – Singel buck table with heater, S Series (Equip with electric steam boiler): S – Without buck, SI – Single buck, SIA – Single buck, buck with heater.
Specifications
| Model | OPB-780I | OPB-780IA | OPB-780IAB | OPB-780SI |
|---|---|---|---|---|
| Power supply | 1P / 220V, 3P / 380V | 1P / 220V, 3P / 380V | 1P / 220V, 3P / 380V | 1P / 220V, 3P / 380V |
| Motor (kW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Heater (kW) | - | 0.8 | 1.05 | 6 |
| Pump ｐower (kW) | - | - | - | 0.37 |
| Steam (kg/h) | - | - | - | 9 |
| Steam pressure (bar) | - | - | - | 4-5 |
| Ｂuck size (mm) | 640x160x100 | 640x160x100 | 640x160x100 | 640x160x100 |
| Table size (mm) | 1200 × 400 | 1200 × 400 | 1200 × 400 | 1200x360 |
| Dimensions L × W × H (mm) | 1700 × 850 × 1100 | 1700 × 850 × 1100 | 1700 × 850 × 1100 | 1750x800x1675 |
| Packing volume L × W × H (mm) | 1770 × 620 × 1030 | 1770 × 620 × 1030 | 1770 × 620 × 1030 | 1930x980x1070 |
| N.W / G.W (kg) | 177 / 207 | 177 / 207 | 177 / 207 | 185/220 |
*Design and specifications subject to change without prior notice.
