Food Quality Inspection Equipment

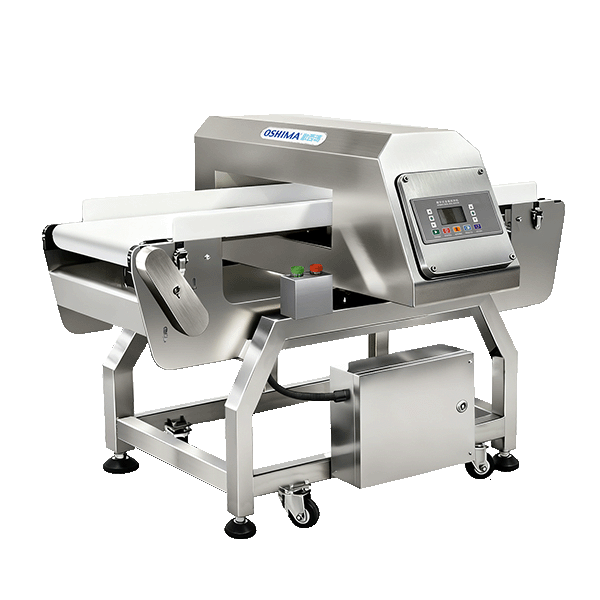

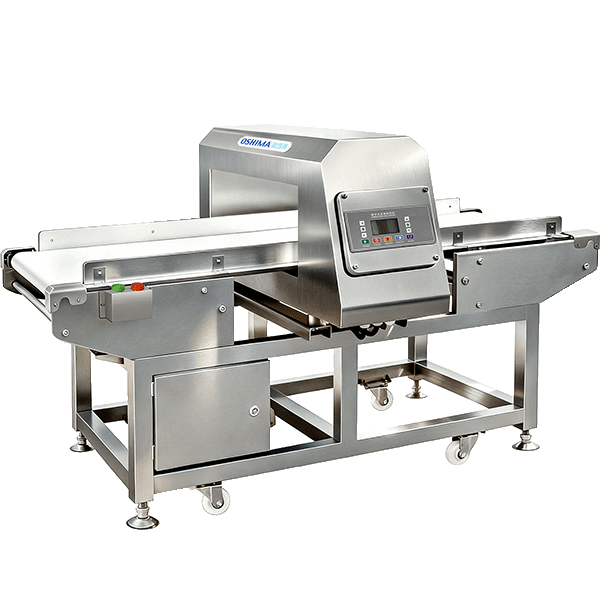

Food Metal Detector Machine MD-400 / 600
- Features
- Inline conveyor metal detection
- For packaged and unpackaged food
- Real-time metal contamination detection
- Multiple product parameter settings
- Optional rejection, alarm and conveyor stop
- 400 mm or 600 mm detection channel
- Conveyor speed up to 25 m/min
- Food-grade materials for production applications
Description
The MD-400 / MD-600 is an inline food metal detector machine designed to detect metal contaminants in packaged or unpackaged products during food production and packaging. It can be installed at different stages of the production line according to the product, packaging format and inspection requirements.
The system supports multiple product parameter settings for different products running on the same line. When metal contamination is detected, the machine can be configured with rejection, alarm or conveyor stop functions to prevent affected products from continuing downstream.
MD-400 and MD-600 provide 400 mm and 600 mm detection channel options respectively, with conveyor speeds up to 25 m/min. The system can be used as a standalone inspection point or together with checkweighing, weighing and labeling, X-ray inspection and other food quality-control equipment where additional inspection stages are required.
Specifications
| Model | MD-400 | MD-600 |
|---|---|---|
| Power Supply | 1P AC 220V | 1P AC 220V |
| Motor Power (W) | 220 | 280 |
| Detection Height (mm) | 100 / 150 / 200 / 250 / 300 | 100 / 150 / 200 / 250 / 300 |
| Empty Machine Detection Accuracy ΦFe (mm) |
0.8 / 1.0 / 1.5 / 2.0 / 2.5 | 0.8 / 1.0 / 1.5 / 2.0 / 2.5 |
| Empty Machine Detection Accuracy SUS (mm) |
1.5 / 2.0 / 2.5 / 3.0 / 3.5 | 1.5 / 2.0 / 2.5 / 3.0 / 3.5 |
| Weight Capacity (kg) | 10 | 30 |
| Detection Channel Width (mm) | 400 | 600 |
| Belt Width (mm) | 370 | 570 |
| Belt Speed (m/min) | 25 | 25 |
| Height from Ground to Conveyor (mm) | 750 ± 50 | 750 ± 50 |
| Belt Direction | Left to right | Left to right |
| Alarm Method | Conveyor stop and buzzer | Conveyor stop and buzzer |
| IP Rating | IP54 | IP54 |
| Operating Environment | Temperature 0–40°C; relative humidity 30%–85% | Temperature 0–40°C; relative humidity 30%–85% |
| Machine Dimensions L × W × H (mm) |
1218 × 880 × 950 ± 50 | 1500 × 1066 × 1100 ± 50 |
| Power Supply | 1P AC 220V |
|---|---|
| Motor Power | 220 W |
| Detection Height | 100 / 150 / 200 / 250 / 300 mm |
| ΦFe Detection Accuracy | 0.8 / 1.0 / 1.5 / 2.0 / 2.5 mm |
| SUS Detection Accuracy | 1.5 / 2.0 / 2.5 / 3.0 / 3.5 mm |
| Weight Capacity | 10 kg |
| Detection Channel Width | 400 mm |
| Belt Width | 370 mm |
| Belt Speed | 25 m/min |
| Height from Ground to Conveyor | 750 ± 50 mm |
| Belt Direction | Left to right |
| Alarm Method | Conveyor stop and buzzer |
| IP Rating | IP54 |
| Operating Environment | Temperature 0–40°C; relative humidity 30%–85% |
| Machine Dimensions | 1218 × 880 × 950 ± 50 mm |
| Power Supply | 1P AC 220V |
|---|---|
| Motor Power | 280 W |
| Detection Height | 100 / 150 / 200 / 250 / 300 mm |
| ΦFe Detection Accuracy | 0.8 / 1.0 / 1.5 / 2.0 / 2.5 mm |
| SUS Detection Accuracy | 1.5 / 2.0 / 2.5 / 3.0 / 3.5 mm |
| Weight Capacity | 30 kg |
| Detection Channel Width | 600 mm |
| Belt Width | 570 mm |
| Belt Speed | 25 m/min |
| Height from Ground to Conveyor | 750 ± 50 mm |
| Belt Direction | Left to right |
| Alarm Method | Conveyor stop and buzzer |
| IP Rating | IP54 |
| Operating Environment | Temperature 0–40°C; relative humidity 30%–85% |
| Machine Dimensions | 1500 × 1066 × 1100 ± 50 mm |
