Food Quality Control Applications

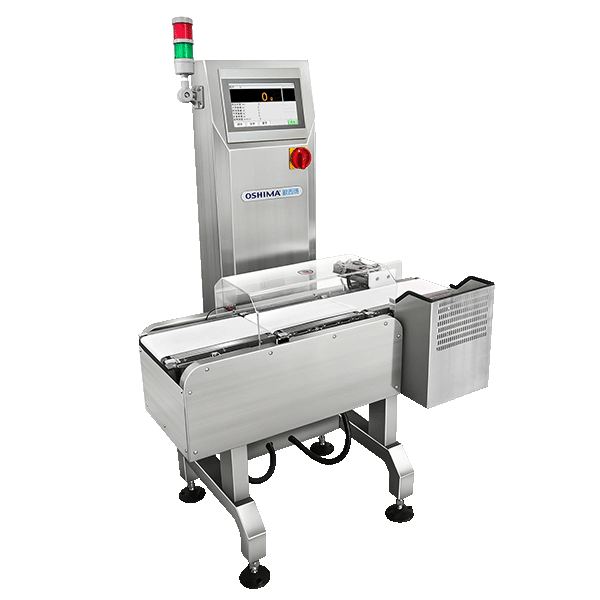

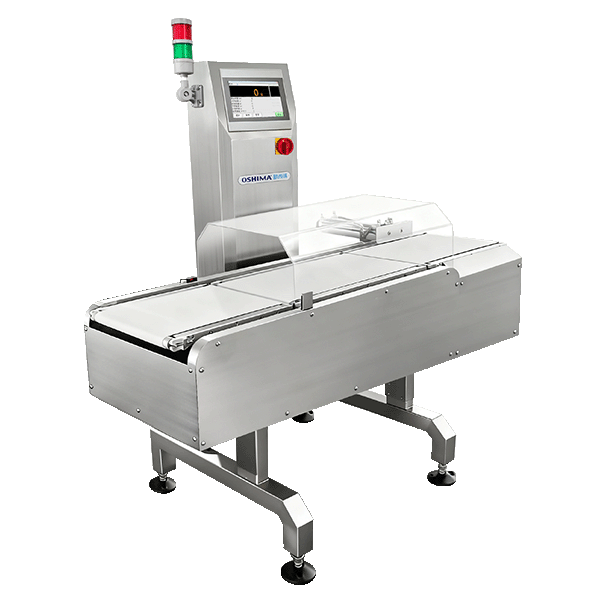

Food Checkweigher CW-150/220/300
- Features
- Inline checkweighing for food packaging lines
- Accuracy up to ±0.3 g
- Supports high-speed continuous weighing
- Identifies underweight and overweight products
- Stainless steel structure for easier cleaning and maintenance
- Optional scanner and automatic inkjet coder
Description
CW-150 / 220 / 300 is suitable for food packaging lines where product weight needs to be checked against a set range. It is commonly used after packaging and before labeling, cartoning, or shipment. For food production lines that need to control net weight, avoid underweight products, or reduce overfilling, the checkweigher can serve as the weight confirmation point in the production and packaging process. Food-contact materials comply with EC 1935/2004, EU 10/2011, and FDA-related requirements, making the machine suitable for food processing and packaging environments. This series can be equipped with an optional scanner and automatic inkjet coder. The scanner can be used to read barcodes or product data, while the inkjet coder can mark date, batch number, expiry date, or traceability code.
Specifications
| Model | CW-150 | CW-220 | CW-300 |
|---|---|---|---|
| Power Supply | 1P / 220V 50Hz | 1P / 220V 50Hz | 1P / 220V 50Hz |
| Motor Power (W) | 120 | 140 | 280 |
| Belt Width (mm) | 150 | 220 | 300 |
| Weighing Range (g) | 3–300 | 3–1200 | 5–3000 |
| IP Rating | IP54 | IP54 | IP54 |
| Working Temperature (°C) | Below 40 | Below 40 | Below 40 |
| Maximum Humidity (%) | 85 | 85 | 85 |
| Belt Speed (m/min) | 5–85 | 5–85 | 5–60 |
| Maximum Speed (packages/min) | 130 | 120 | 80 |
| Product Length Limit (mm) | 180 | 250 | 330 |
| Maximum Accuracy (g) | ±0.3 | ±0.3 | ±0.5 |
| Machine Dimensions L × W × H (mm) |
1050 × 711 × 1550 | 1150 × 810 × 1550 | 1500 × 741 × 1550 |
| N.W. (kg) | 80 | 95 | 110 |
| Power Supply | 1P / 220V 50Hz |
|---|---|
| Motor Power | 120 W |
| Belt Width | 150 mm |
| Weighing Range | 3–300 g |
| IP Rating | IP54 |
| Working Temperature | Below 40°C |
| Maximum Humidity | 85% |
| Belt Speed | 5–85 m/min |
| Maximum Speed | 130 packages/min |
| Product Length Limit | 180 mm |
| Maximum Accuracy | ±0.3 g |
| Machine Dimensions | 1050 × 711 × 1550 mm |
| N.W. | 80 kg |
| Power Supply | 1P / 220V 50Hz |
|---|---|
| Motor Power | 140 W |
| Belt Width | 220 mm |
| Weighing Range | 3–1200 g |
| IP Rating | IP54 |
| Working Temperature | Below 40°C |
| Maximum Humidity | 85% |
| Belt Speed | 5–85 m/min |
| Maximum Speed | 120 packages/min |
| Product Length Limit | 250 mm |
| Maximum Accuracy | ±0.3 g |
| Machine Dimensions | 1150 × 810 × 1550 mm |
| N.W. | 95 kg |
| Power Supply | 1P / 220V 50Hz |
|---|---|
| Motor Power | 280 W |
| Belt Width | 300 mm |
| Weighing Range | 5–3000 g |
| IP Rating | IP54 |
| Working Temperature | Below 40°C |
| Maximum Humidity | 85% |
| Belt Speed | 5–60 m/min |
| Maximum Speed | 80 packages/min |
| Product Length Limit | 330 mm |
| Maximum Accuracy | ±0.5 g |
| Machine Dimensions | 1500 × 741 × 1550 mm |
| N.W. | 110 kg |
