Fabric Spreading Machines
Tubular Knit Fabric Spreading Machine T5
- Features
- Designed for tubular knit fabrics
- Suitable for T-shirts, underwear, and sportswear production
- Helps control fabric twisting and uneven tension
- Automatic edge alignment
- Adjustable tension for stable fabric handling
- Touchscreen operation with multilingual display
- Simple setup with low maintenance needs
Description

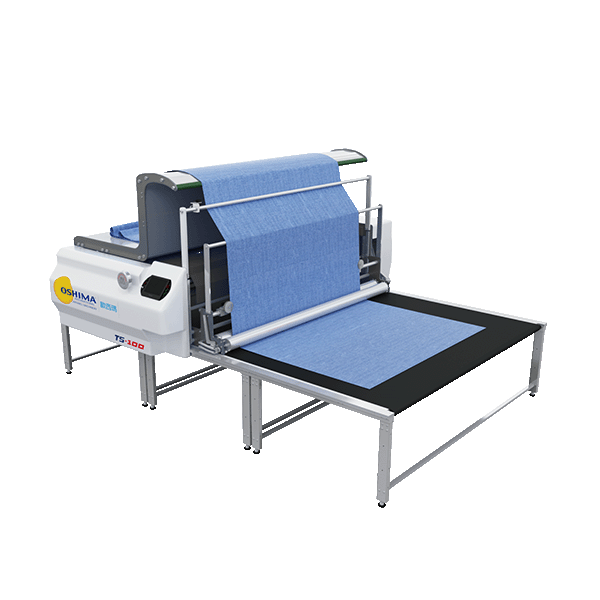

T5 is a fabric spreading machine designed specifically for cotton tubular knit fabrics used in T-shirts, underwear, sportswear and other garments made from tubular materials.
Unlike open-width fabric, tubular knit fabric remains in a continuous tube structure. During spreading, the material needs to be handled with controlled tension while minimizing twisting before cutting. T5 is designed to keep tubular fabric aligned and evenly layered during spreading, with adjustable tension according to the fabric condition.
The machine uses zigzag face-to-face spreading and is available in two sizes. T5-100 handles tubular fabric widths from approximately 330 to 1000 mm, while T5-120 extends the maximum width to 1200 mm. Both models support fabric rolls up to 85 kg and a standard spreading height of 220 mm.
T5 is intended specifically for cutting rooms processing tubular knit fabrics, which require a different spreading method from conventional open-width knitted or woven fabrics.
Specifications
| Specification | T5-100 | T5-120 |
|---|---|---|
| Voltage | 1P / 220V | 1P / 220V |
| Motor Power (kW) | 0.6 | 0.6 |
| Spreading Width (mm/inch) | 330–1000 mm / 13–39" | 330–1200 mm / 13–47" |
| Table Width (mm) | 1240 | 1440 |
| Fabric Roll Weight (kg) | 85 | 85 |
| Fabric Roll Diameter (mm) | — | — |
| Travel Speed (m/min) | 90 | 90 |
| Spreading Height (mm) | 220 | 220 |
| Spreading Method | Bidirectional Spreading | Bidirectional Spreading |
| Machine Dimensions L × W × H (mm) | 1660 × 1450 × 1200 | 1860 × 1450 × 1200 |
| Packing Dimensions L × W × H (mm) | 1960 × 1600 × 1400 | 2100 × 1600 × 1400 |
| Net / Gross Weight (kg) | 220 / 370 | 270 / 400 |
| Standard Fabric Support | 26", 32", 38", 44"Custom sizes available | 26", 32", 38", 44"Custom sizes available |
| Fabric Mode | Fabric Roll Mode | Fabric Roll Mode |
| Drive Rail | 12' SectionsConfiguration required | 12' SectionsConfiguration required |
*Specifications are subject to change without notice.
*Fabric roll weight and diameter limits may vary depending on the fabric type.
Frequently Asked Questions
Why does tubular knit fabric require a dedicated spreading machine?
Tubular knit fabric retains its continuous tube structure rather than being slit open into a flat fabric. Its folded edges, elasticity, and feeding requirements make its spreading process different from that of conventional open-width knitted and woven fabrics.
Can the T5 handle conventional open-width woven fabrics?
The T5 is primarily designed for tubular knit fabrics. For conventional open-width knitted or woven fabrics, consider the OSHIMA K5 automatic fabric spreading machine.
Is the T5 suitable for every type of seamless garment?
Not necessarily. Suitability depends on whether the production process uses tubular knit fabric, as well as the fabric structure and cutting requirements. Not all seamless garments require a tubular fabric spreading machine.
Find the Right T5 Configuration
To help us recommend a suitable model, please provide the tubular fabric type, flat-laid fabric width, roll weight and diameter, spreading length, and required number of layers.
