Fabric Fusing Machines for Garment & Interlining Bonding

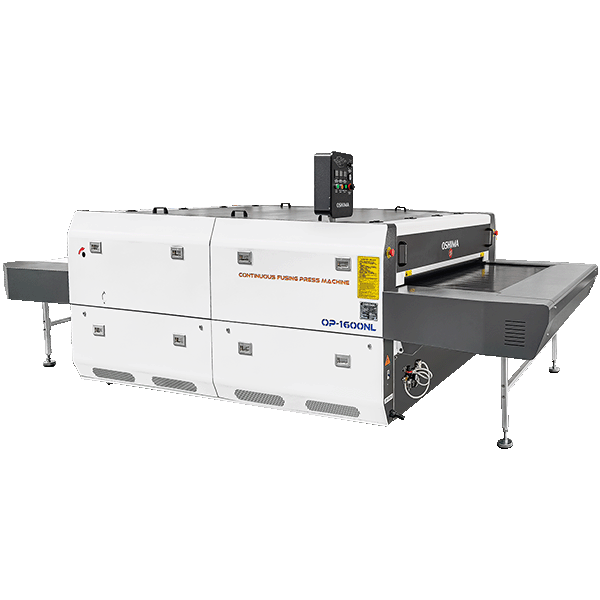

Continuous Fusing Machine OP-1200NL/1400NL/1600NL/1800NL
High-pressure continuous fusing for large-scale production.
- Features
- Designed for high-volume interlining fusing in large garment factories
- Maximum pressure up to 5 kg
- Uses seamless belt with motor-driven correction
- Preheating zone is 2–3 times longer than standard models
- Equipped with 18 heating sets
- Independent three-zone heating control
- Digital temperature control for easier adjustment
- Built-in monitoring for heating, belt correction, pressure, and machine status
- Vacuum cooling section for fused panel setting
Description
The OP-NL series is a large continuous fusing machine for high-volume garment production, with 1200–1800 mm working widths, an extended preheating zone and 18 heating sets. The machine uses oversized cylinder pressure and an extended preheating zone to prepare fabric and interlining before fusing. The 18 heating sets with independent three-zone control allow operators to adjust temperature according to different production requirements.This series uses a seamless belt with motor-driven correction. The standard configuration includes upper separator and lower scraper. Delivery and collecting rack are available as optional accessories.
Specifications
| Model | OP-1200NL | OP-1400NL | OP-1600NL | OP-1800NL |
|---|---|---|---|---|
| Power supply | 3P 220V / 380V | |||
| Motor (kW) | 0.44 | |||
| Heater (kW) | 50.4 | 50.4 | 71.4 | 71.4 |
| Temperature (℃) | Room temperature ~ 200 | |||
| Air Pressure (MPa) | 0 ~ 0.5 | |||
| Fusing Width (mm) | 1200 | 1400 | 1600 | 1800 |
| Fusing Time (s) | 7 ~ 34 | |||
| Dimensions L × W × H (mm) |
4680 × 1960 × 1490 | 4680 × 2160 × 1490 | 4680 × 2360 × 1490 | 4680 × 2560 × 1490 |
| Packaging Volume L × W × H (mm) |
3840 × 2100 × 1630 + 1210 × 1570 × 650 |
3840 × 2300 × 1630 + 1210 × 1570 × 650 |
4340 × 2500 × 1630 + 1210 × 1570 × 650 |
4340 × 2700 × 1630 + 1210 × 1570 × 650 |
| N.W / G.W (kg) | 1280 / 1360 | 1380 / 1460 | 1480 / 1560 | 1580 / 1660 |
OP-1200NL
| Power supply | 3P 220V / 380V |
|---|---|
| Motor (kW) | 0.44 |
| Heater (kW) | 50.4 |
| Temperature (℃) | Room temperature ~ 200 |
| Air Pressure (MPa) | 0 ~ 0.5 |
| Fusing Width (mm) | 1200 |
| Fusing Time (s) | 7 ~ 34 |
| Dimensions L × W × H (mm) |
4680 × 1960 × 1490 |
| Packaging Volume L × W × H (mm) |
3840 × 2100 × 1630 + 1210 × 1570 × 650 |
| N.W / G.W (kg) | 1280 / 1360 |
OP-1400NL
| Power supply | 3P 220V / 380V |
|---|---|
| Motor (kW) | 0.44 |
| Heater (kW) | 50.4 |
| Temperature (℃) | Room temperature ~ 200 |
| Air Pressure (MPa) | 0 ~ 0.5 |
| Fusing Width (mm) | 1400 |
| Fusing Time (s) | 7 ~ 34 |
| Dimensions L × W × H (mm) |
4680 × 2160 × 1490 |
| Packaging Volume L × W × H (mm) |
3840 × 2300 × 1630 + 1210 × 1570 × 650 |
| N.W / G.W (kg) | 1380 / 1460 |
OP-1600NL
| Power supply | 3P 220V / 380V |
|---|---|
| Motor (kW) | 0.44 |
| Heater (kW) | 71.4 |
| Temperature (℃) | Room temperature ~ 200 |
| Air Pressure (MPa) | 0 ~ 0.5 |
| Fusing Width (mm) | 1600 |
| Fusing Time (s) | 7 ~ 34 |
| Dimensions L × W × H (mm) |
4680 × 2360 × 1490 |
| Packaging Volume L × W × H (mm) |
4340 × 2500 × 1630 + 1210 × 1570 × 650 |
| N.W / G.W (kg) | 1480 / 1560 |
OP-1800NL
| Power supply | 3P 220V / 380V |
|---|---|
| Motor (kW) | 0.44 |
| Heater (kW) | 71.4 |
| Temperature (℃) | Room temperature ~ 200 |
| Air Pressure (MPa) | 0 ~ 0.5 |
| Fusing Width (mm) | 1800 |
| Fusing Time (s) | 7 ~ 34 |
| Dimensions L × W × H (mm) |
4680 × 2560 × 1490 |
| Packaging Volume L × W × H (mm) |
4340 × 2700 × 1630 + 1210 × 1570 × 650 |
| N.W / G.W (kg) | 1580 / 1660 |
*Design and specifications subject to change without prior notice.
