Fabric Cutting Machine
Straight Knife Cutting A-100U(DS)/100H
Straight knife cutting, built for layers.
- Features
- Manual straight knife cutting machine
- Suitable for single-layer and multi-layer fabric cutting
- Powerful motor for various fabric types
- Built-in automatic knife sharpening system
- Built-in lubrication system for smoother operation
- Standard accessories include plug, sanding bag, machine oil, oil bottle, and basic tools
Description

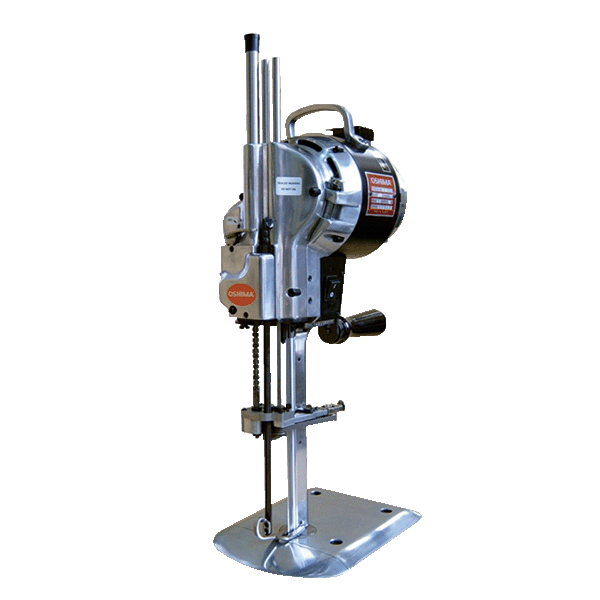

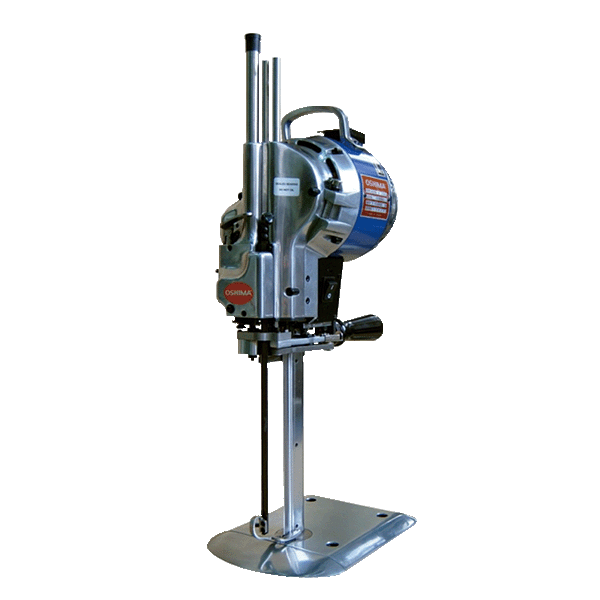

A-100U(DS) / A-100H is a straight knife electric cutter for daily fabric cutting in garment cutting rooms. The machine includes automatic sharpening and lubrication systems for blade maintenance during cutting. A-100U(DS) is the standard model for general cutting use. A-100H is the enhanced black series with higher blade speed for production sites that require faster cutting.
Specifications
| Model | A-100U / A-100DS | A-100H |
|---|---|---|
| Model | A-100U / A-100DS | A-100H |
| Power supply (V) | 1 Phase 100, 110/120, 200/240 3 Phase 220, 380, 415 (400/440) |
1 Phase 100, 110/120, 200/240 3 Phase 220, 380, 415 (400/440) |
| Motor (HP /W) | 1PH: 0.65HP (500W) 3PH: 0.95HP (700W) |
1PH: 0.95HP (700W) 3PH: 1.25HP (900W) |
| Speed 50Hz (rpm) | 2850 (A-100U) 1425 / 2850 (A-100DS) |
2850 |
| Speed 60Hz (rpm) | 3450 (A-100U) 1725 / 3450 (A-100DS) |
3450 |
| Stroke (inch / mm) | 1-1/2" or 38 | 1-1/2" or 38 |
| Blade size (inch) | 6", 7", 8", 9", 10", 11 1/2", 13" | 6", 7", 8", 9", 10", 11 1/2", 13" |
| Cutting height (inch) | Blade length minus 2" | Blade length minus 2" |
| N.W / G.W / Volumn | 16.50 / 20.00 kg / 3.80 cu-ft / carton | 16.50 / 20.00 kg / 3.80 cu-ft / carton |
| Special order | - | A-100HFS heavy-duty dual-speed model, black color |
*Design and specifications subject to change without prior notice.
