Fabric Cutting Machine

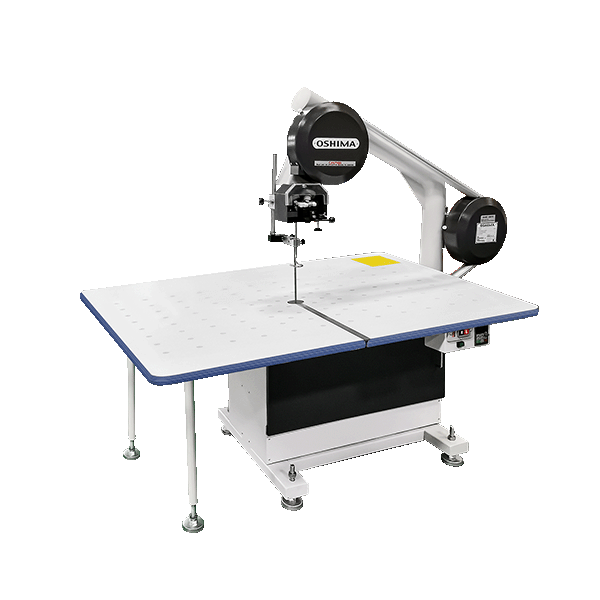

Band Knife Machine OB-700A/900A/1200A
Air-float cutting for smoother material handling.
- Features
- Air-float table design reduces material friction
- Suitable for fabric, leather, foam, and composite materials
- Designed for small-pattern and shaped-piece cutting
- Continuous loop blade for smooth cutting performance
- Automatic knife sharpening system
- Adjustable cutting speed for different materials
- Optional broken-blade protection function
Description
OB-700A / OB-900A / OB-1200A is a band knife cutting machine used for cutting small pieces and irregular-shaped components. The air-float worktable allows materials to move more smoothly across the table surface during cutting. It is suitable for flexible materials, larger pieces, and cutting tasks that require turning or detailed handling. The machine uses a continuous loop blade and automatic sharpening system for daily cutting operations in garment, furniture, leather, foam, and automotive interior applications.
Specifications
| Model | OB-700A | OB-900A | OB-1200A |
|---|---|---|---|
| Model | OB-700A | OB-900A | OB-1200A |
| Power supply | 1P / 220V | 1P / 220V | 1P / 220V |
| Motor (kW) | 0.75 | 0.75 | 0.75 |
| Table size (mm) | 1200 × 1500 | 1500 × 1800 | 1500 × 2400 |
| Cutting capacity (mm) | 180 | 180 | 200 |
| Arm length (mm) | 700 | 900 | 1200 |
| Speed control | Variable speed control | Variable speed control | Variable speed control |
| Knife size (mm) | 0.45 × 10 × 3500 | 0.45 × 10 × 3860 | 0.45 × 10 × 4560 |
| Dimensions L × W × H (mm) | 1950 × 1200 × 1620 | 2250 × 1500 × 1620 | 2850 × 1500 × 1730 |
| Packing volume L × W × H (mm) | 1560 × 840 × 1830 | 1950 × 840 × 1820 | 2530 × 840 × 1910 |
| N.W / G.W (kg) | 270 / 310 | 310 / 360 | 360 / 390 |
*Design and specifications subject to change without prior notice.
