Fabric Cutting Machine
Round Knife Cutting OB-90/90C/110
- Features
- Compact round knife cutting machine
- Suitable for small cutting tasks and sample cutting
- Cuts cotton, microfiber, and light to medium fabrics
- Powerful motor for stable cutting performance
- Automatic knife sharpening system
- Lightweight structure for easier operation
Description
OB-90 / OB-90C / OB-110 are compact round knife cutting machines for small garment parts, sampling and low-ply cutting. Their lightweight design allows operators to move the cutter directly around the material, making them suitable for everyday cutting of cotton, microfiber and light- to medium-weight fabrics.

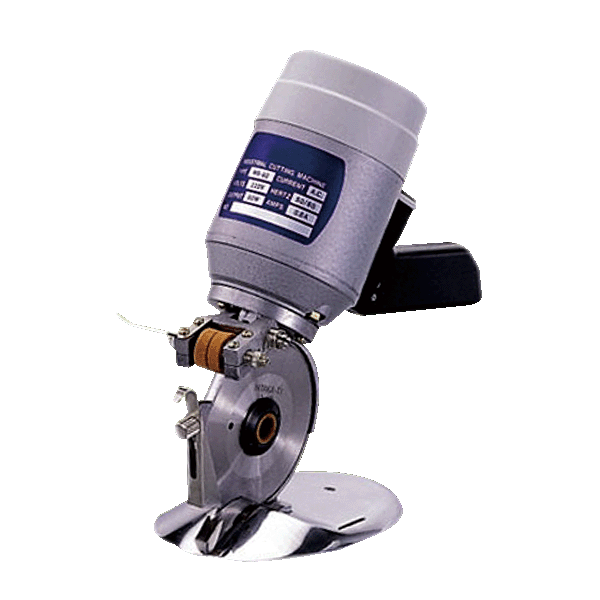

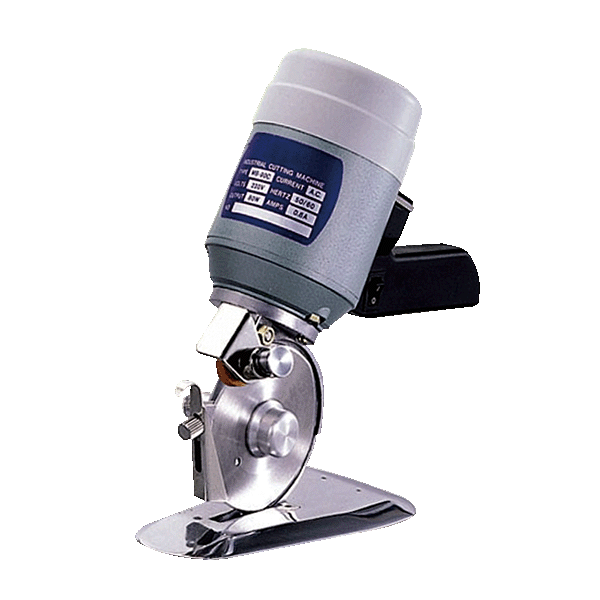

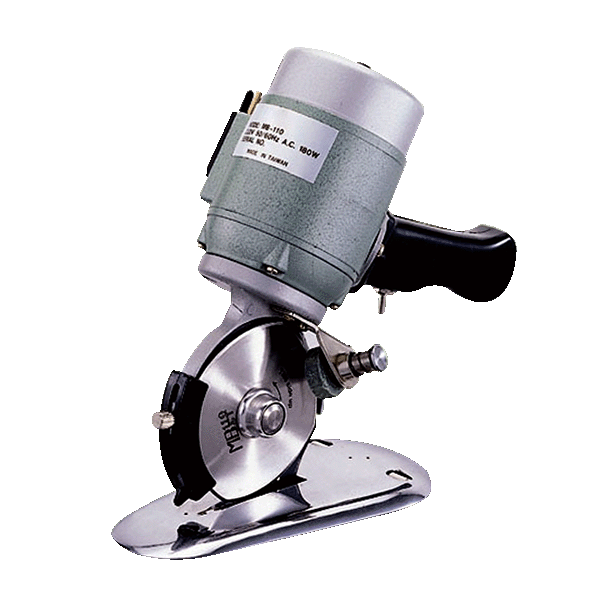

The three models differ mainly in blade design and cutting capacity. OB-90 uses a 90 mm round blade with double-side sharpening and can cut up to approximately 22 mm. OB-90C uses a 90 mm polygon blade with a bottom knife and provides up to approximately 24 mm cutting capacity. OB-110 uses a larger 110 mm blade and increases the cutting height to approximately 34 mm for thicker low-ply materials.
All three models include an automatic knife-sharpening system. The appropriate model can be selected according to lay thickness, blade configuration and the size of the cutting work.
Specifications
| Model | OB-90 | OB-90C | OB-110 |
|---|---|---|---|
| Model | OB-90 Lightweight model, no bottom knife, double-side sharpening |
OB-90C With bottom knife, single-side sharpening |
OB-110 |
| Rated motor (V) | 1 Phase: 100V, 110 / 120V, 220V / 240V | ||
| Blade size (mm / inch) | 90 mm / 3" round blade | 90 mm / 3" 6-sided blade | 110 mm / 4.25" 4-sided blade |
| Rated power (W / hp) | 150 / 0.20 | 150 / 0.20 | 180 / 0.24 |
| Cutting capacity (mm / inch) | 22 / 0.85" | 24 / 0.95" | 34 / 1.25" |
| Speed type | Single speed, standard | ||
| Base plate | Streamlined base plate with 2 rollers | Streamlined base plate with 2 rollers | Thin base with 4 rollers |
| Weight (kg) | 2.5 | 2.5 | 3.5 |
