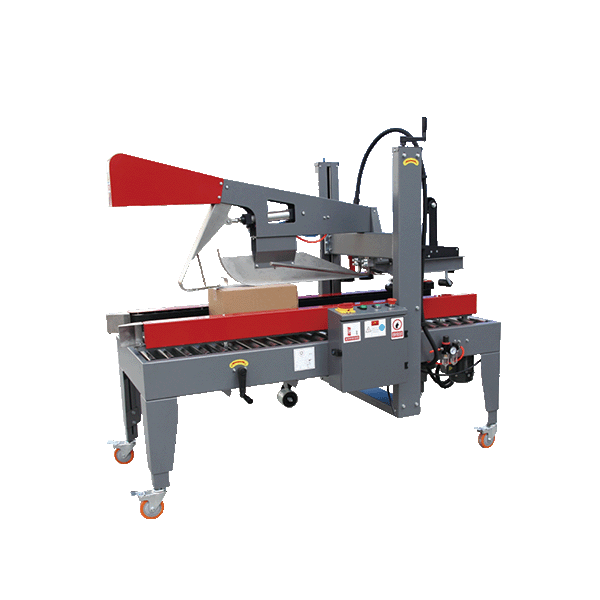

Same-Size Carton Flap Folding and Sealing OSZ-50
Same-size carton top sealing in 6 seconds.
- Features
- Suitable for same-size corrugated cartons
- Completes top flap folding and tape sealing in approximately 6 seconds
- Side belt drive with dual motors
- Pneumatic swing arm for carton flap folding
- Guide rails for carton alignment during sealing
- Suitable for the back end of fixed-size carton packaging lines
Description
OSZ-50 is suitable for the stage after products have been placed into same-size cartons. It is used for top flap folding and tape sealing, making it suitable for production lines where fixed carton sizes are used for repeated packing work. If OSZ-K02 is used for carton erecting and bottom sealing at the front end, OSZ-50 can be placed after packing to close and seal the top of the carton. After sealing, the line can connect with barcode reading, RFID, or automatic sorting equipment for shipment data confirmation and routing.
Specifications
| Model | OSZ-50 |
|---|---|
| Power Supply | 1P 220V / 380V 50/60Hz |
| Power Consumption (W) | 400 |
| Conveyor Speed (m/min) | 17.5 |
| Working Height (mm) | 580–780 adjustable |
| Tape Size (mm) | W48 / 60 / 75, one size selected for use |
| Applicable Carton Size L × W × H (mm) |
L400–800 × W300–600 × H200–600 |
| Machine Dimensions L × W × H (mm) |
1770 × 850 × 1520 |
| N.W. (kg) | 250 |
| Other | This machine must be used with an air compressor. |
Model: OSZ-50
| Power Supply | 1P 220V / 380V 50/60Hz |
|---|---|
| Power Consumption | 400 W |
| Conveyor Speed | 17.5 m/min |
| Working Height | 580–780 mm adjustable |
| Tape Size | W48 / 60 / 75 mm, one size selected for use |
| Applicable Carton Size | L400–800 × W300–600 × H200–600 mm |
| Machine Dimensions | 1770 × 850 × 1520 mm |
| N.W. | 250 kg |
| Other | This machine must be used with an air compressor. |
*Design and specifications subject to change without prior notice.
