Heat Press & Decoration Machines

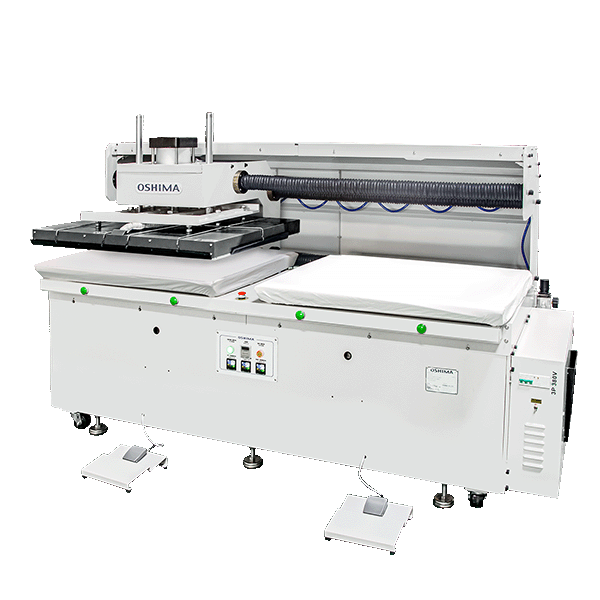

Heat Press OP-38AII/54AII/105AII/108AII
Sliding heat transfer for large garment panels.
- Features
- Dual-station sliding heat transfer press machine
- Suitable for down jackets, garment panels, labels, and graphic transfers
- Independent pneumatic cylinder system for even pressure distribution
- Upper platen with three independently adjustable heating zones
- Lower platen with cushioning function for smoother movement
- Adjustable pressure, temperature, and time settings
- Automatic temperature control
- Emergency stop button and two-hand control switch
- Production capacity of approximately 180–230 pieces per hour
- Optional far-infrared positioning and vacuum function
Description
OP-38AII / 54AII / 105AII / 108AII is a dual-station sliding heat transfer press machine designed for garment panel transfer, down jacket applications, heat labels, and graphic transfers. The machine uses an independent pneumatic cylinder system to distribute pressure evenly during pressing. The upper platen includes three separately adjustable heating zones, allowing operators to adjust heating conditions according to transfer size and material requirements. The standard model does not include positioning. Optional configurations include far-infrared positioning, vacuum function, or both.
Specifications
| Model | OP-38AII | OP-54AII | OP-105AII | OP-108AII |
|---|---|---|---|---|
| Power Supply | 1P / 220V | 1P / 220V | 3P / 380V | 3P / 380V |
| Heater (kW) | 2.1 | 4.2 | 6 | 16.5 |
| Air Pressure (MPa) | 0.3 ~ 0.5 | |||
| Working Size (mm) | 380 × 380 × 2 Unit | 500 × 450 × 2 Unit | 1000 × 500 × 2 Unit | 1000 × 800 × 2 Unit |
| Temperature (℃) | Room Temperature ~ 200 | |||
| Dimensions L × W × H (mm) |
1200 × 790 × 1400 | 1200 × 790 × 1400 | 2500 × 1110 × 1360 | 2500 × 1110 × 1360 |
| Packaging Volume L × W × H (mm) |
1340 × 930 × 1540 | 1340 × 930 × 1540 | 2640 × 1250 × 1500 | 2640 × 1250 × 1500 |
| N.W. / G.W. (kg) | 343 / 363 | 365 / 390 | 1100 / 1200 | 1150 / 1250 |
OP-38AII
| Power Supply | 1P / 220V |
|---|---|
| Heater (kW) | 2.1 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Working Size (mm) | 380 × 380 × 2 Unit |
| Temperature (℃) | Room Temperature ~ 200 |
| Dimensions L × W × H (mm) |
1200 × 790 × 1400 |
| Packaging Volume L × W × H (mm) |
1340 × 930 × 1540 |
| N.W. / G.W. (kg) | 343 / 363 |
OP-54AII
| Power Supply | 1P / 220V |
|---|---|
| Heater (kW) | 4.2 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Working Size (mm) | 500 × 450 × 2 Unit |
| Temperature (℃) | Room Temperature ~ 200 |
| Dimensions L × W × H (mm) |
1200 × 790 × 1400 |
| Packaging Volume L × W × H (mm) |
1340 × 930 × 1540 |
| N.W. / G.W. (kg) | 365 / 390 |
OP-105AII
| Power Supply | 3P / 380V |
|---|---|
| Heater (kW) | 6 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Working Size (mm) | 1000 × 500 × 2 Unit |
| Temperature (℃) | Room Temperature ~ 200 |
| Dimensions L × W × H (mm) |
2500 × 1110 × 1360 |
| Packaging Volume L × W × H (mm) |
2640 × 1250 × 1500 |
| N.W. / G.W. (kg) | 1100 / 1200 |
OP-108AII
| Power Supply | 3P / 380V |
|---|---|
| Heater (kW) | 16.5 |
| Air Pressure (MPa) | 0.3 ~ 0.5 |
| Working Size (mm) | 1000 × 800 × 2 Unit |
| Temperature (℃) | Room Temperature ~ 200 |
| Dimensions L × W × H (mm) |
2500 × 1110 × 1360 |
| Packaging Volume L × W × H (mm) |
2640 × 1250 × 1500 |
| N.W. / G.W. (kg) | 1150 / 1250 |
*Design and specifications subject to change without prior notice.
