Heat Press & Decoration Machines

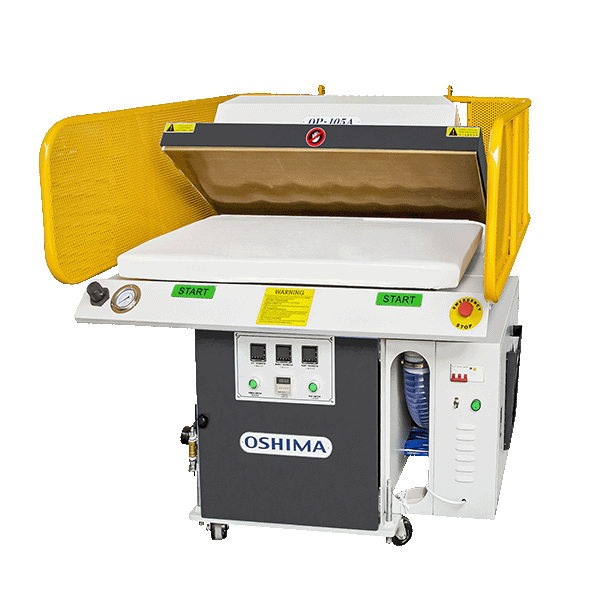

Flatbed Heat Press Machine OP-105A/108A
Flatbed heat press machine for large garment panels, down jackets, and fabric bonding.
- Features
- Suitable for large garment panel pressing
- Designed for down jackets, shirts, trousers, and fabric bonding
- Flatbed pressing structure
- Dual pressing mode
- Stepless pressure adjustment
- Upper platen with three independently adjustable heating zones
- Production capacity of approximately 180–230 pieces per hour
- Optional far-infrared positioning and vacuum function
Description
OP-105A / OP-108A is suitable for large garment panels, down jackets, and fabric heat bonding. Compared with the OP-380A series, it is more focused on flatbed pressing and fabric bonding applications where stable pressure and zone heating are required.
Specifications
| Model | OP-105A | OP-108A |
|---|---|---|
| Power Supply | 3P / 380V | |
| Heater (kW) | 6 | 16.5 |
| Air Pressure (MPa) | 0.5 | |
| Working Size (mm) | 1000 × 500 | 1000 × 800 |
| Current (A) | 25 | 40 |
| Temperature Range (℃) | Room Temperature ~ 200 | |
| Machine Dimensions L × W × H (mm) |
1600 × 1330 × 1260 | 1600 × 1330 × 1500 |
| Packaging Volume L × W × H (mm) |
1620 × 1420 × 1440 | 1620 × 1420 × 1680 |
| N.W. / G.W. (kg) | 500 / 650 | 720 / 870 |
OP-105A
| Power Supply | 3P / 380V |
|---|---|
| Heater (kW) | 6 |
| Air Pressure (MPa) | 0.5 |
| Working Size (mm) | 1000 × 500 |
| Current (A) | 25 |
| Temperature Range (℃) | Room Temperature ~ 200 |
| Machine Dimensions L × W × H (mm) |
1600 × 1330 × 1260 |
| Packaging Volume L × W × H (mm) |
1620 × 1420 × 1440 |
| N.W. / G.W. (kg) | 500 / 650 |
OP-108A
| Power Supply | 3P / 380V |
|---|---|
| Heater (kW) | 16.5 |
| Air Pressure (MPa) | 0.5 |
| Working Size (mm) | 1000 × 800 |
| Current (A) | 40 |
| Temperature Range (℃) | Room Temperature ~ 200 |
| Machine Dimensions L × W × H (mm) |
1600 × 1330 × 1500 |
| Packaging Volume L × W × H (mm) |
1620 × 1420 × 1680 |
| N.W. / G.W. (kg) | 720 / 870 |
*Design and specifications subject to change without prior notice.
