Fusing & Bonding Machines
Rotary Fusing Press OP-5288/5388
Rotary fusing for faster garment production.
- Features
- Rotary fusing press machine for garment interlining bonding

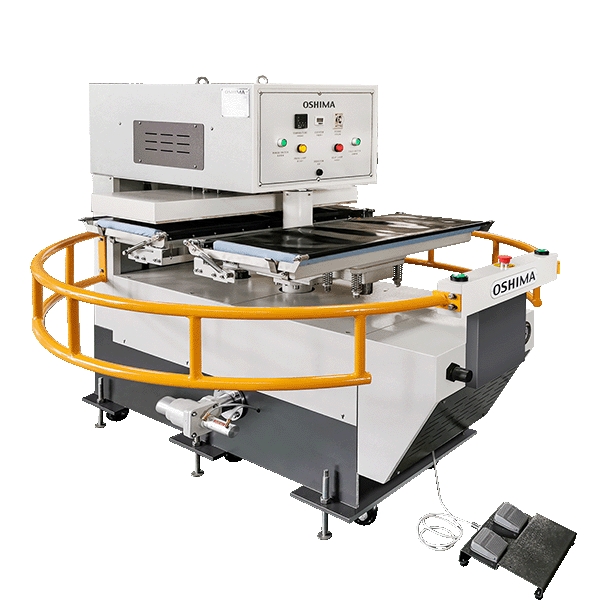

- OP-5288 with dual-station rotary design

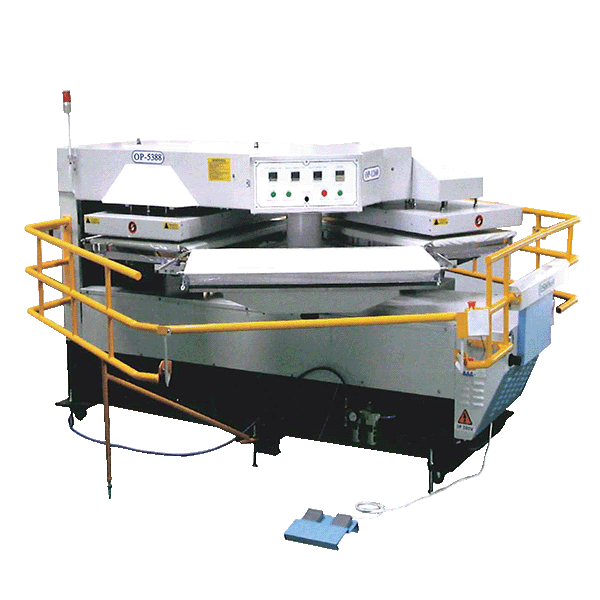

- OP-5388 with three-station rotary design
- Allows loading and pressing to run in sequence
- Adjustable pressure, temperature, and pressing time
- Suitable for medium to high-volume garment production
- Two-hand start operation for safer use
- Optional far-infrared positioning
Description
OP-5288 / OP-5388 is designed for interlining fusing in garment production. The rotary platen structure allows operators to load fabric and interlining while another station is pressing. OP-5288 uses a dual-station rotary layout, while OP-5388 uses a three-station rotary layout for higher production rhythm. Pressure, temperature, and pressing time can be adjusted according to fabric and interlining requirements. The standard model does not include positioning. Far-infrared positioning is available as an option.
Specifications
| Model | OP-5288 | OP-5388 |
|---|---|---|
| Power Supply | 3P / 380V | |
| Heater (kW) | 6.6 | |
| Air Pressure (MPa) | 0.5 | |
| Working Size (mm) | 320 × 900 | 370 × 800 |
| Temperature (℃) | Room Temperature ~ 200 | |
| Dimensions L × W × H (mm) |
1590 × 1760 × 1580 | 2020 × 1690 × 1450 |
| Packaging Volume L × W × H (mm) |
1660 × 1160 × 1710 | 2200 × 1840 × 1530 |
| N.W. / G.W. (kg) | 780 / 850 | 910 / 1080 |
OP-5288
| Power Supply | 3P / 380V |
|---|---|
| Heater (kW) | 6.6 |
| Air Pressure (MPa) | 0.5 |
| Working Size (mm) | 320 × 900 |
| Temperature (℃) | Room Temperature ~ 200 |
| Dimensions L × W × H (mm) |
1590 × 1760 × 1580 |
| Packaging Volume L × W × H (mm) |
1660 × 1160 × 1710 |
| N.W. / G.W. (kg) | 780 / 850 |
OP-5388
| Power Supply | 3P / 380V |
|---|---|
| Heater (kW) | 6.6 |
| Air Pressure (MPa) | 0.5 |
| Working Size (mm) | 370 × 800 |
| Temperature (℃) | Room Temperature ~ 200 |
| Dimensions L × W × H (mm) |
2020 × 1690 × 1450 |
| Packaging Volume L × W × H (mm) |
2200 × 1840 × 1530 |
| N.W. / G.W. (kg) | 910 / 1080 |
*Design and specifications subject to change without prior notice.
