Seamless & Ultrasonic Machines
Hot Air Seam Sealing Machine OP-702HAS/703
Waterproof seam taping for functional garments.
- Features
- Designed for waterproof seam taping applications
- Suitable for medical protective clothing, rainwear, swimwear, and outdoor garments
- Uses hot air to activate thermoplastic seam tape
- Supports 4–28 mm seam tape width
- Applicable to elastic fabrics and functional materials
- Digital tape control system
- Differential speed adjustment
- Automatic pattern calculation function
- Digital air pressure display
Description
OP-702HAS / OP-703 is designed for waterproof seam taping in functional garment production. The machine uses hot air to activate thermoplastic seam tape and apply it over stitched or joined areas. It is suitable for garment processes that require waterproofing, protection, or seam reinforcement. The machine supports 4–28 mm tape width and can be used with elastic fabrics and various functional materials. This series can be applied to medical protective clothing, rainwear, swimwear, and outdoor garments. Digital tape control, differential speed adjustment, and automatic pattern calculation help operators set processing conditions based on seam shape, tape material, and fabric type.
Specifications
| Model | OP-702HAS | OP-703 |
|---|---|---|
| Voltage | AC 220V 50/60Hz, 1Φ | 1P 220V |
| Heater Power (kW) | 3.6 | 0.8 |
| Compressed Air (MPa) | > 0.4 | 0.3 ~ 0.5 |
| Maximum Sealing Speed (ft/min) | 80 | 60 |
| Nozzle Width (mm) | 22 | - |
| Upper Roller Width (mm) | 25.4 | - |
| Lower Roller Width (mm) | 31 | - |
| Optional Roller Width (mm) | 10 ~ 31 | - |
| Dimensions L × W × H (mm) |
1200 × 750 × 1700 | 1000 × 500 × 1800 |
| N.W. (kg) | 130 | 78 |

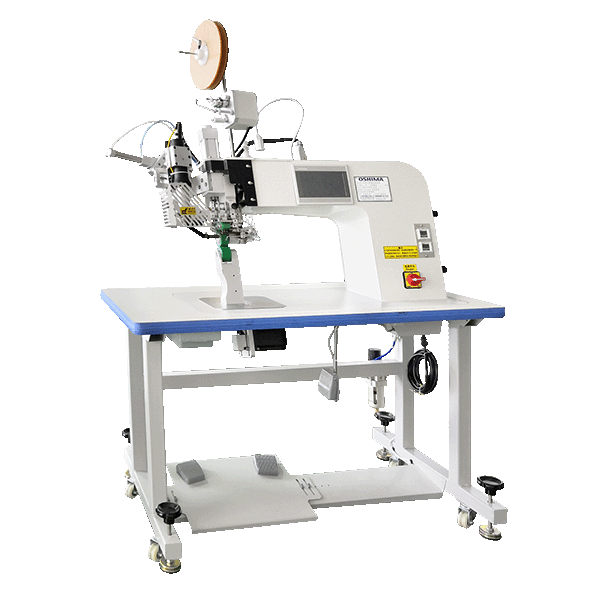

OP-702HAS
| Voltage | AC 220V 50/60Hz, 1Φ |
|---|---|
| Heater Power (kW) | 3.6 |
| Compressed Air (MPa) | > 0.4 |
| Maximum Sealing Speed (ft/min) | 80 |
| Nozzle Width (mm) | 22 |
| Upper Roller Width (mm) | 25.4 |
| Lower Roller Width (mm) | 31 |
| Optional Roller Width (mm) | 10 ~ 31 |
| Dimensions L × W × H (mm) |
1200 × 750 × 1700 |
| N.W. (kg) | 130 |

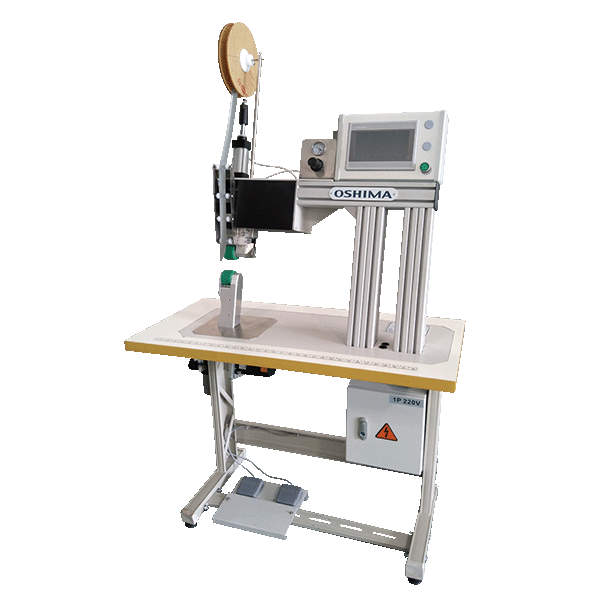

OP-703
| Voltage | 1P 220V |
|---|---|
| Heater Power (kW) | 0.8 |
| Compressed Air (MPa) | 0.3 ~ 0.5 |
| Maximum Sealing Speed (ft/min) | 60 |
| Nozzle Width (mm) | - |
| Upper Roller Width (mm) | - |
| Lower Roller Width (mm) | - |
| Optional Roller Width (mm) | - |
| Dimensions L × W × H (mm) |
1000 × 500 × 1800 |
| N.W. (kg) | 78 |
*Design and specifications subject to change without prior notice.
